Installation Procedure
IMPORTANT:
Inspect the sensor O-ring for the following conditions:
- Any wear
- Any cracks
- Any leakage
Replace the O-ring if necessary. Lubricate the new 0-ring with engine oil before installation.

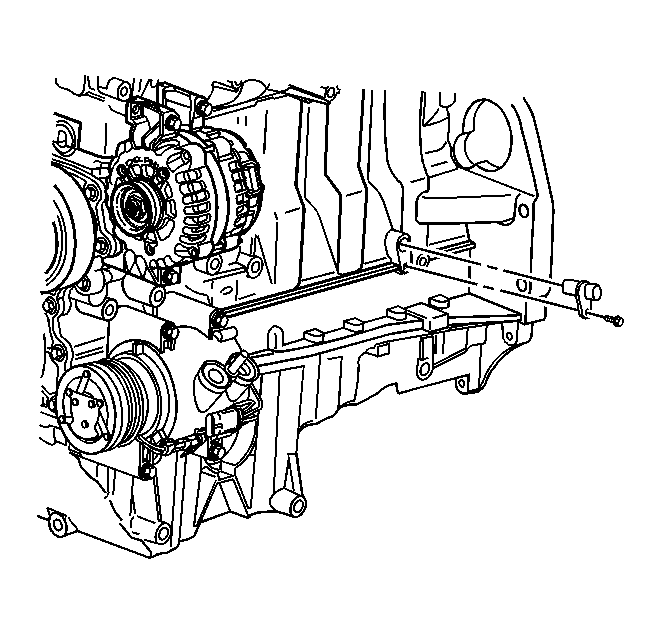

- Install the CKP sensor into the engine block.
Tighten: Tighten the bolt to 10 N.m (89 lb in).
- Install the CKP sensor retaining bolt.
- Connect the CKP sensor harness connector.
- Lower the vehicle.
- Perform the CKP System Variation Learn Procedure .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
