Removal Procedure

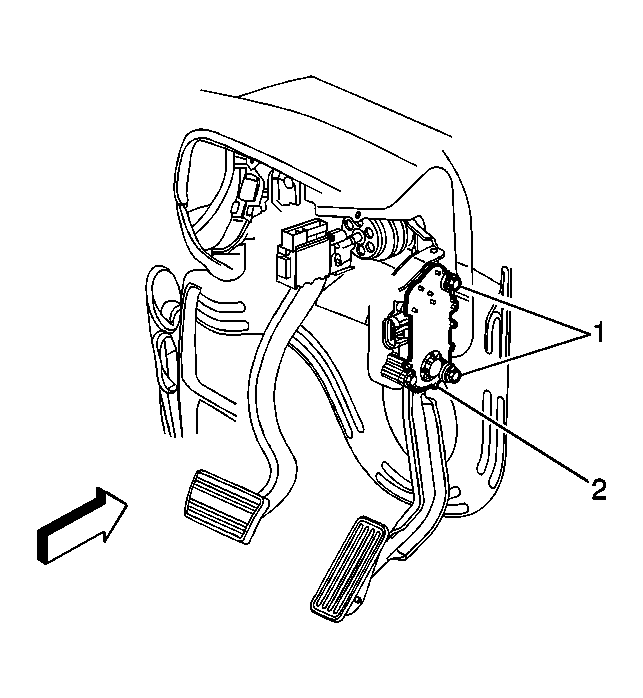

    Fig 1: Removing/Installing APP Sensor
    GM742494Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the accelerator pedal position (APP) sensor electrical connector.
  2. Remove the APP sensor retaining fasteners.
  3. Remove the APP sensor (2) from the vehicle.
