Fuel Sender Assembly

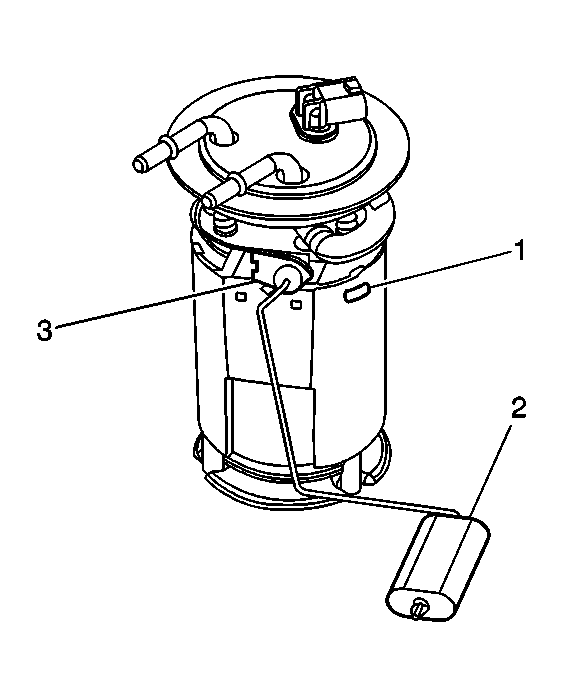

Fig 1: Identifying Fuel Tank Module

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fuel pump (1)
• The float (2)
• The fuel level sensor (3)
