Transfer Case Control Component Views

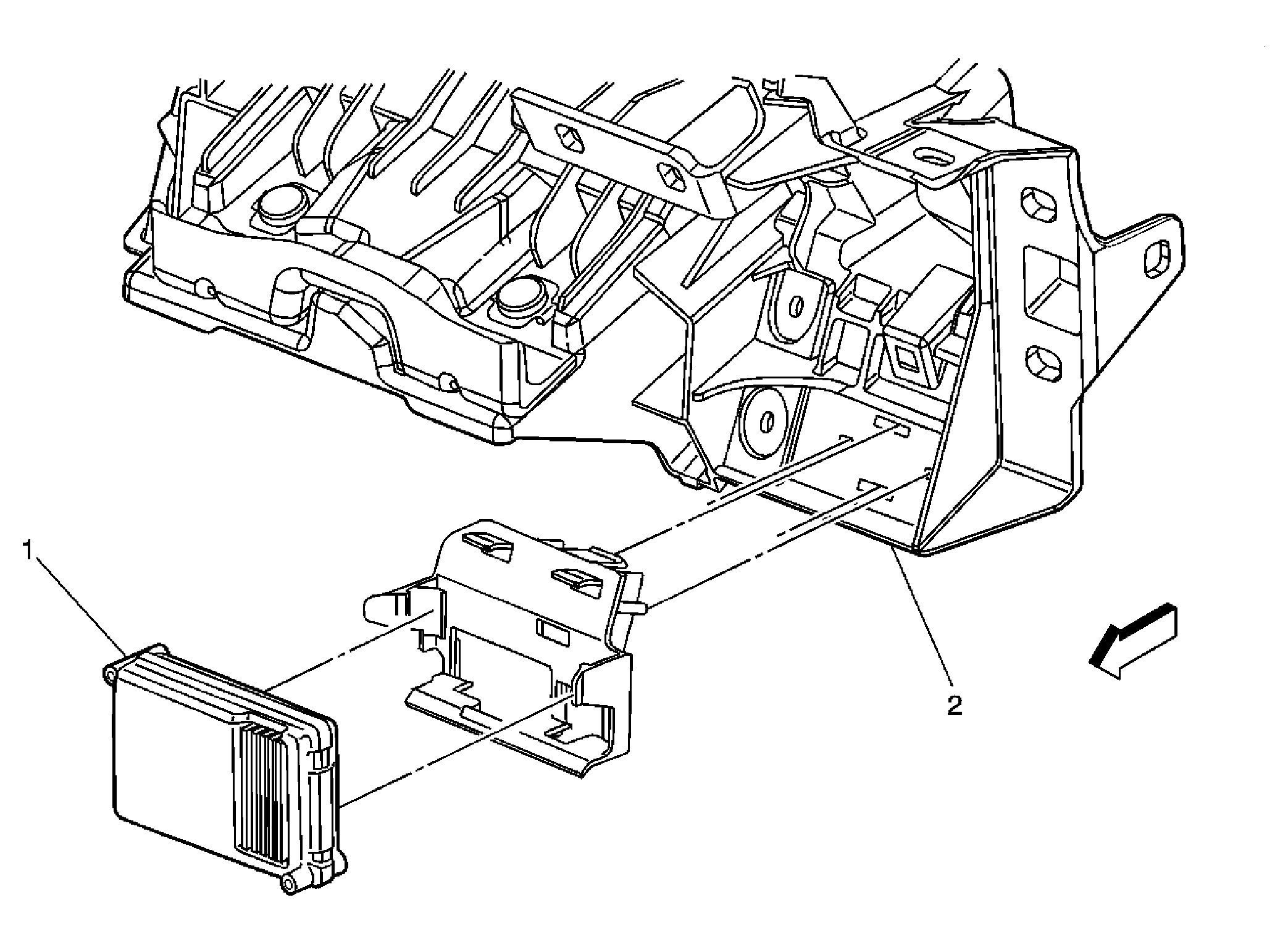

Fig 1: Instrument Carrier Support, Lower Left

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Instrument Carrier Support, Left Side

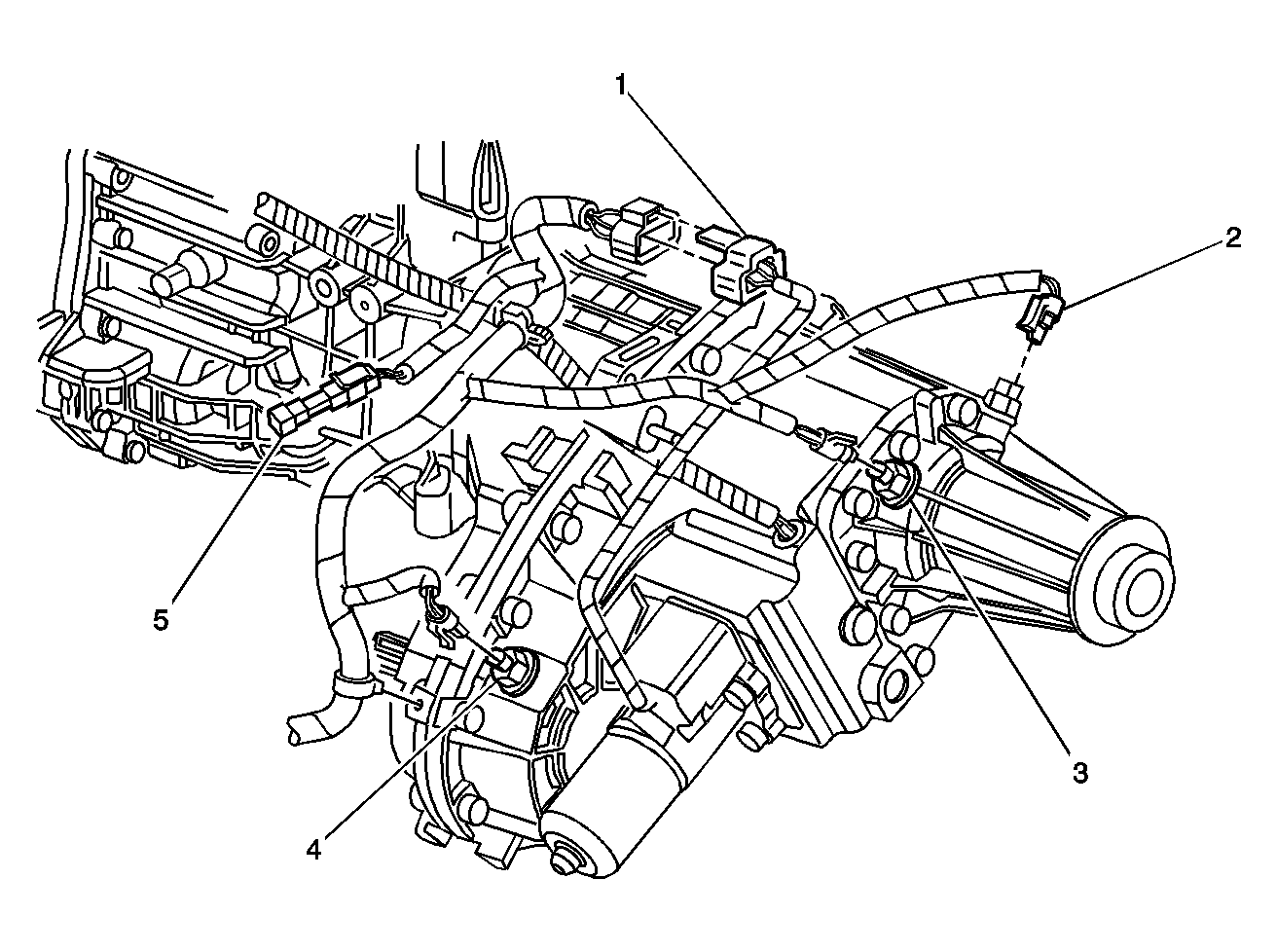

Fig 2: Transfer Case

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Motor Encoder Connector
2	Propshaft Speed Sensor (VSS)-RR
3	Vehicle Speed Sensor (VSS)
4	Propshaft Speed Sensor (VSS)-LF
5	C310
