Power and Grounding Component Views

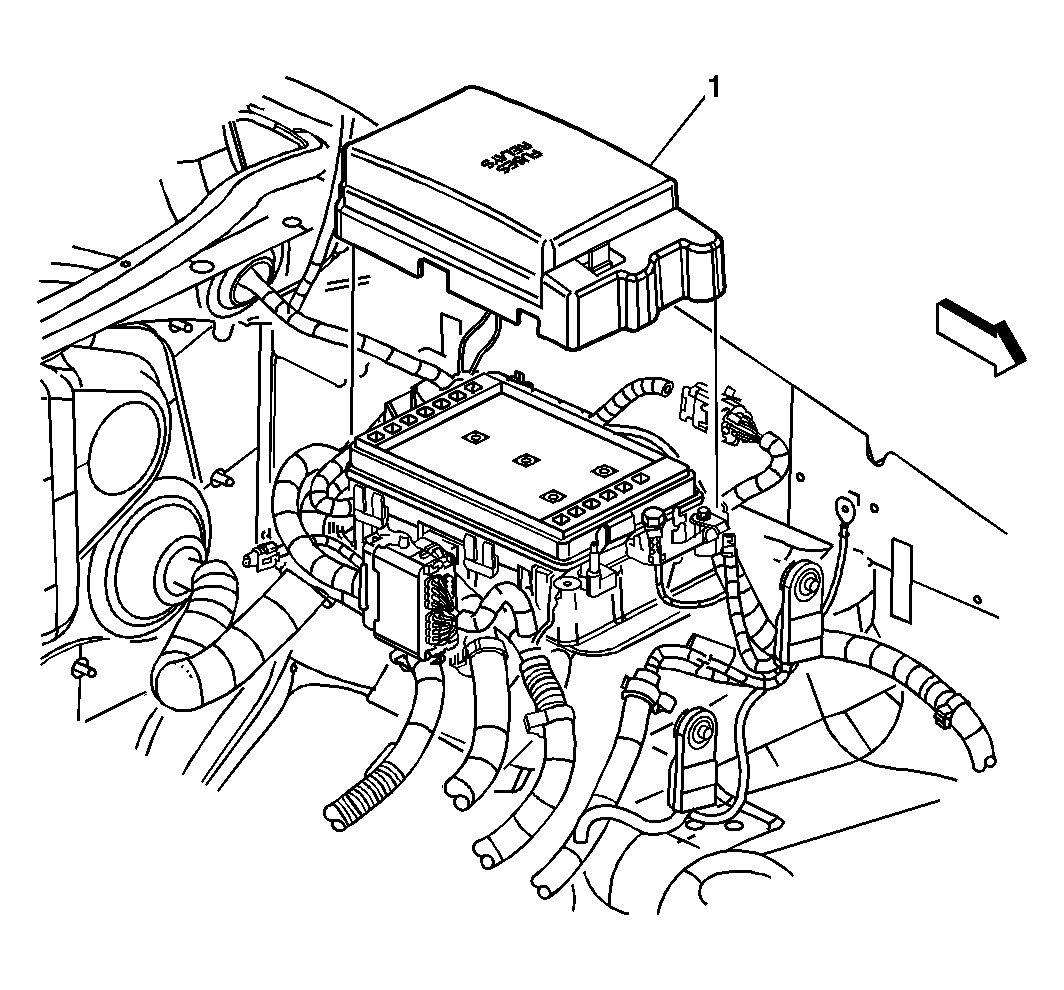

Fig 1: Fuse Block-Underhood

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood

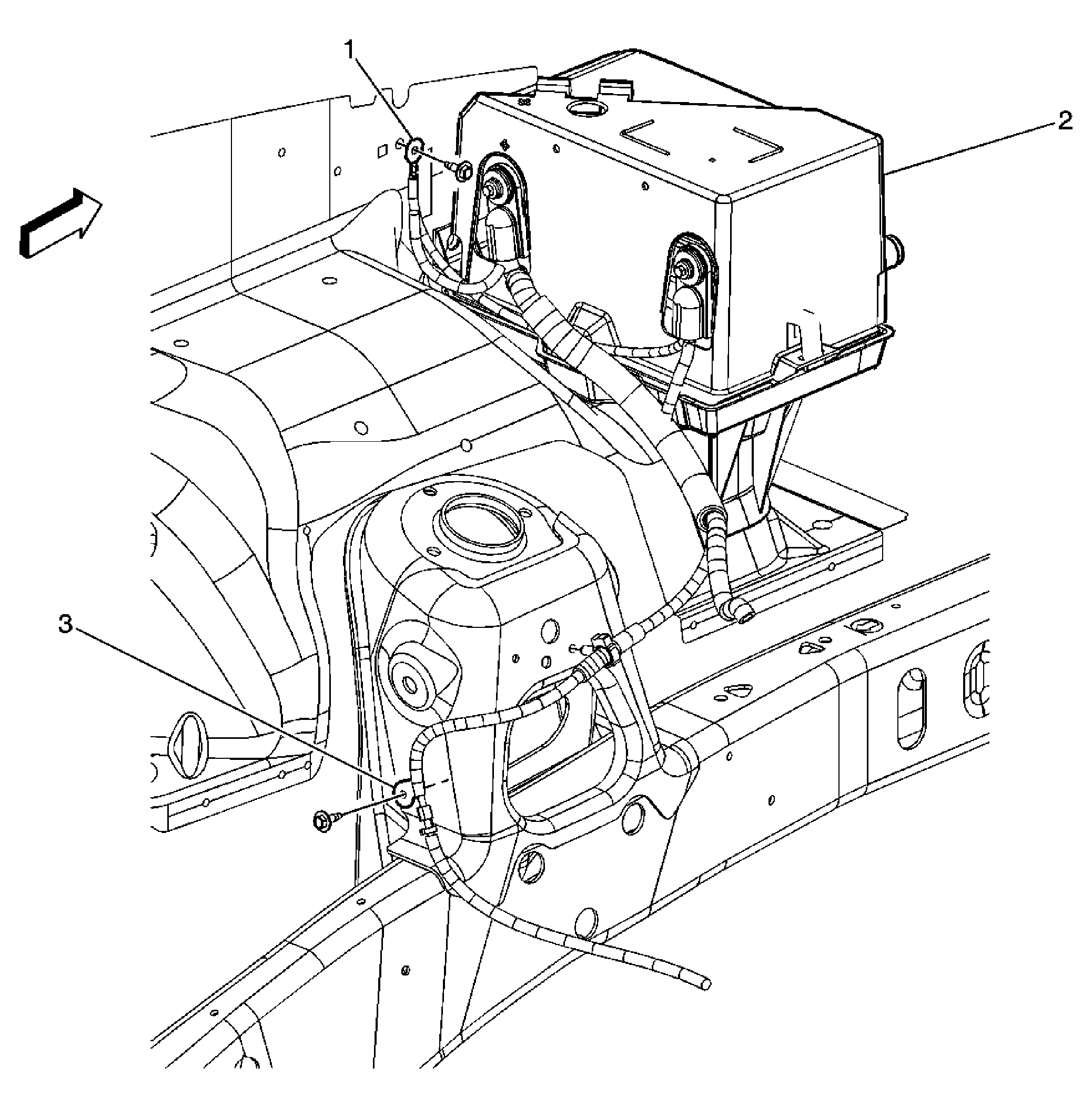

Fig 2: Battery, G101, and G106

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G101
2	Battery
3	G106

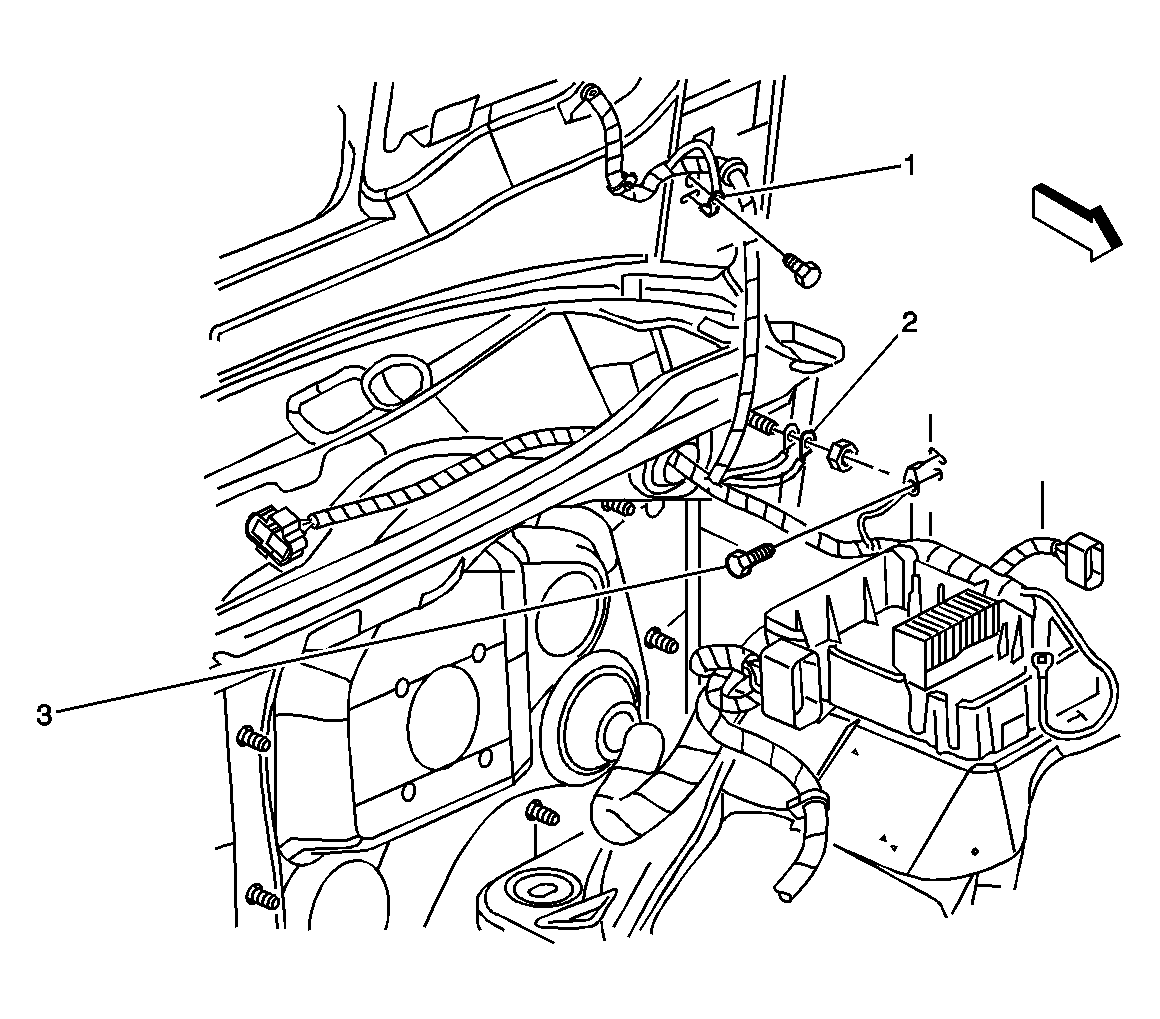

Fig 3: Underhood Grounds-Left, G102, G104, G105

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G104
2	G105
3	G102

Fig 4: Underhood Ground-Right, G103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G103

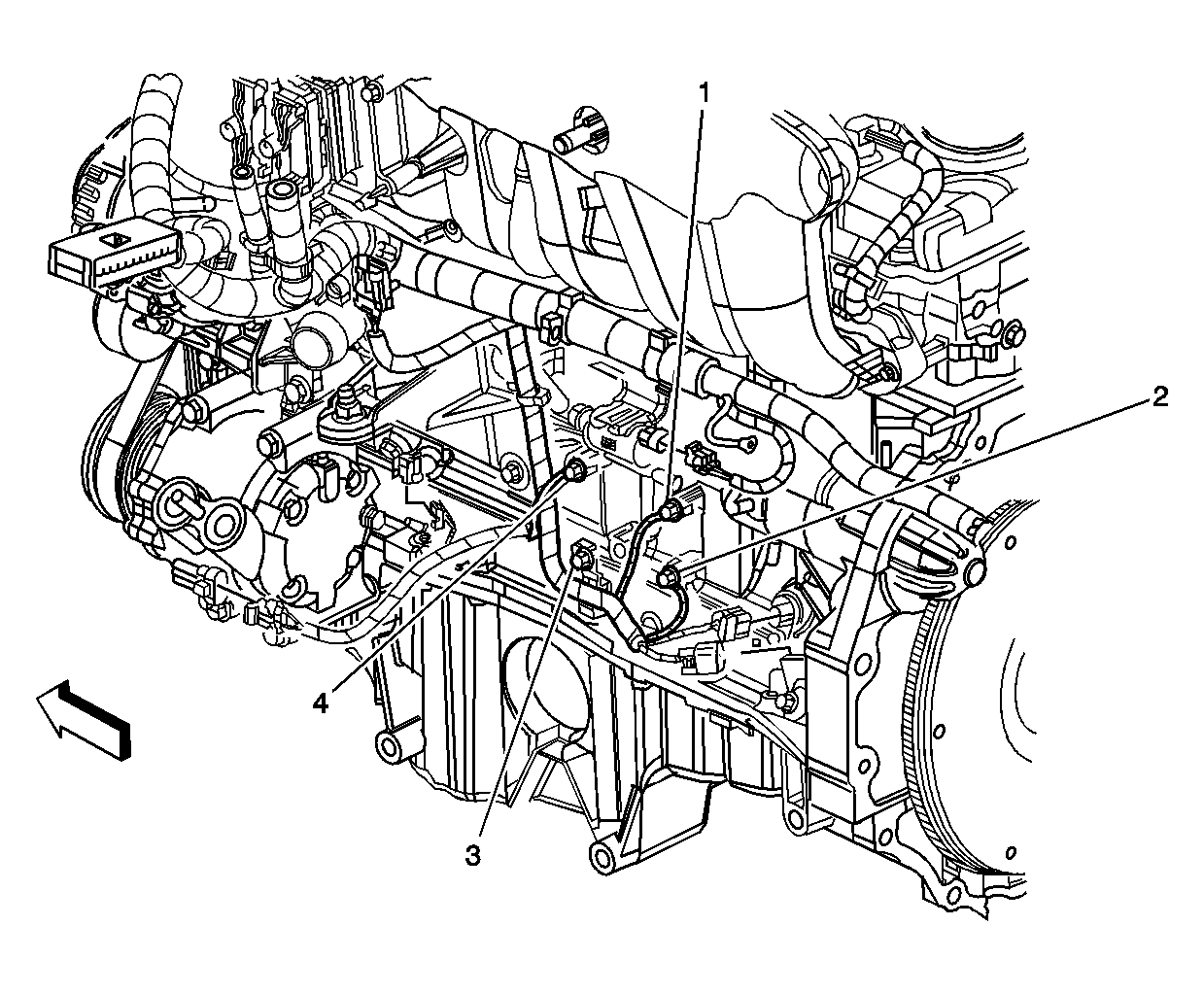

Fig 5: Engine Block Grounds G107, G108, G109, G110 (Six Cylinder Engine, 4.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G108
2	G109
3	G110
4	G107

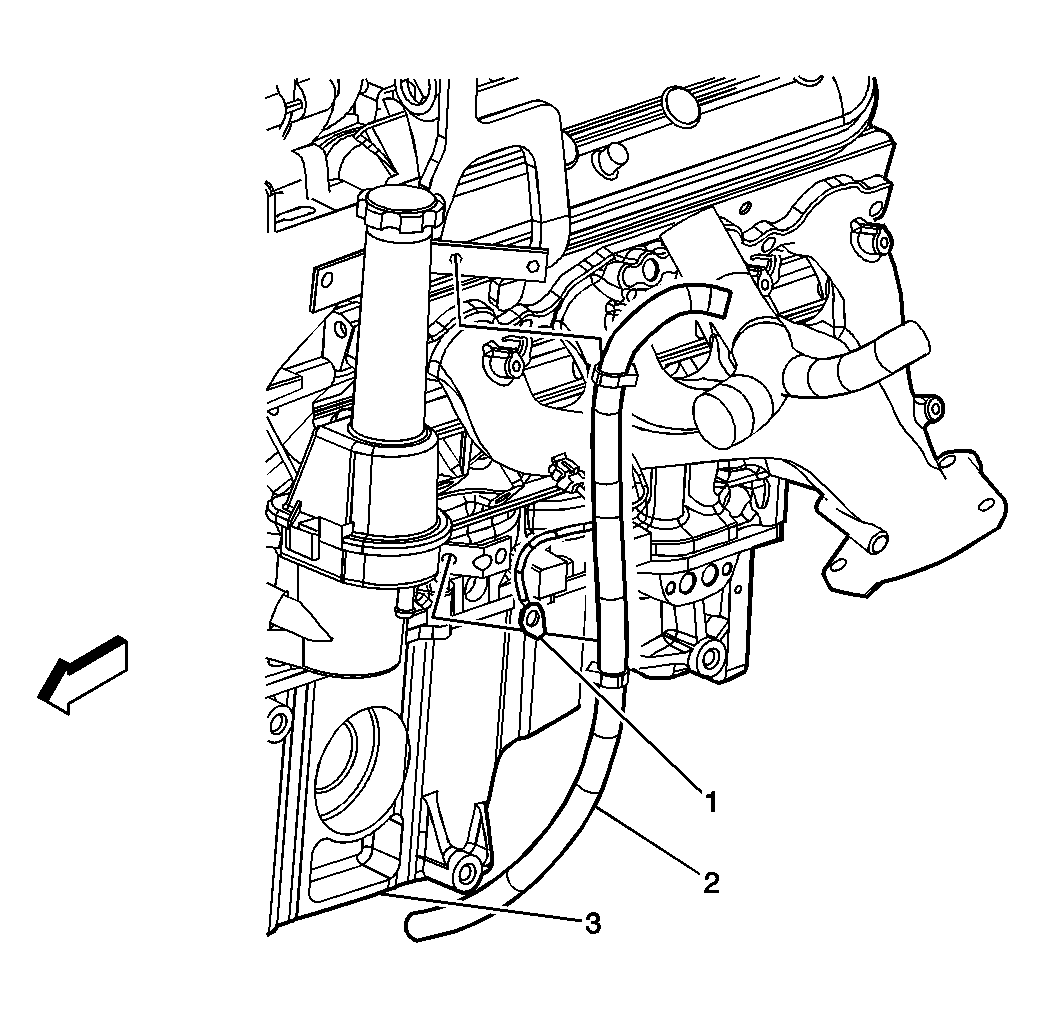

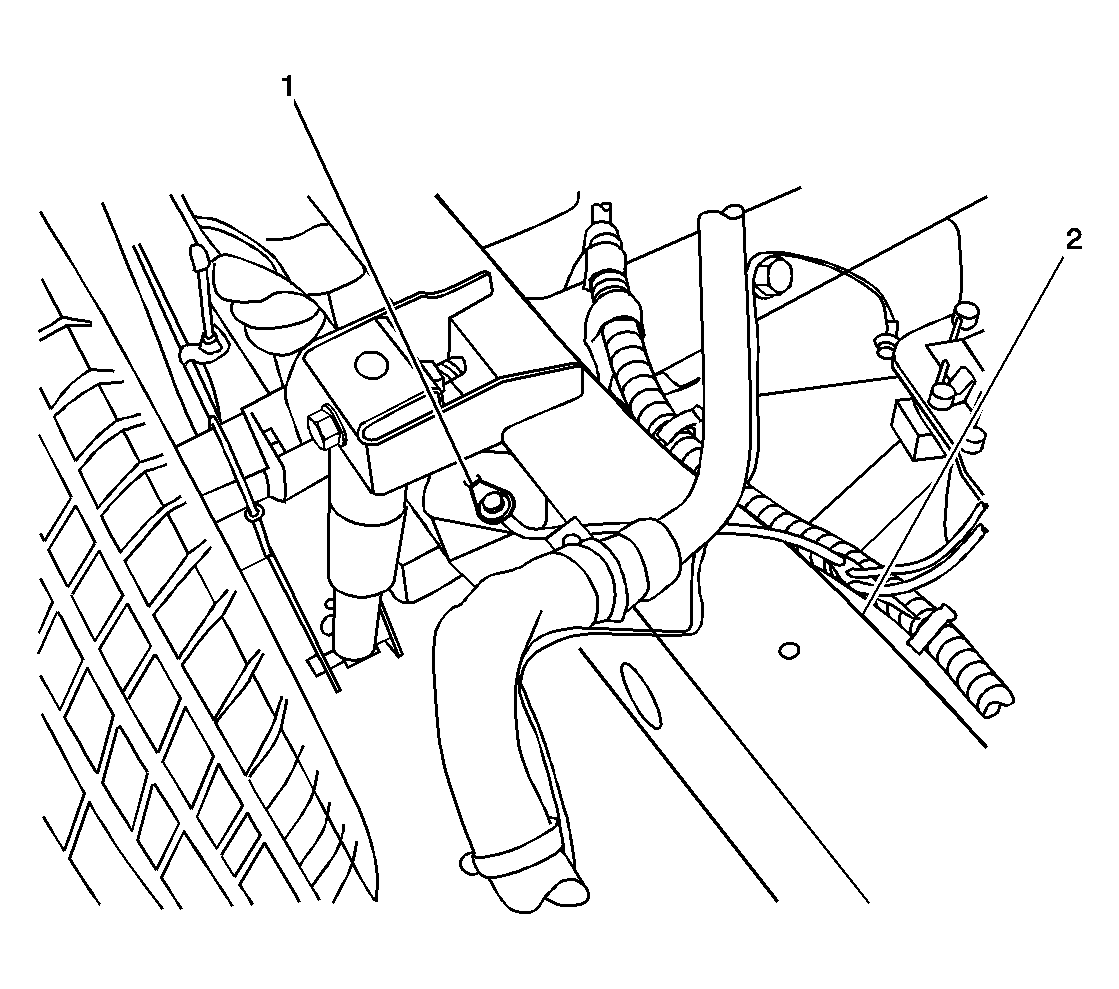

Fig 6: Engine Ground G108, Lower Left Front (V8 Engine, 5.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G108
2	Engine Harness
3	Engine

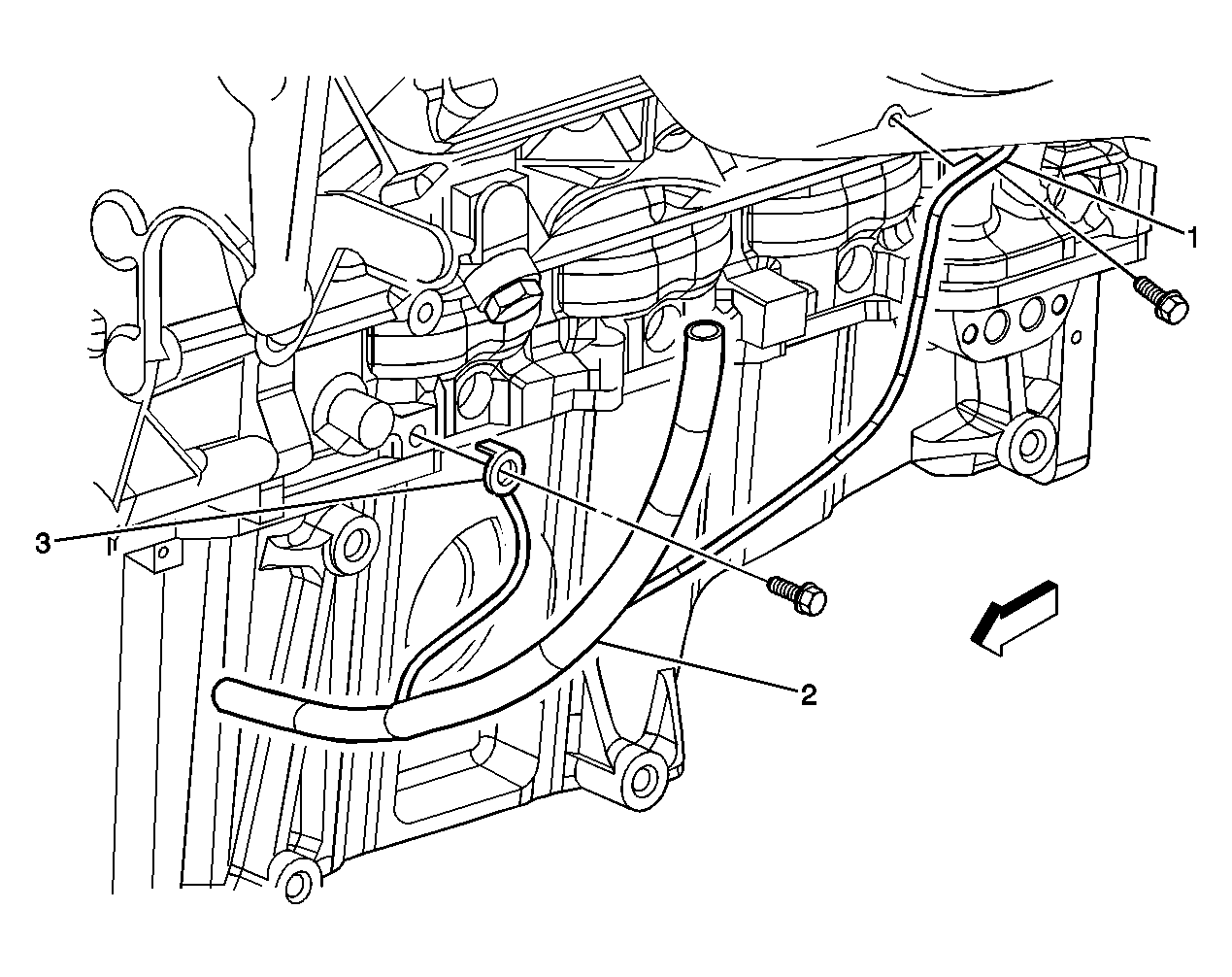

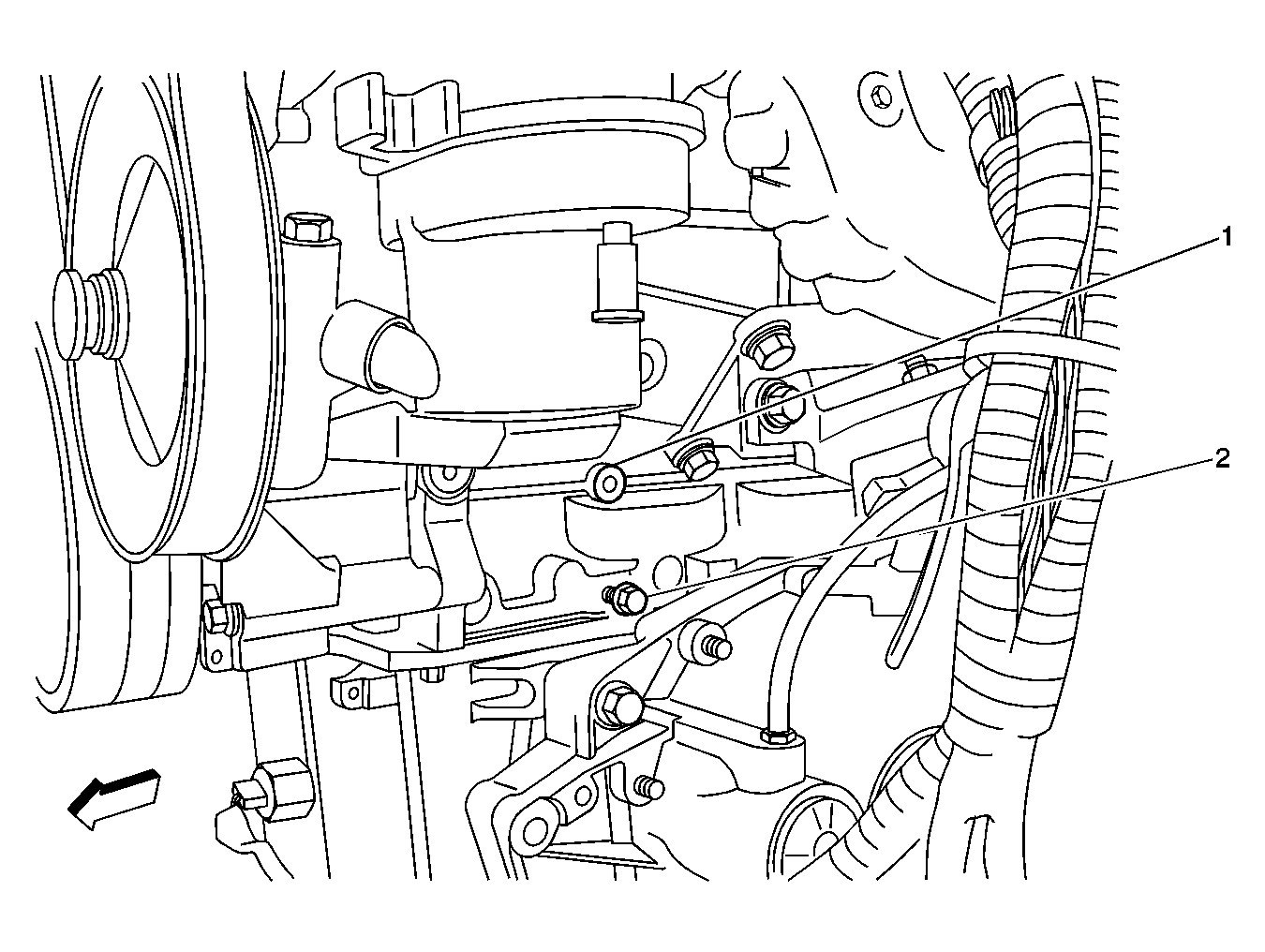

Fig 7: Engine Grounds G109, G107, Left Side (V8 Engine, 5.3L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G109
2	Engine Harness
3	G107

Fig 8: Left Side of Engine (5.3L V8 Engine)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G110
2	G108

Fig 9: Ground Splice Pack, SP201

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	SP201
2	Instrument Panel Harness

Fig 10: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Switch
2	Passlock Sensor
3	Ignition Key Alarm Switch
4	Ignition Lock Cylinder Control Actuator
5	Steering Column

Fig 11: B-Pillar, Left-G302

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Frame
2	G302

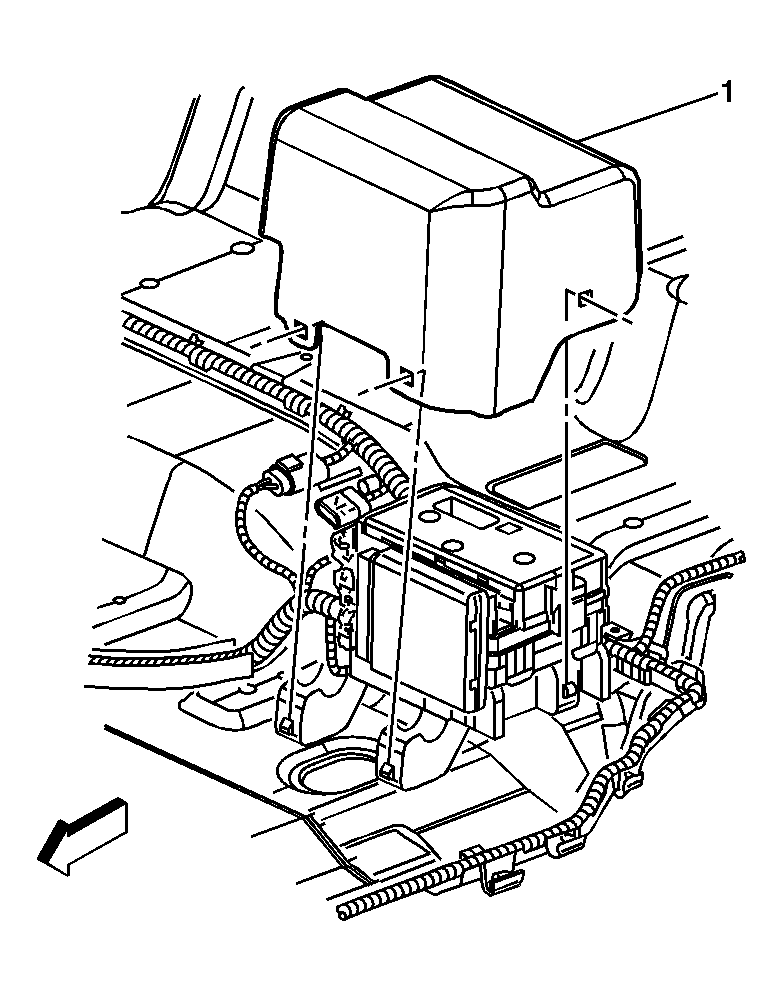

Fig 12: Fuse Block-Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Rear

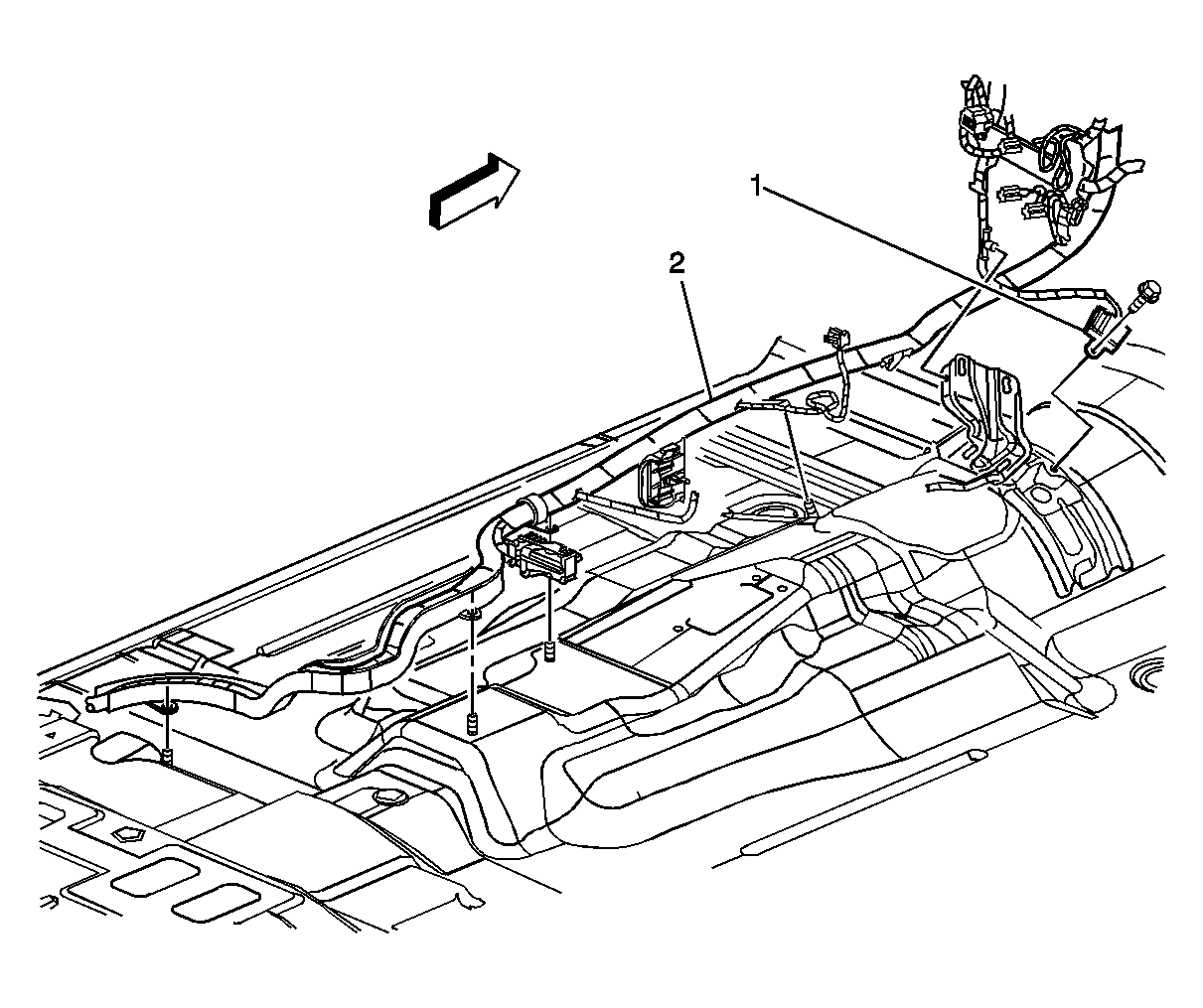

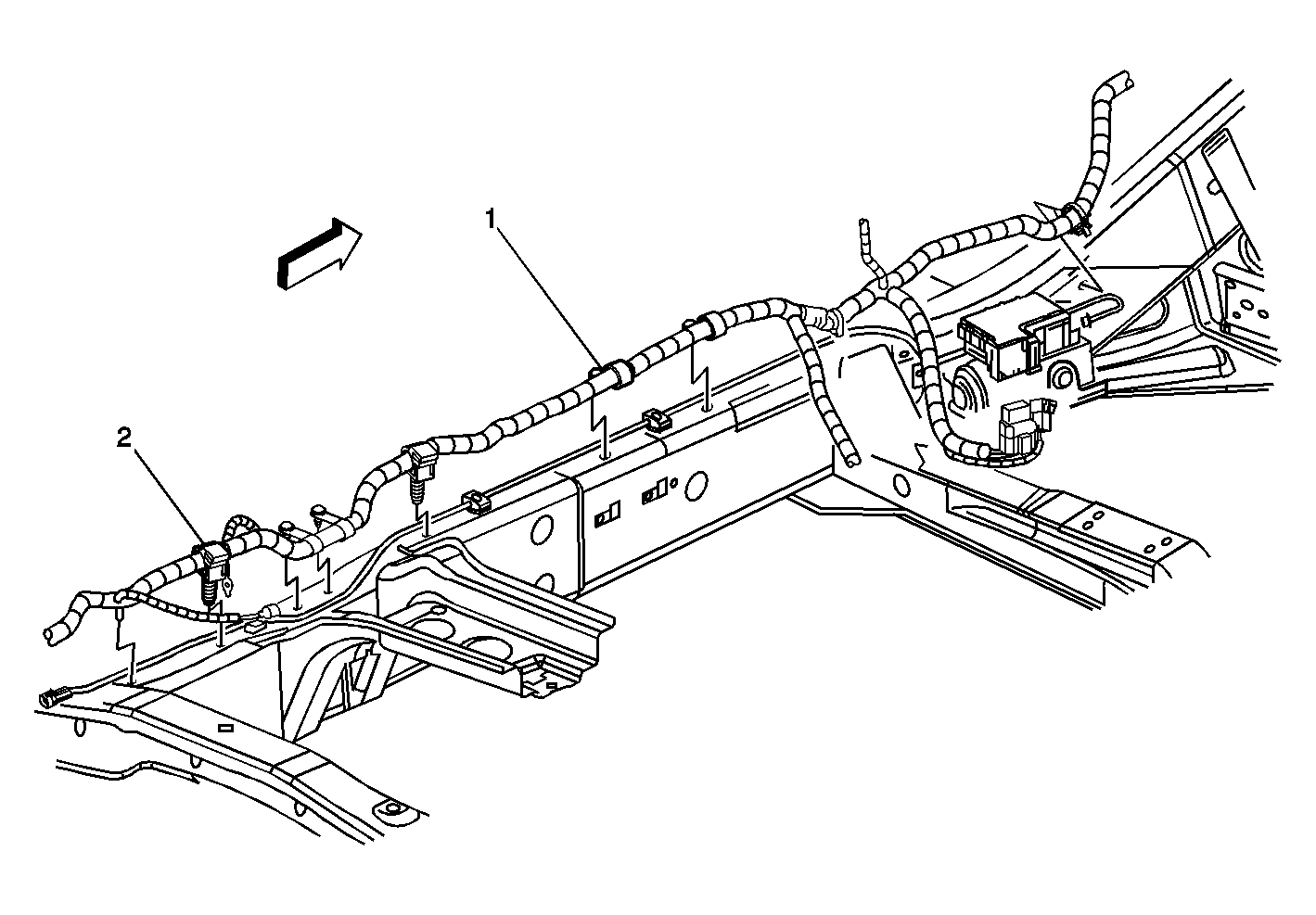

Fig 13: G304

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	G304

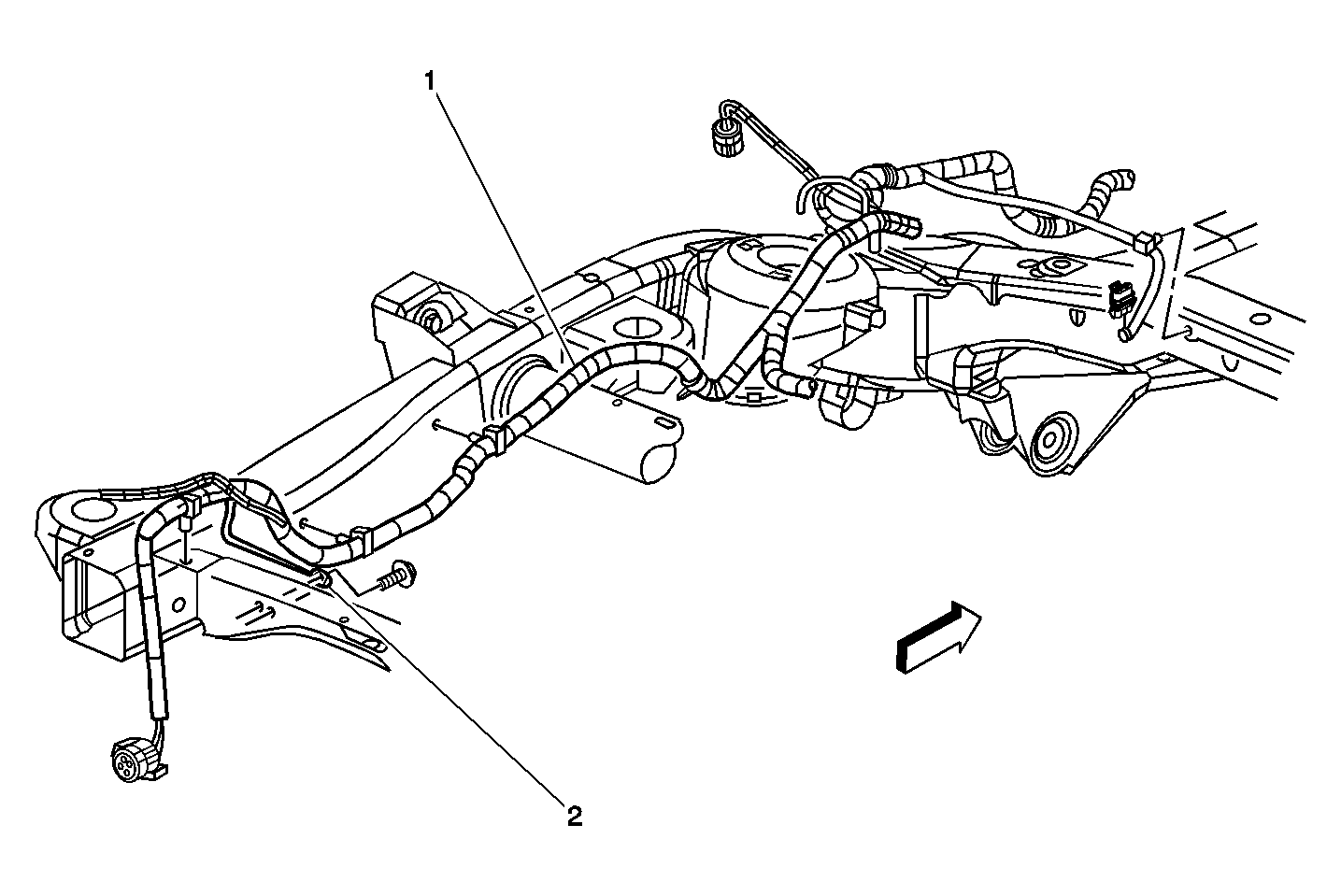

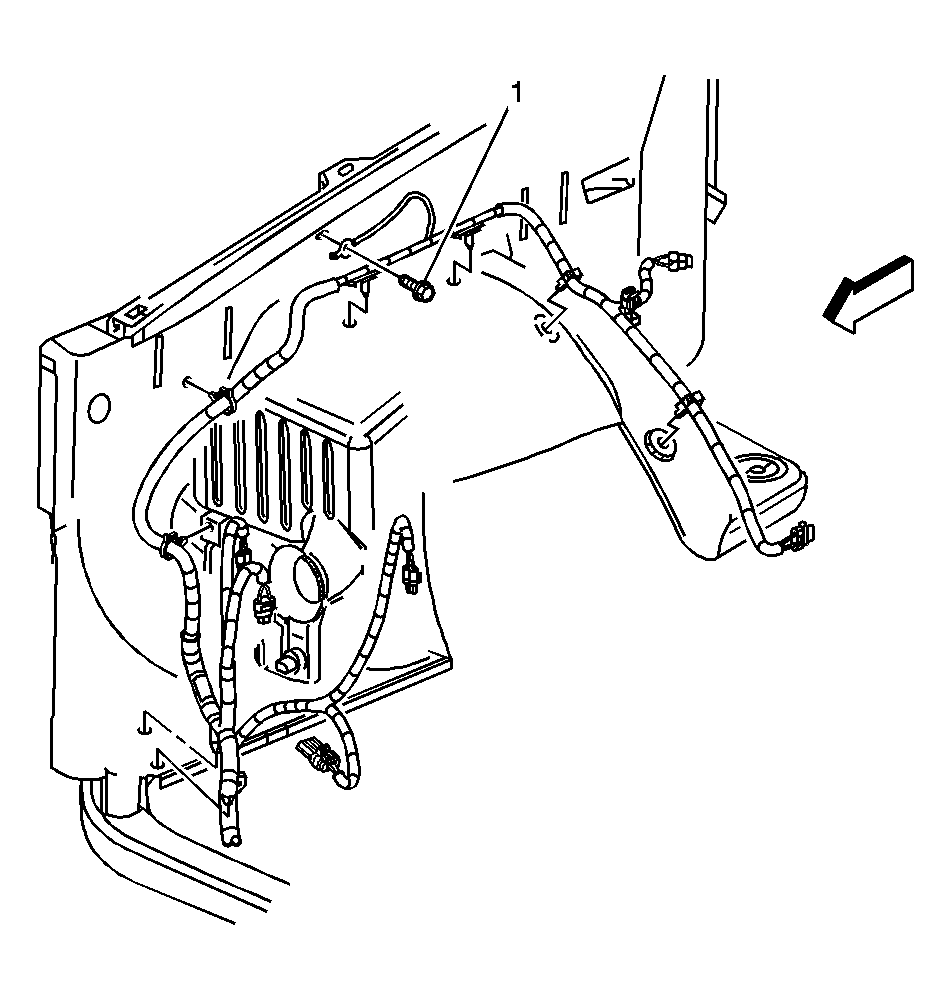

Fig 14: Frame, Left-G305

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	G305

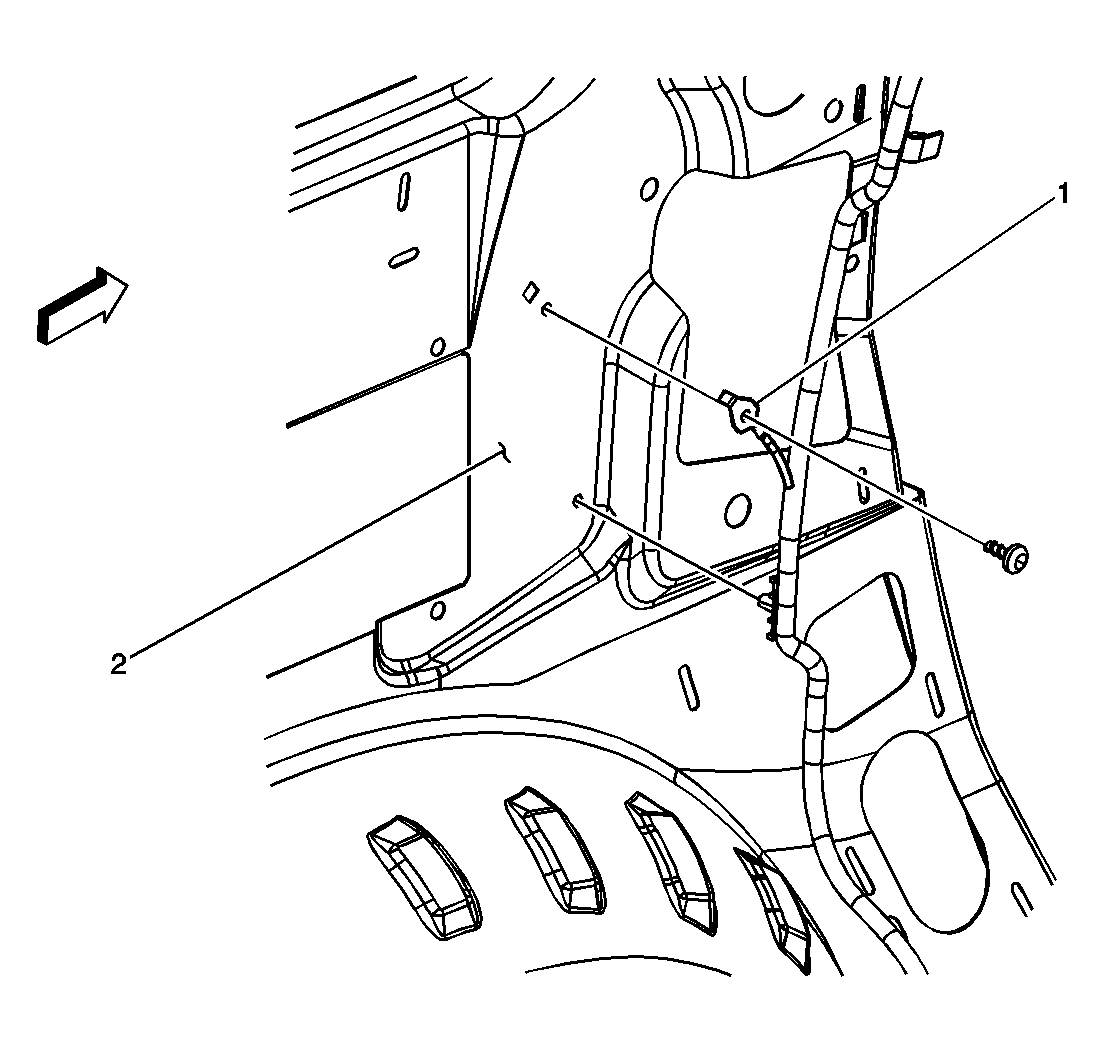

Fig 15: G401, G402

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Lower Reinforcement
2	Body Harness
3	G401; G402 Similar on Opposite Side

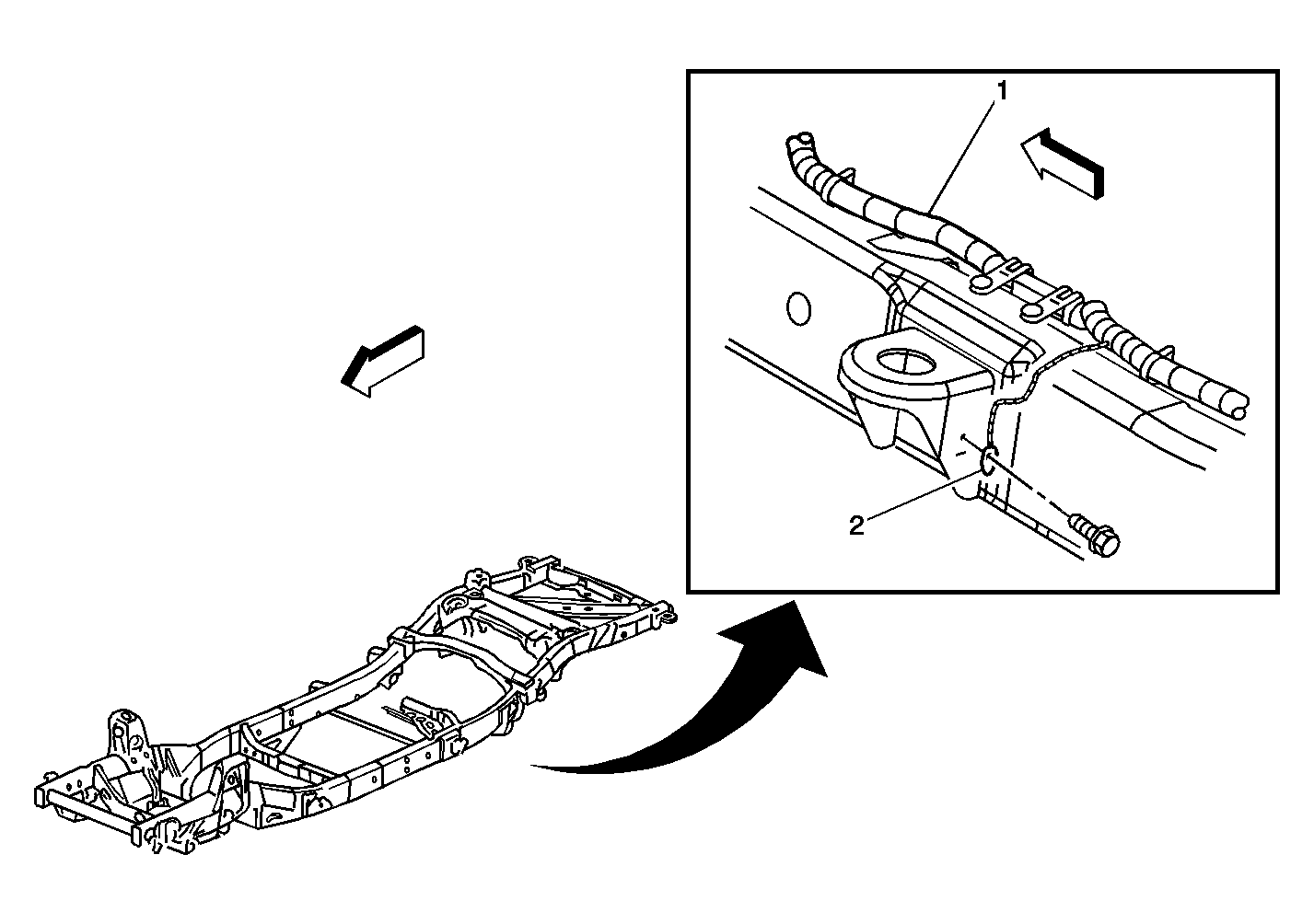

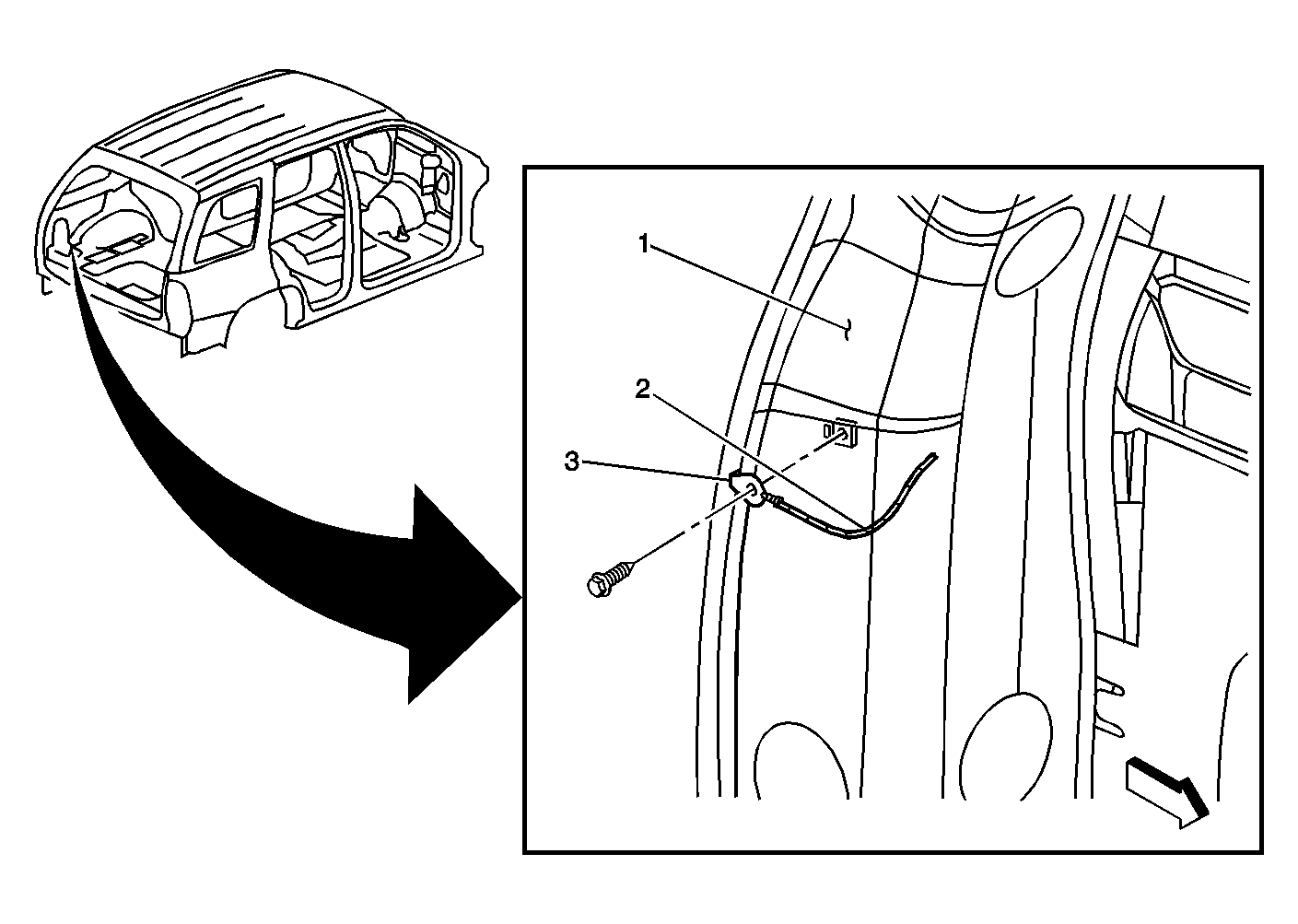

Fig 16: Frame, Rear-G403-Short Wheelbase, Body Type VIN 3

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Chassis Harness
2	G403-Short Wheelbase

Fig 17: G403-Long Wheelbase, Body Type VIN 6

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G403
2	Frame, Left Rear

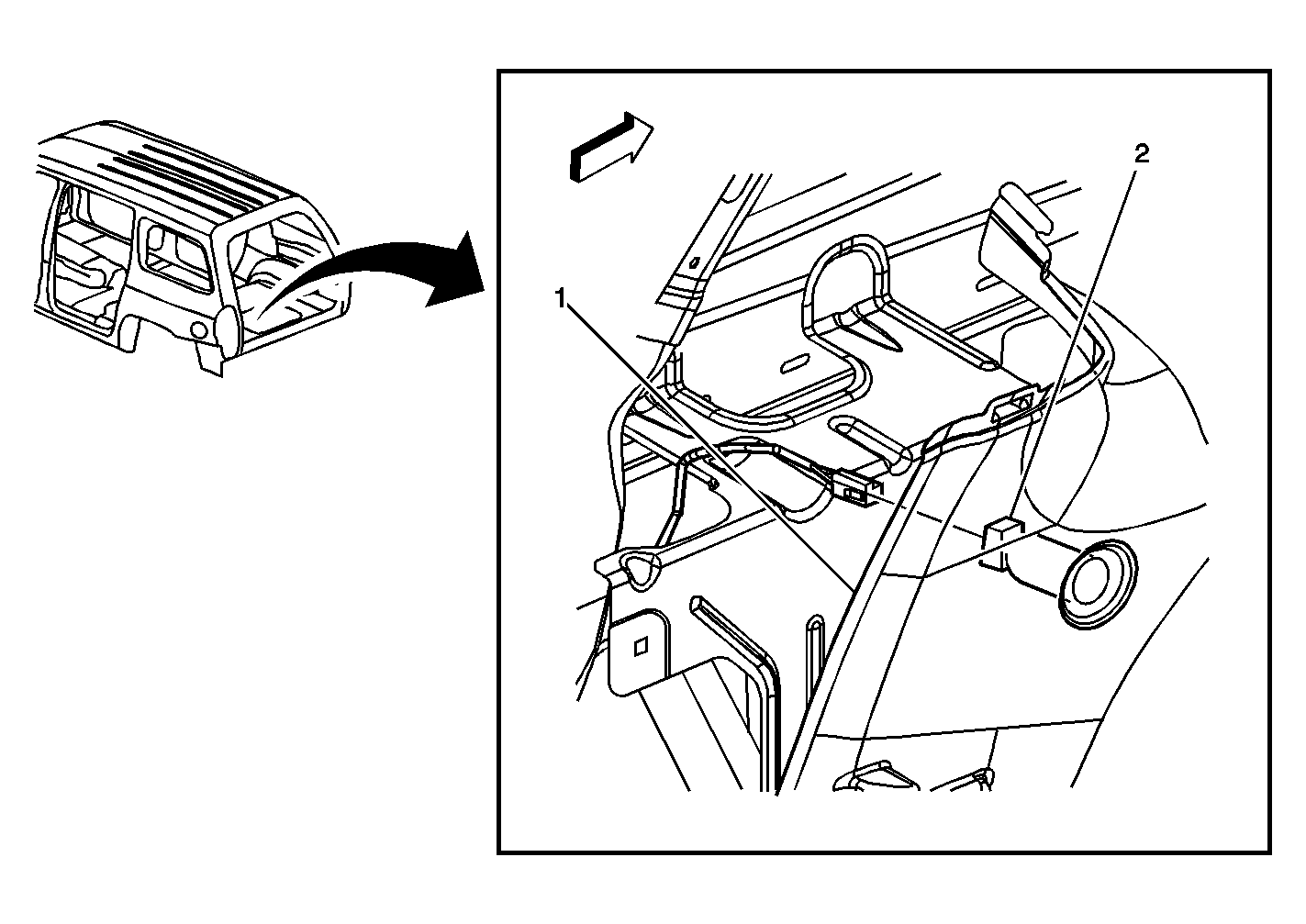

Fig 18: Left Rear Body Side Panel (XUV)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Lower Trim Panel
2	Auxiliary Power Outlet - Rear

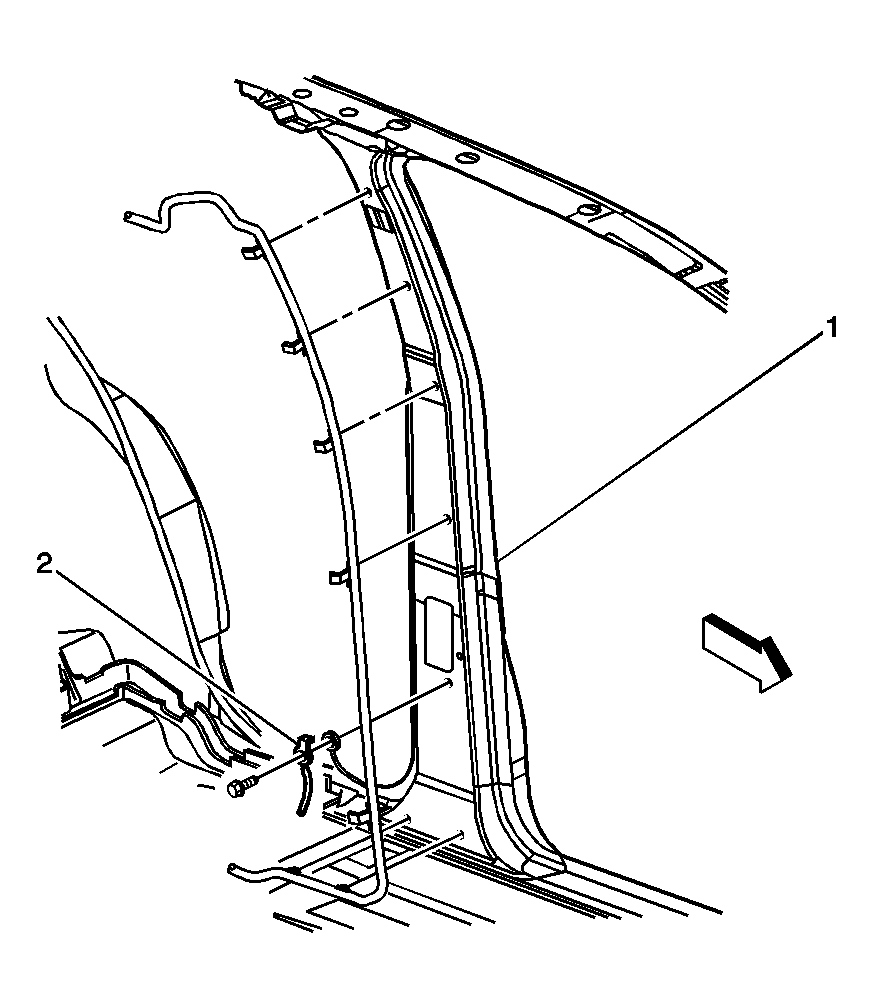

Fig 19: Body Left Side-Long Wheelbase, Body Type VIN 6

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G306, Headliner Harness
2	Body Side Panel-Left
