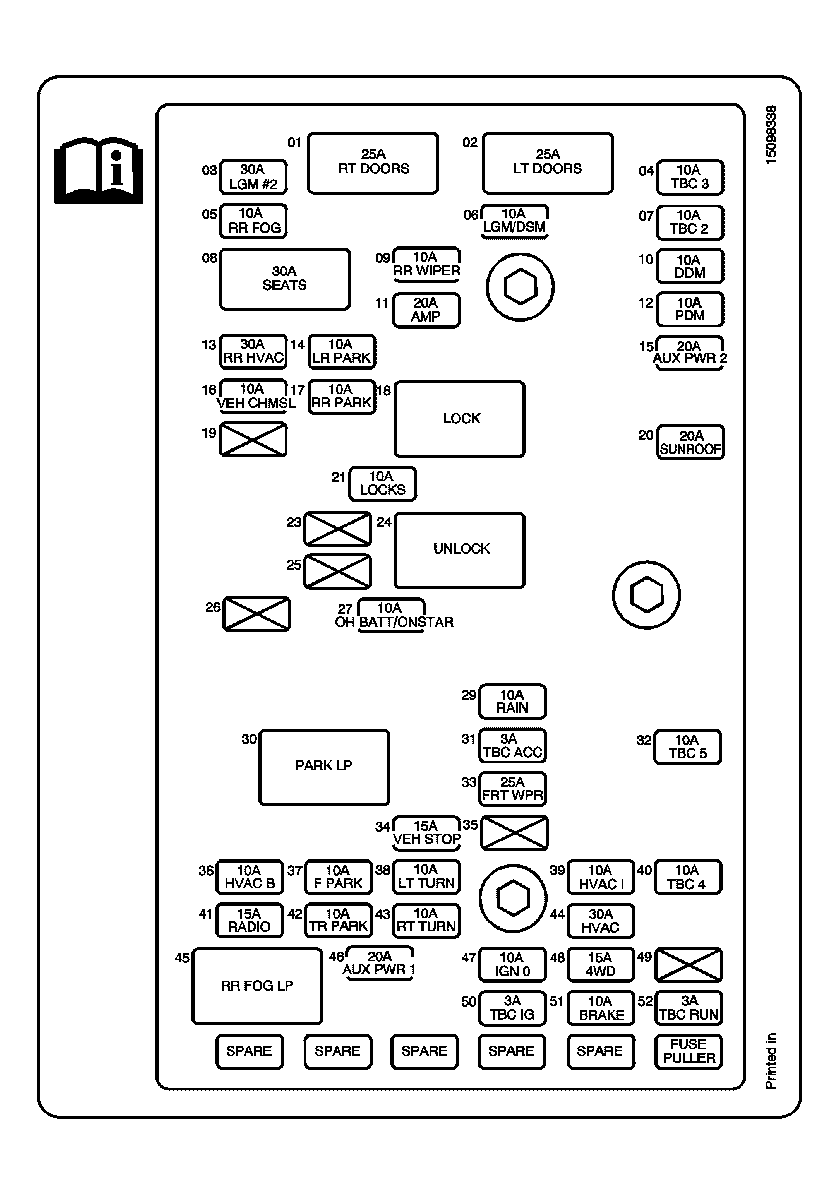

Fuse Block - Rear (SWB), Label
Fuse Block - Rear (SWB), Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | RT DOORS Circuit Breaker | 25A | Front Passenger Door Module (FPDM), Right Rear Window Switch |
| 2 | LT DOORS Circuit Breaker | 25A | Driver Door Module (DDM), Left Rear Window Switch |
| 3 | LGM #2 Fuse | 30A | Liftgate Module |
| 4 | TBC 3 Fuse | 10A | Body Control Module (BCM) |
| 5 | RR FOG Fuse | 10A | Rear Fog Lamp |
| 6 | - | - | Not Used |
| 7 | TBC 2 Fuse | 10A | Body Control Module (BCM) |
| 8 | SEATS Circuit Breaker | 30A | Memory Seat Module - Driver, Memory Seat Module - Front Passenger |
| 9 | RR WIPER | 15A | Rear Window Wiper Motor |
| 10 | DDM Fuse | 10A | Driver Door Module (DDM) |
| 11 | AMP Fuse | 20A | Audio Amplifier |
| 12 | PDM Fuse | 10A | Front Passenger Door Module (FPDM) |
| 13 | RR HVAC Fuse | 30A | Blower Motor - Auxiliary, Blower Motor Control Processor - Auxiliary |
| 14 | LR PARK Fuse | 10A | License Lamps and Left Tail Lamp |
| 15 | - | - | Not Used |
| 16 | VEH CHMSL Fuse | 10A | Center High-Mounted Stop Lamp (CHMSL) |
| 17 | RR PARK Fuse | 10A | Right Tail Lamp Assembly |
| 18 | LOCK Relay | - | Rear Door Lock Actuators |
| 19 | LGM/DSM Fuse | 10A | Memory Seat Module - Driver, Liftgate Module, and (Export Only with BAE) Cobra Intrusion Sensor and Inclination Sensor |
| 20 | SUNROOF Fuse | 20A | Sunroof Module |
| 21 | LOCKS Fuse | 10A | LOCK Relay and UNLOCK Relay |
| 23 | - | - | Not Used |
| 24 | UNLOCK Relay | - | Rear Door Lock Actuators |
| 25-26 | - | - | Not Used |
| 27 | OH BATT/ONSTAR Fuse | 10A | Garage Door Opener, Voice Recorder, Digital Video Disc (DVD) Player |
| 29 | RAIN Fuse | 10A | Outside Moisture Sensor, Digital Video Disc (DVD) Player |
| 30 | PARK LP Relay | - | LR PARK, RR PARK, F PARK, and TR PARK Fuses |
| 31 | TBC ACC Fuse | 3A | Body Control Module (BCM) |
| 32 | TBC 5 Fuse | 10A | Body Control Module (BCM) |
| 33 | FRT WPR Fuse | 25A | Windshield Wiper Motor |
| 34 | VEH STOP Fuse | 15A | Tail Lamps, Powertrain Control Module (PCM), Throttle Actuator Control (TAC) Module |
| 35 | - | - | Not Used |
| 36 | HVAC B Fuse | 10A | HVAC Control Module, HVAC Control Module - Auxiliary |
| 37 | F PARK Fuse | 10A | Turn Signal/Multifunction Switch, Marker Lamps, Front Park and Turn Signal Lamps |
| 38 | LT TURN Fuse | 10A | Instrument Panel Cluster, Driver Door Module (DDM), Tail Lamp Assembly - Left, Marker Lamp - Left, Park/Turn Signal Lamp - LF |
| 39 | HVAC I Fuse | 10A | HVAC Control Module, Turn Signal/Multifunction Switch, Air Temperature Actuator - Right, Defrost Actuator, Recirculation Actuator, Mode Actuator, Console Mode Actuator, Air Temperature Actuator - Left, Traction Control Switch, and (Olds/Buick Only) Electronic Brake Control Module (EBCM) |
| 40 | TBC 4 | 10A | Body Control Module (BCM) |
| 41 | RADIO | 15A | Radio |
| 42 | TR PARK | 10A | Trailer Connector |
| 43 | RT TURN | 10A | Instrument Panel Cluster, Front Passenger Door Module (FPDM), Tail Lamp Assembly - Right, Marker Lamp - Right, Park/Turn Signal Lamp - RF |
| 44 | HVAC | 30A | HVAC Control Module |
| 45 | RR FOG LP Relay | - | RR FOG LP Fuse |
| 46 | AUX PWR 1 Fuse | 20A | Auxiliary Power Outlet - Front, Auxiliary Power Outlet - Console |
| 47 | IGN 0 Fuse | 10A | Automatic Transmission, A/T Shift Lock Actuator, Powertrain Control Module (PCM), and (Export Only with BAE) Theft Deterrent Control Module |
| 48 | 4WD Fuse | 15A | Transfer Case Shift Control Switch, Automatic Level Control (ALC) Compressor, Front Axle Actuator |
| 49 | - | - | Not Used |
| 50 | TBC IG Fuse | 3A | Body Control Module (BCM) |
| 51 | BRAKE Fuse | 10A | Electronic Brake Control Module (EBCM) |
| 52 | TBC RUN Fuse | 3A | Body Control Module (BCM) |
