Stationary Windows Component Views

Fig 1: Inside Rearview Mirror
GM750348Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Connector (Headliner Harness)
2 Inside Rearview Mirror
3 Outside Moisture Sensor

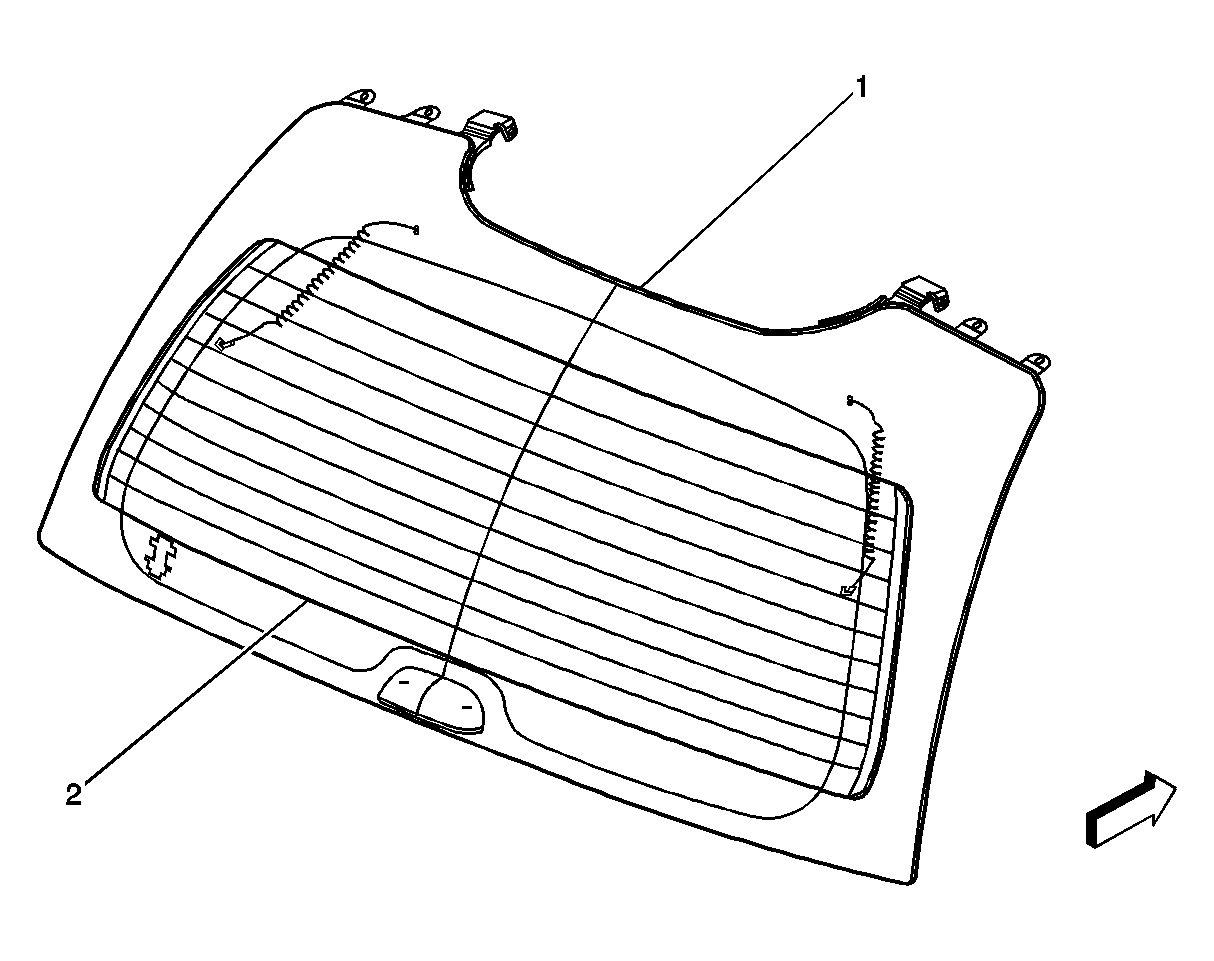

Fig 2: Rear Window Defogger Grid (Except XUV)
GM750350Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Liftglass
2 Rear Window Defogger Grid
