OnStar® Button Assembly Connector End View

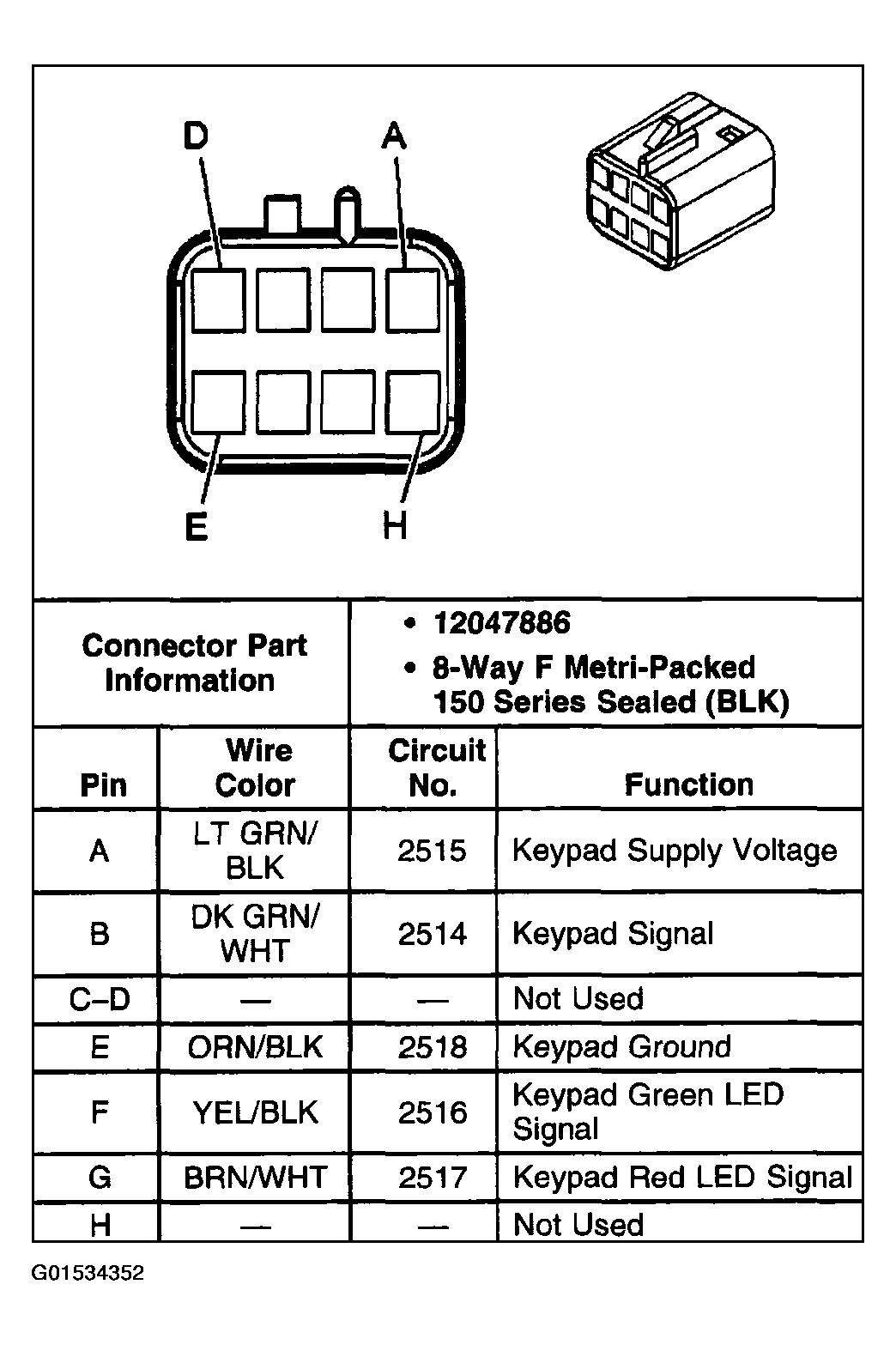

Fig 1: OnStar® Button Assembly Connector End View

G01534352

Courtesy of GENERAL MOTORS CORP.
