Object Sensor-RR Middle Connector End View

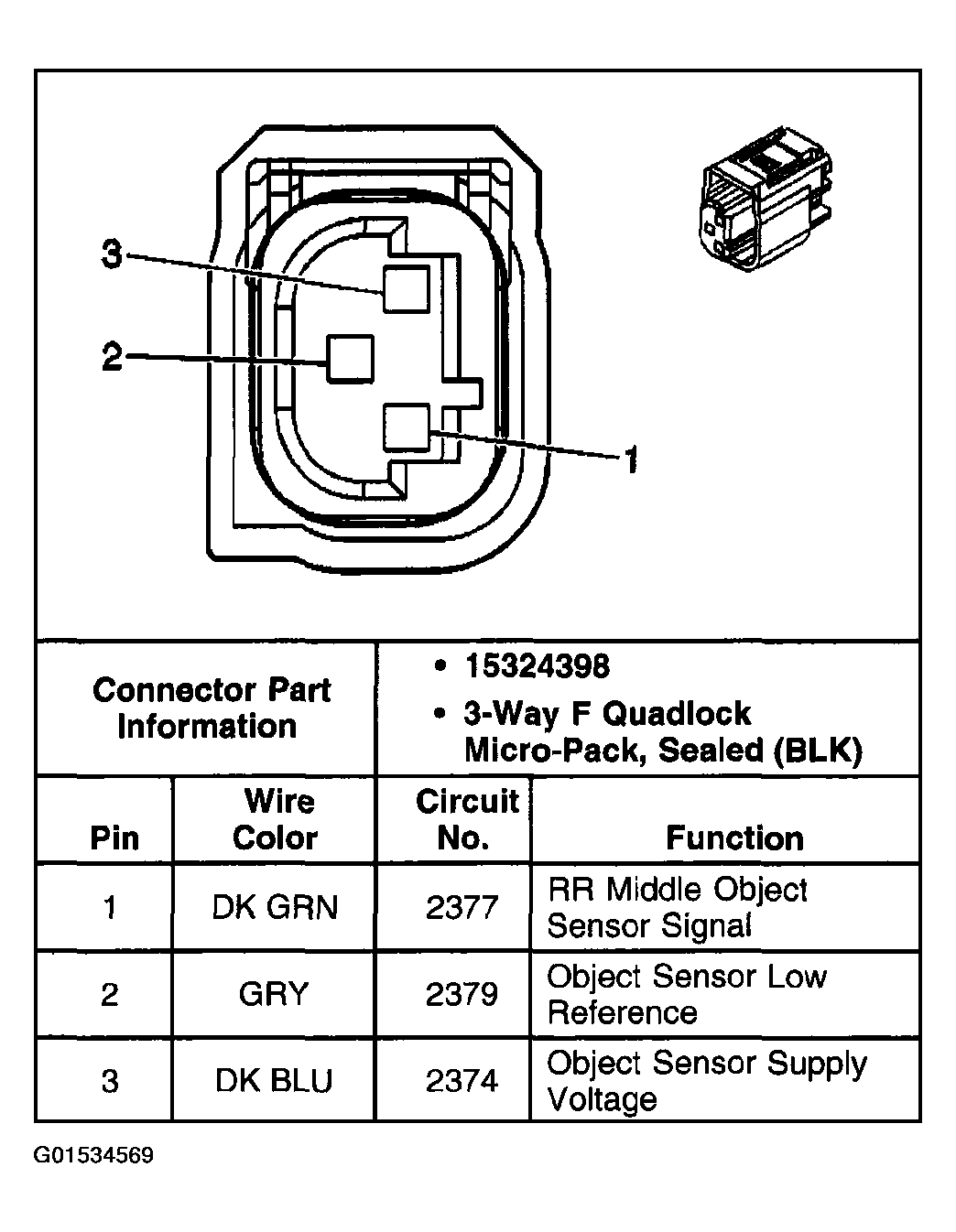

Fig 1: Object Sensor-RR Middle Connector End View

G01534569

Courtesy of GENERAL MOTORS CORP.
