Memory Seat Module Connector End View C3

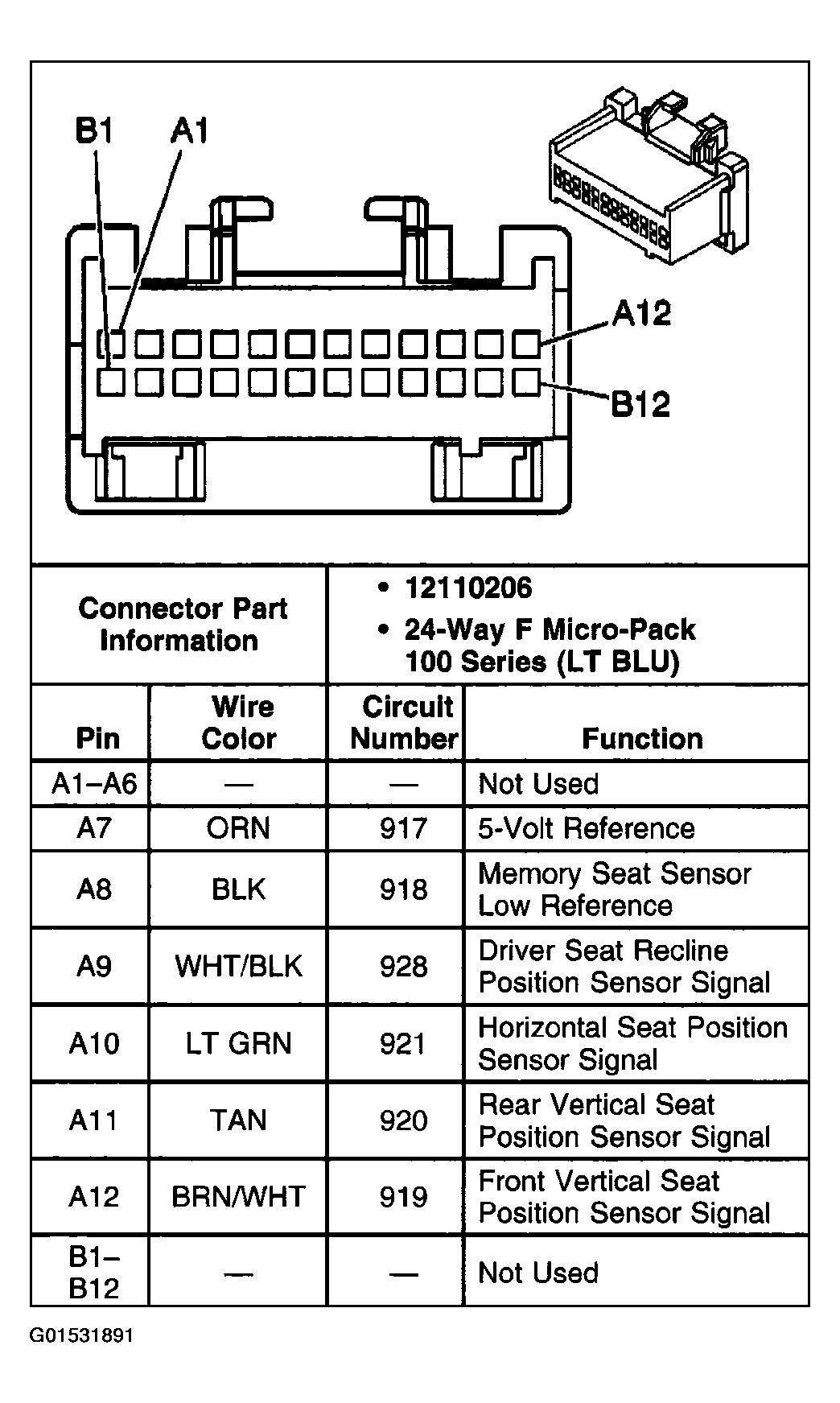

Fig 1: Memory Seat Module Connector End View C3

G01531891

Courtesy of GENERAL MOTORS CORP.
