HVAC Control Module Connector End View C2

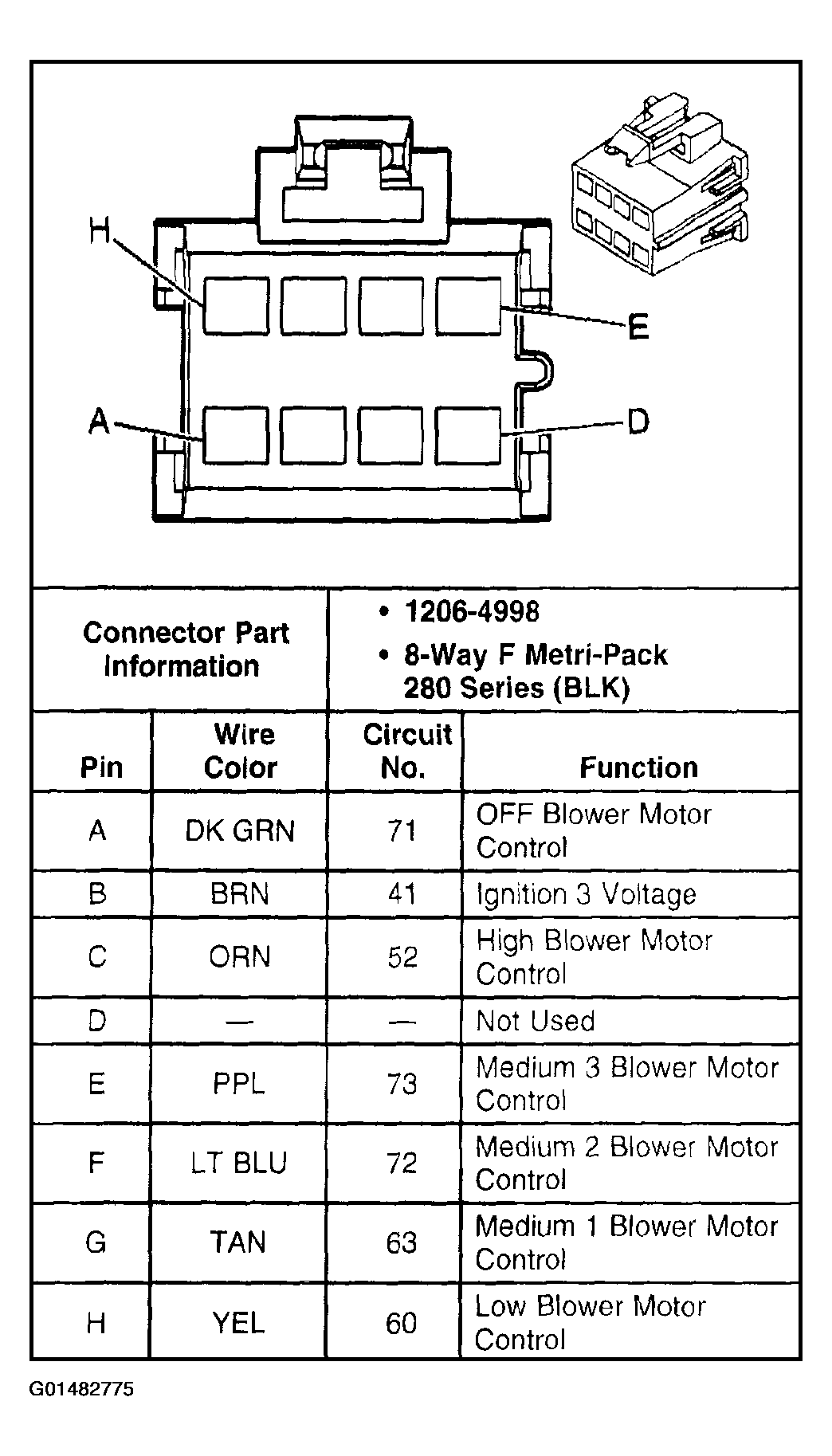

Fig 1: HVAC Control Module Connector End View C2

G01482775

Courtesy of GENERAL MOTORS CORP.
