Daytime Running Lamps Control Module Connector End View C1 (2 Of 2)

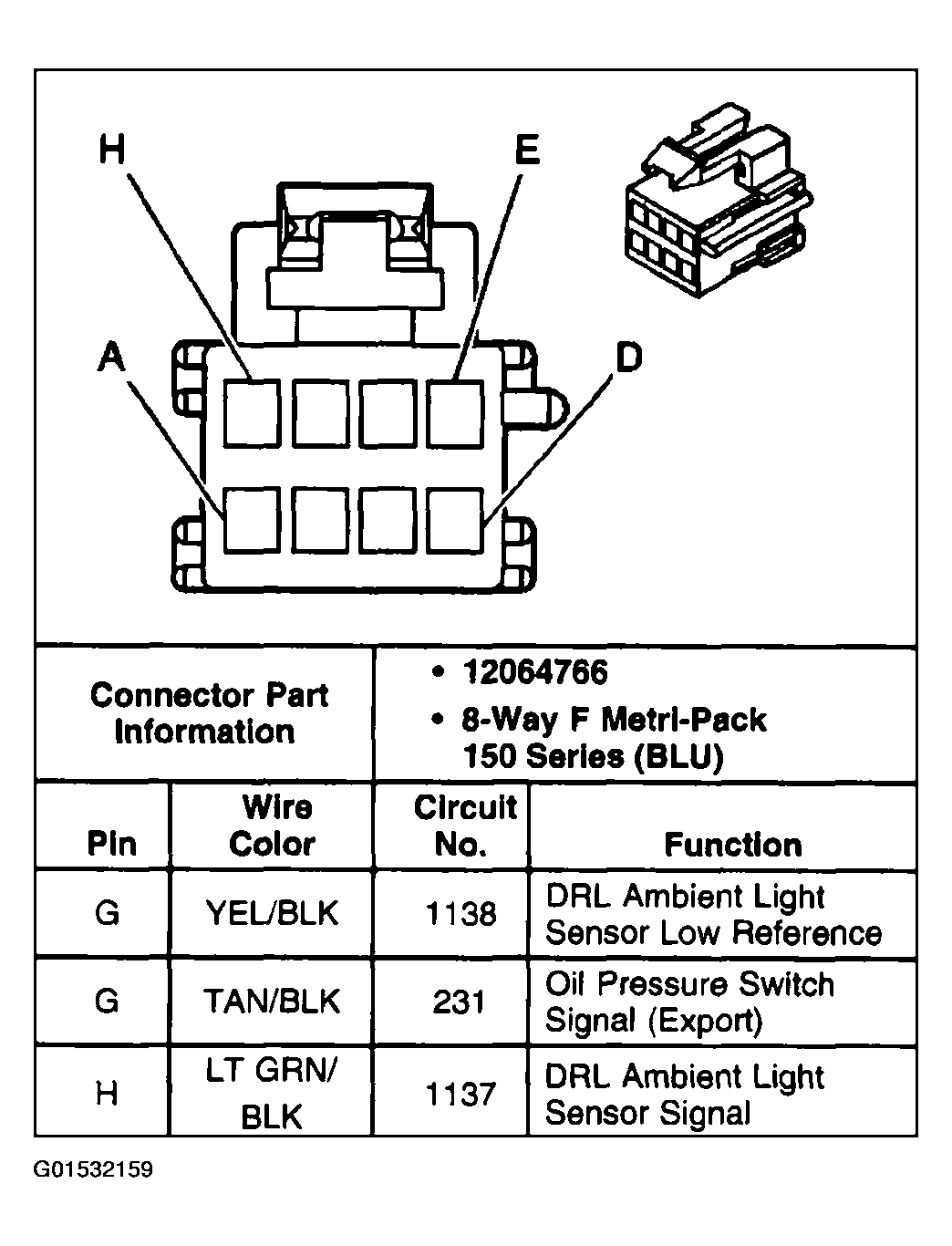

Fig 1: Daytime Running Lamps Control Module Connector End View C1 (2 Of 2)

G01532159

Courtesy of GENERAL MOTORS CORP.
