Rear Object Sensor Control Module Connector End View

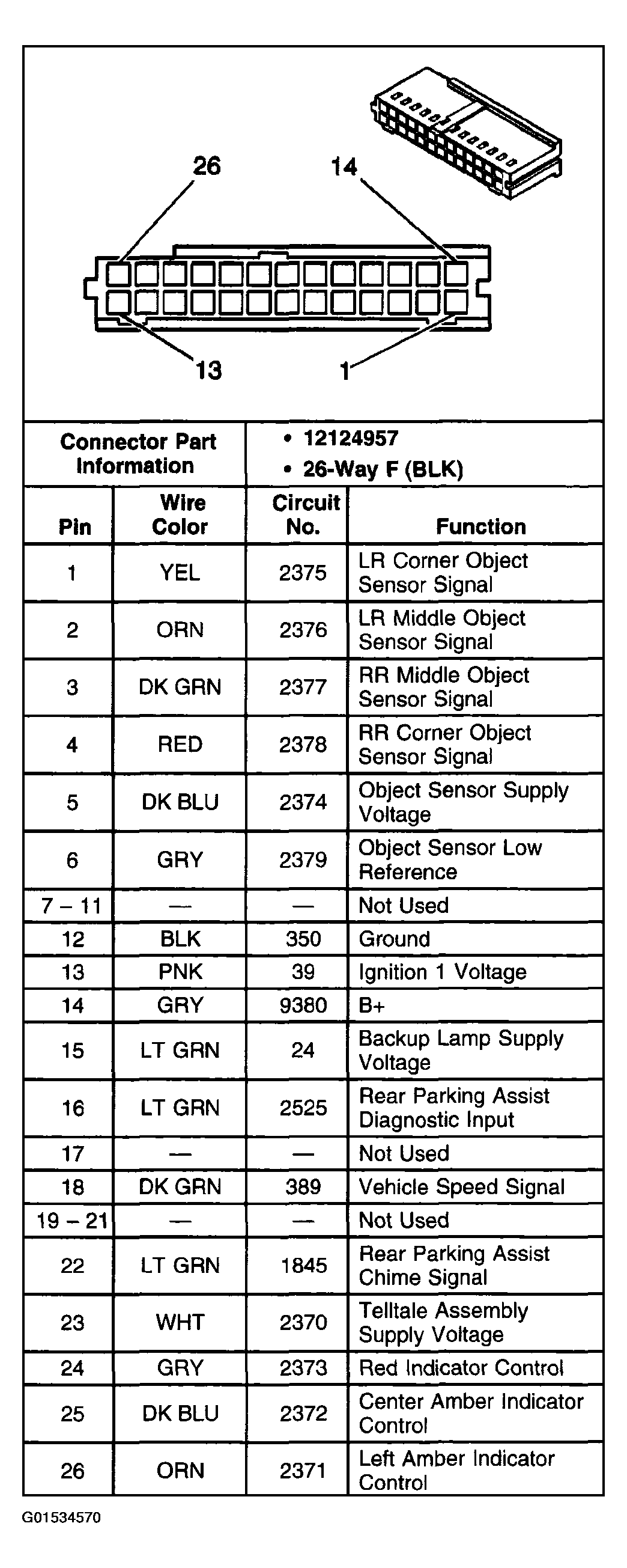

Fig 1: Rear Object Sensor Control Module Connector End View

G01534570

Courtesy of GENERAL MOTORS CORP.
