Home >> Oldsmobile >> 2003 >> Silhouette GL >> Repair and Diagnosis (Single Page) >> Electrical >> Wiring Diagrams >> OEM Connector End Views >> Connector End View >> Daytime Running Lamps Control Module Connector End View C2 (2 Of 2)

Daytime Running Lamps Control Module Connector End View C2 (2 Of 2)

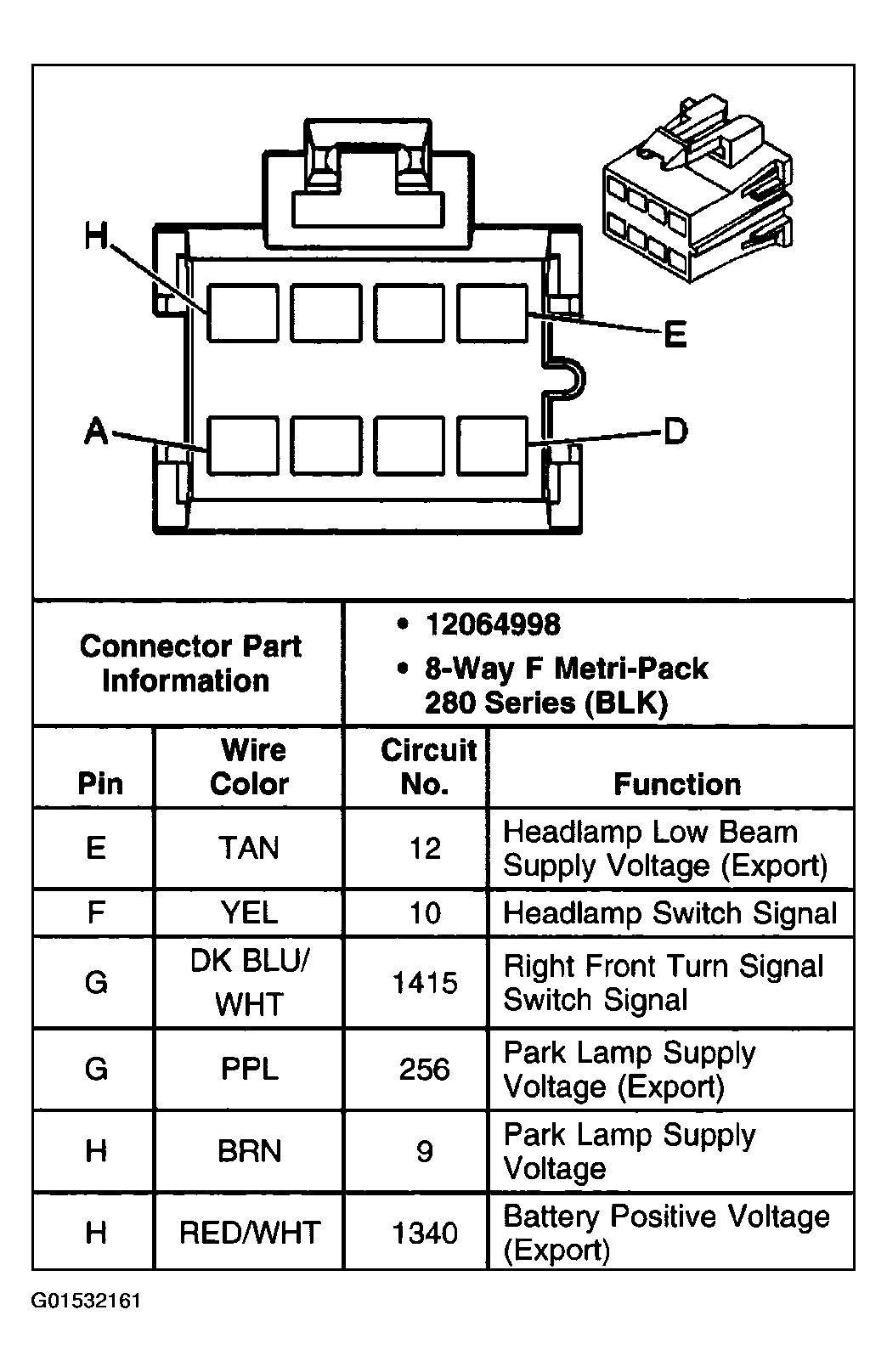

Fig 1: Daytime Running Lamps Control Module Connector End View C2 (2 Of 2)

G01532161

Courtesy of GENERAL MOTORS CORP.
