Wiper/Washer System Component Views

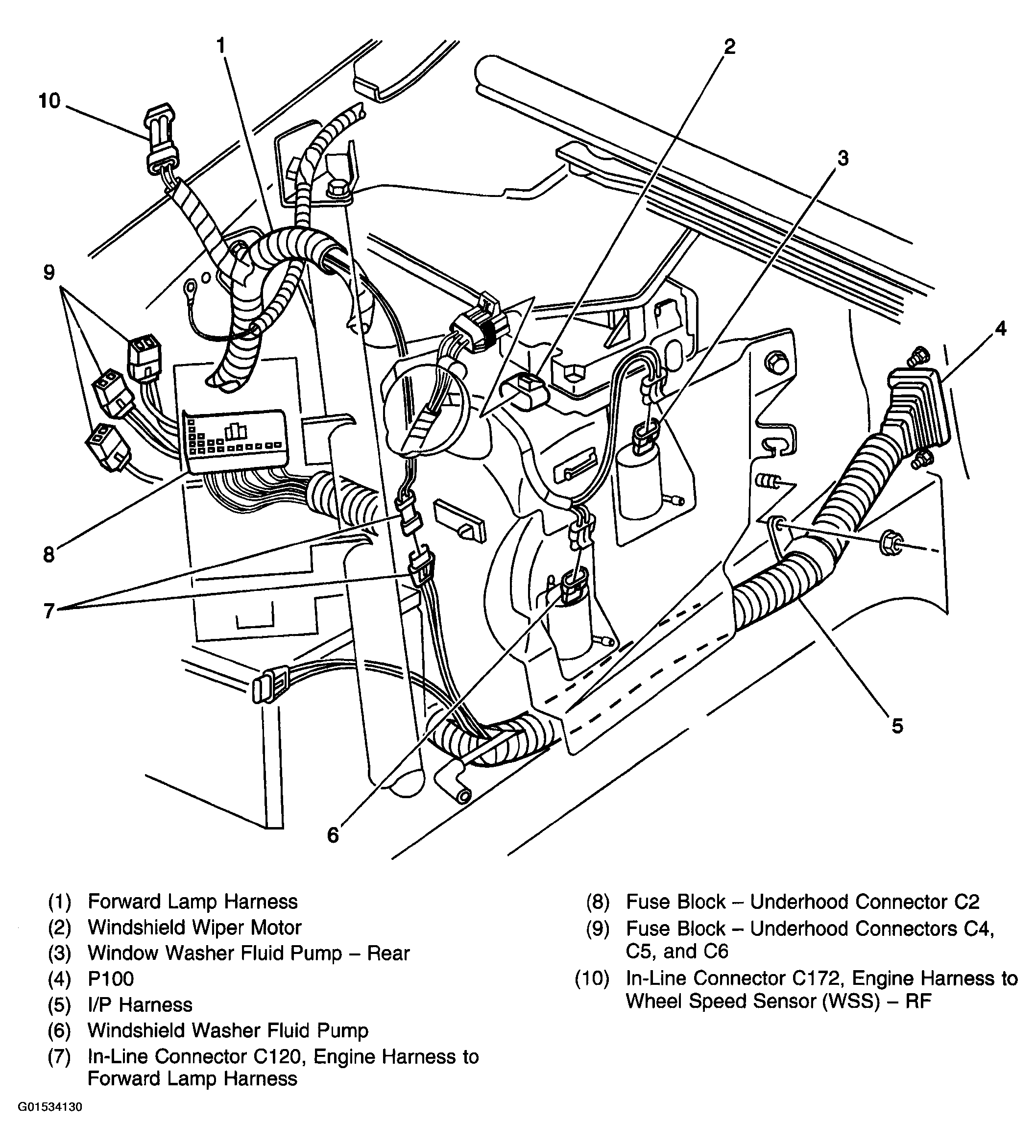

Fig 1: Rear, Left Side of Engine Compartment Component View
G01534130Courtesy of GENERAL MOTORS CORP.

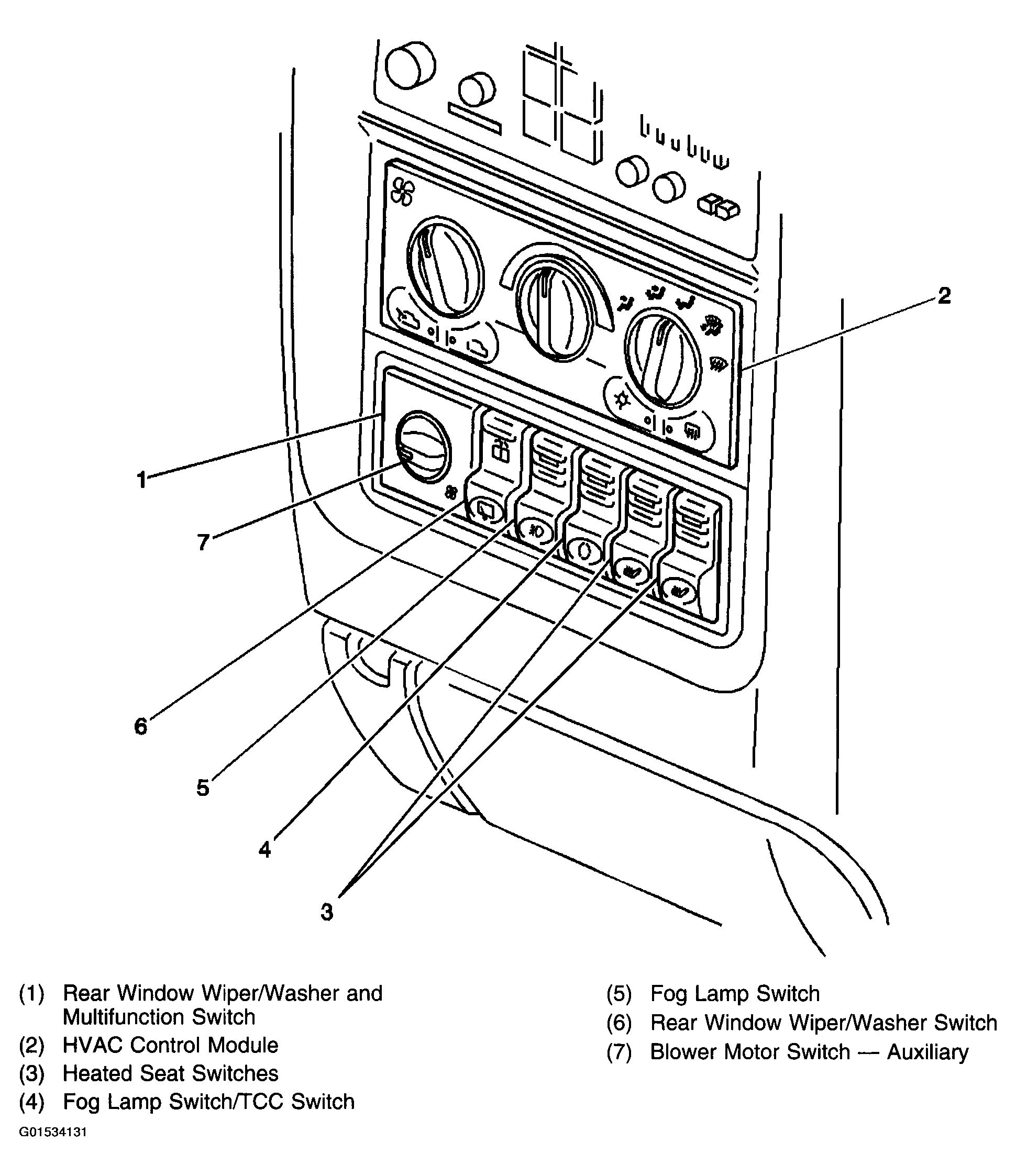

Fig 2: Center of I/P Component View
G01534131Courtesy of GENERAL MOTORS CORP.

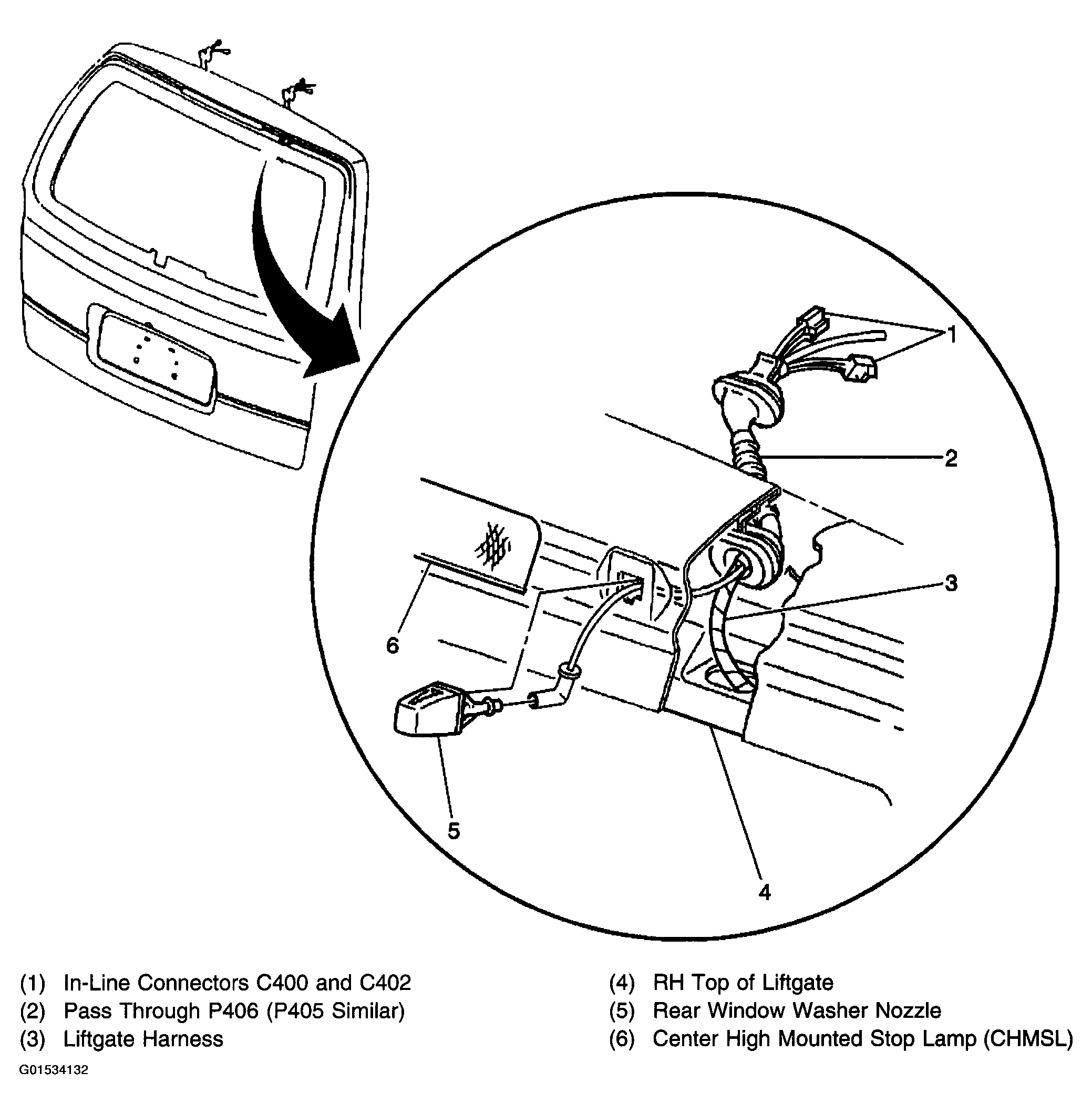

Fig 3: Top, RH Side of Liftgate Component View
G01534132Courtesy of GENERAL MOTORS CORP.
