Body Control System Component Views
Body Control System Component Views

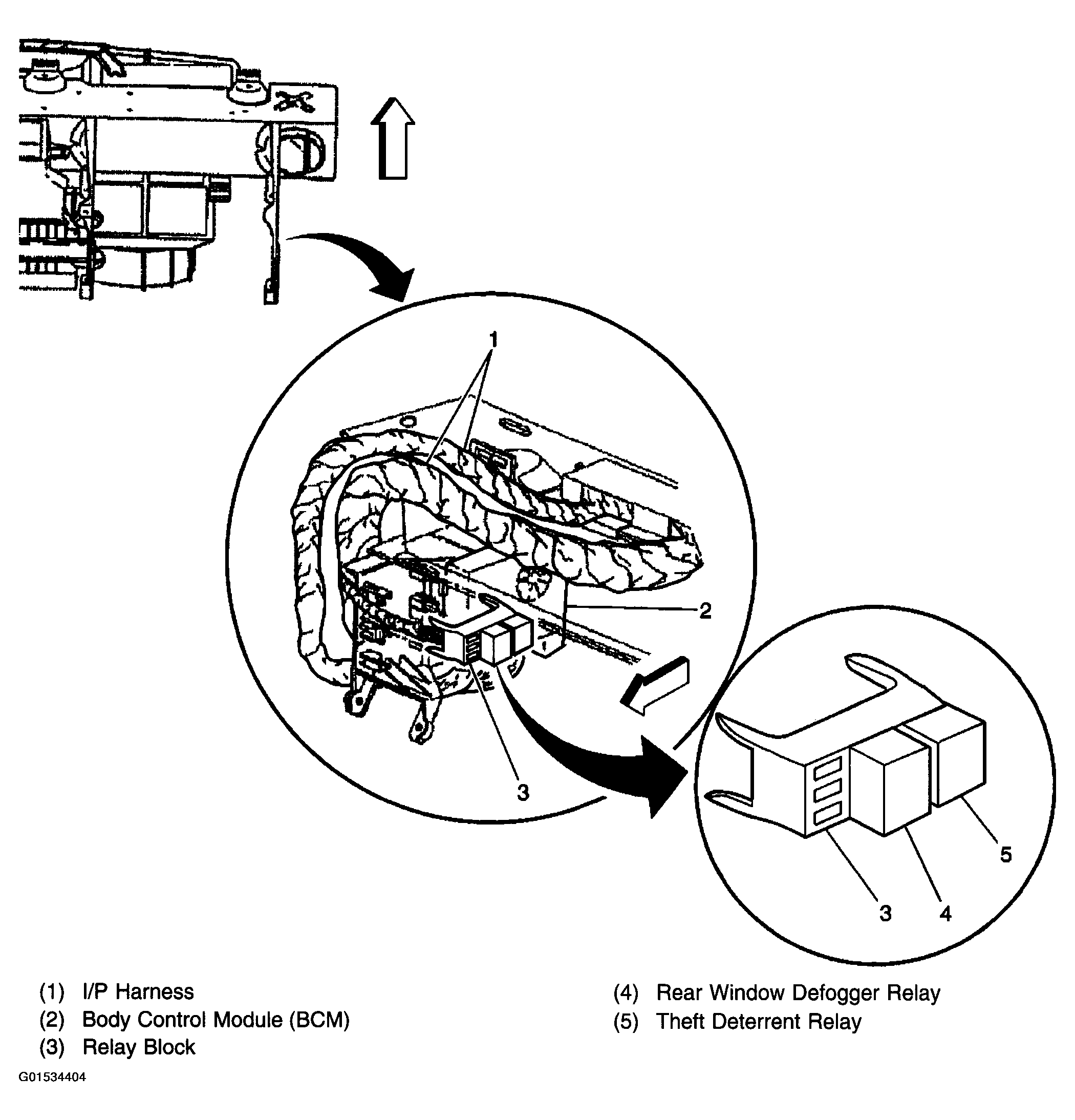

Fig 1: RH Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.

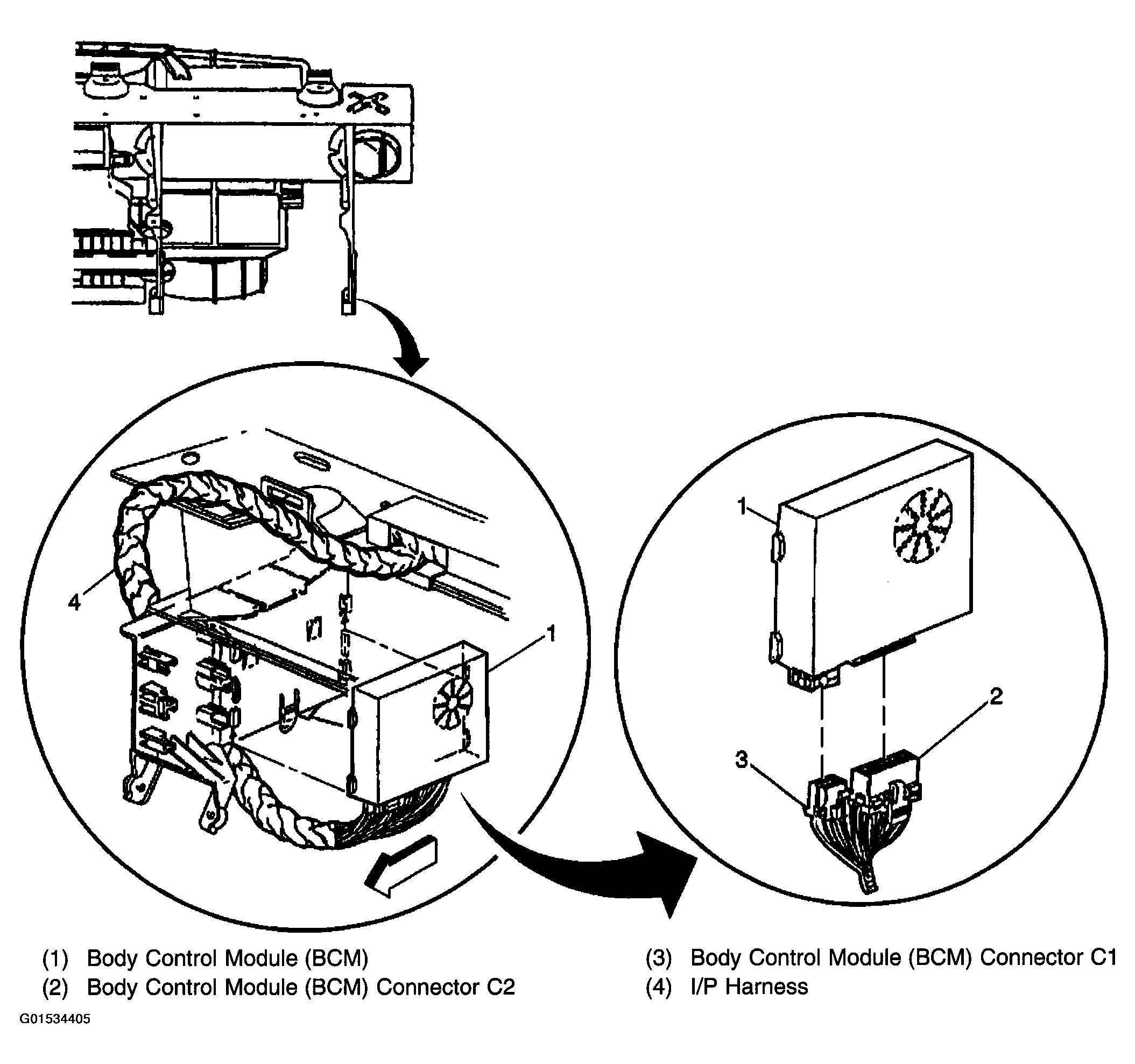

Fig 2: Below RH Side Of I/P Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
