LEMON Manuals
: Even more car manuals for everyone
Home
>>
Oldsmobile
>>
2003
>>
Bravada RWD
>>
Repair and Diagnosis
>>
Electrical
>>
Horns
>>
Component Locator
>>
Horns Connector End Views
Horns Connector End Views

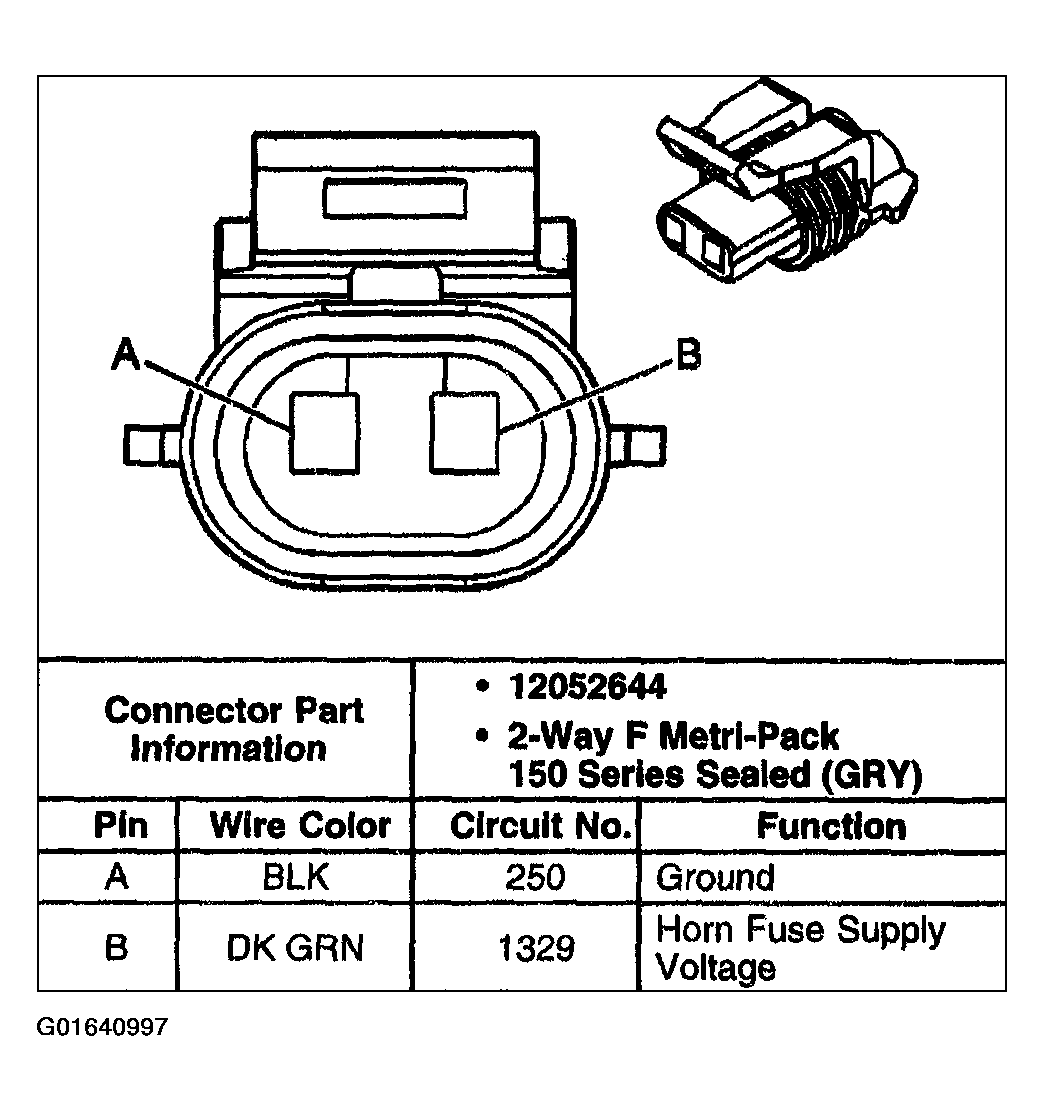

Fig 1: Identifying Horn Assembly Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
