Liftglass Ajar Switch Connector End View

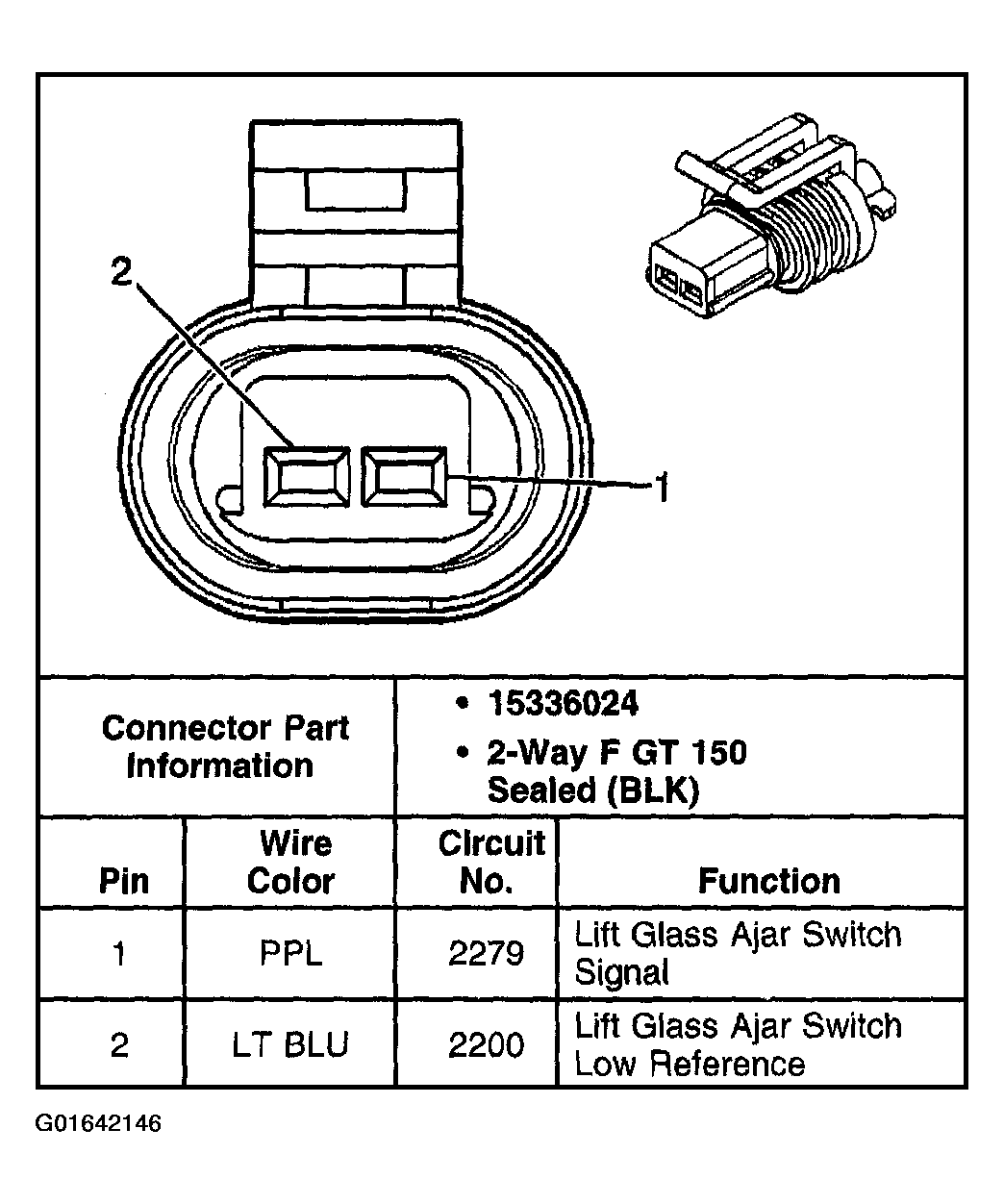

Fig 1: Liftglass Ajar Switch Connector End View

G01642146

Courtesy of GENERAL MOTORS CORP.
