Automatic Transmission Shift Lock Control Schematics

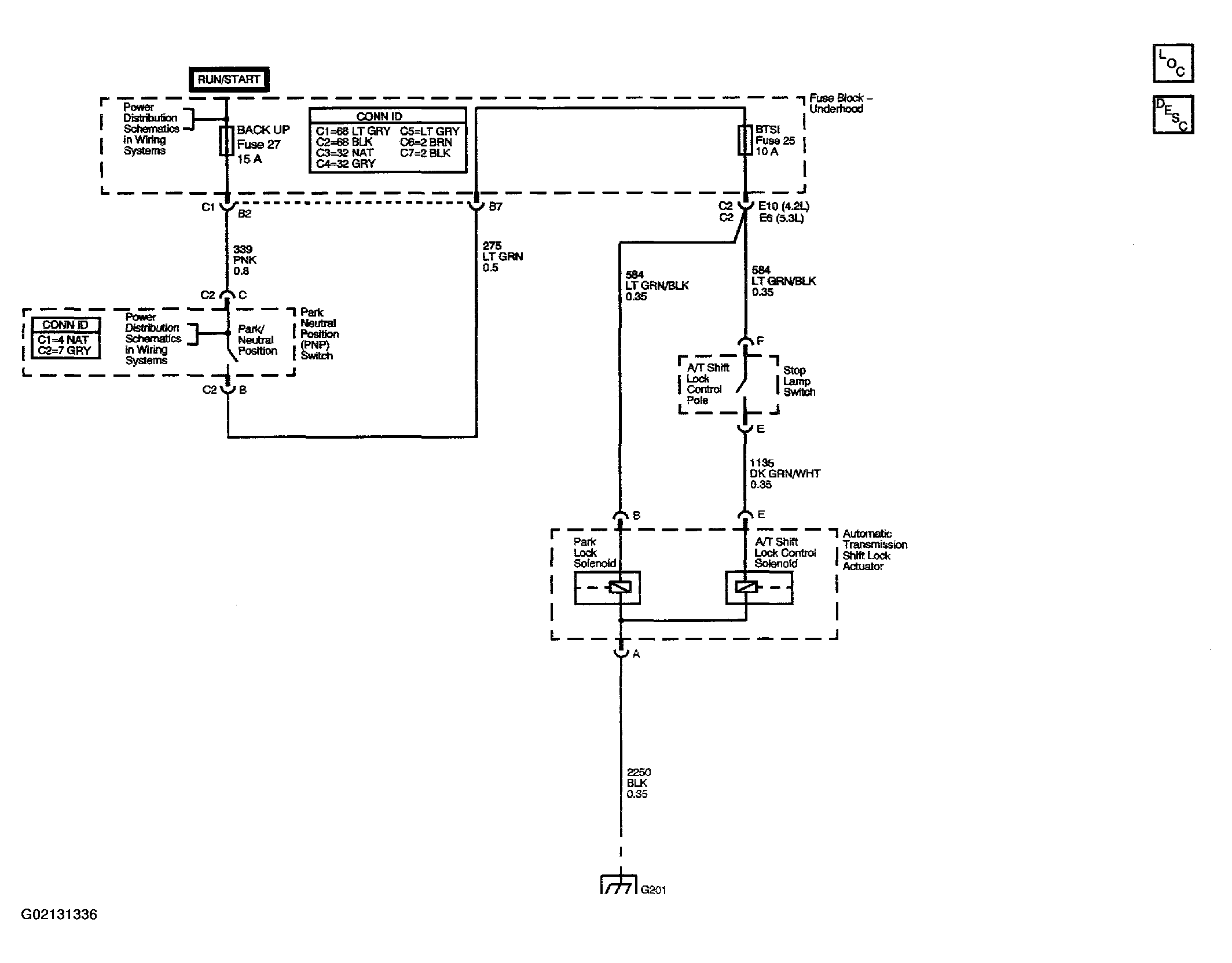

Fig 1: Automatic Transmission Shift Lock Control Schematic Diagram

G02131336

Courtesy of GENERAL MOTORS CORP.
