Removal Procedure
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
in General Information.
- Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
in Tires and Wheels.

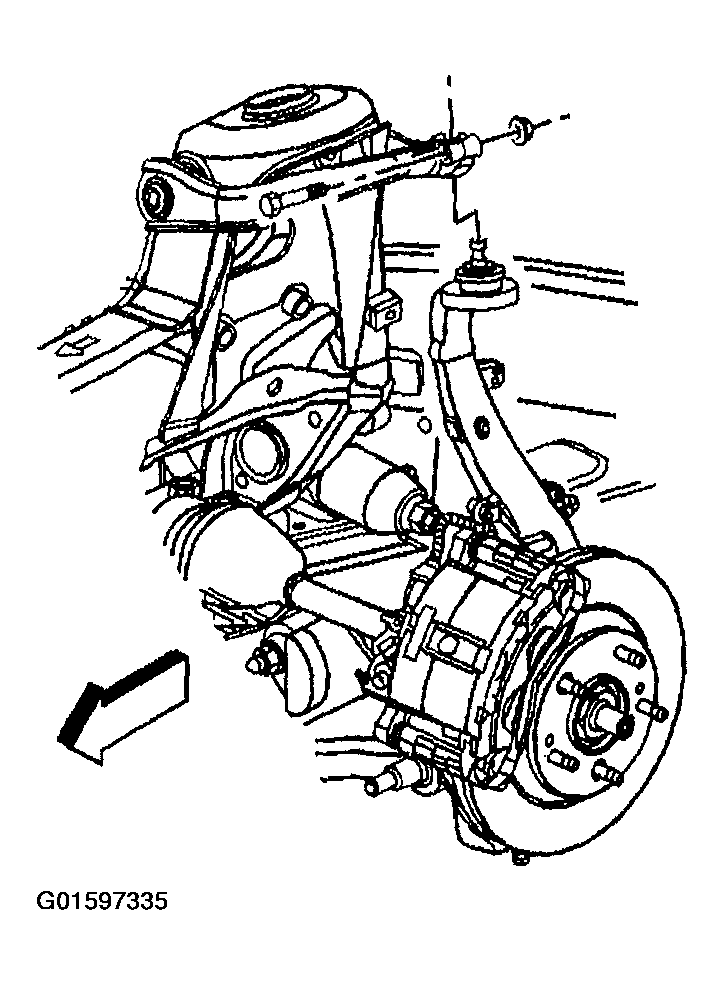

- Remove the upper ball joint to upper control arm pinch bolt and nut.
- Disconnect the upper control arm from the steering knuckle.
Courtesy of GENERAL MOTORS CORP.

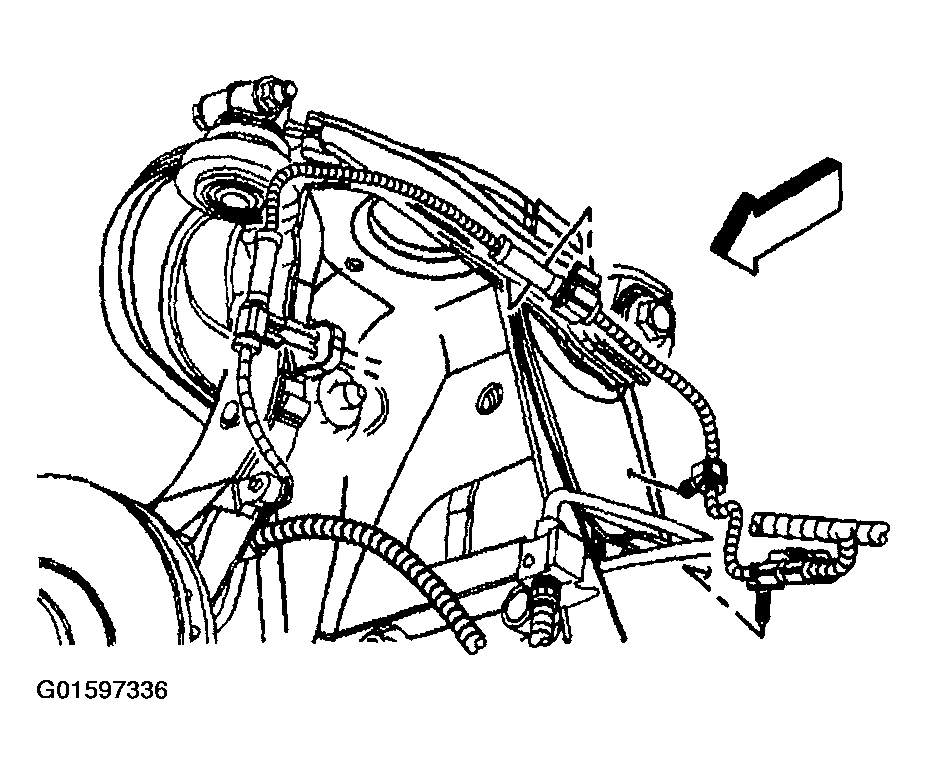

- Disconnect the ABS wheel speed sensor wiring harness from the upper control arm.
Courtesy of GENERAL MOTORS CORP.

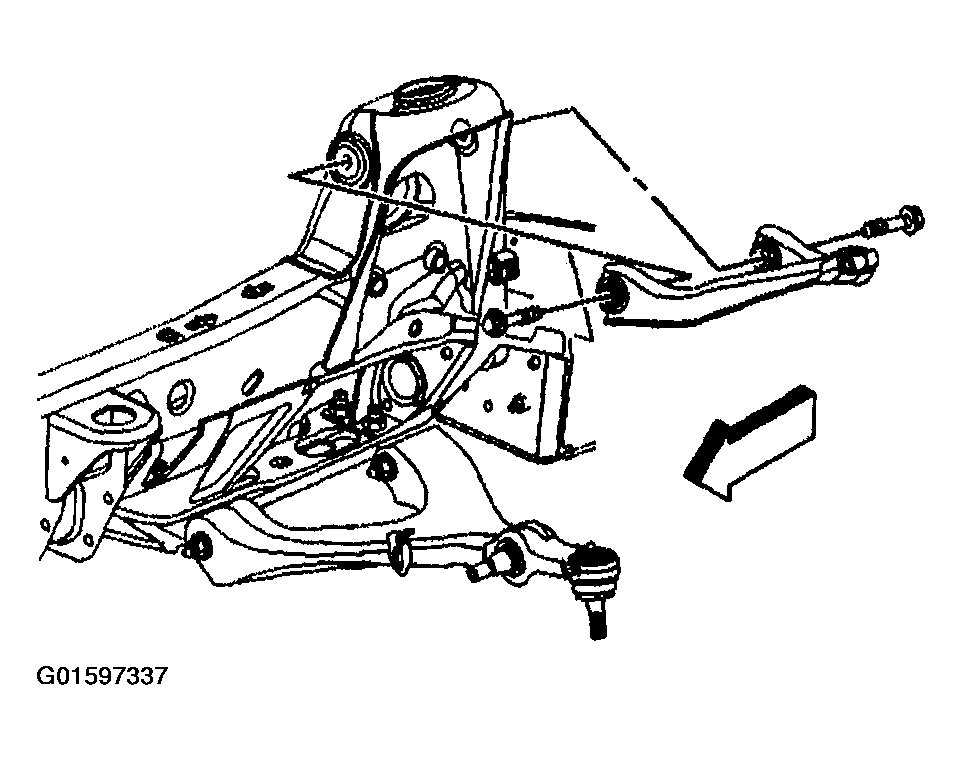

- Remove the upper control arm mounting bolts.
- Remove the upper control arm.
Courtesy of GENERAL MOTORS CORP.
