Power Steering Gear Disassembled View

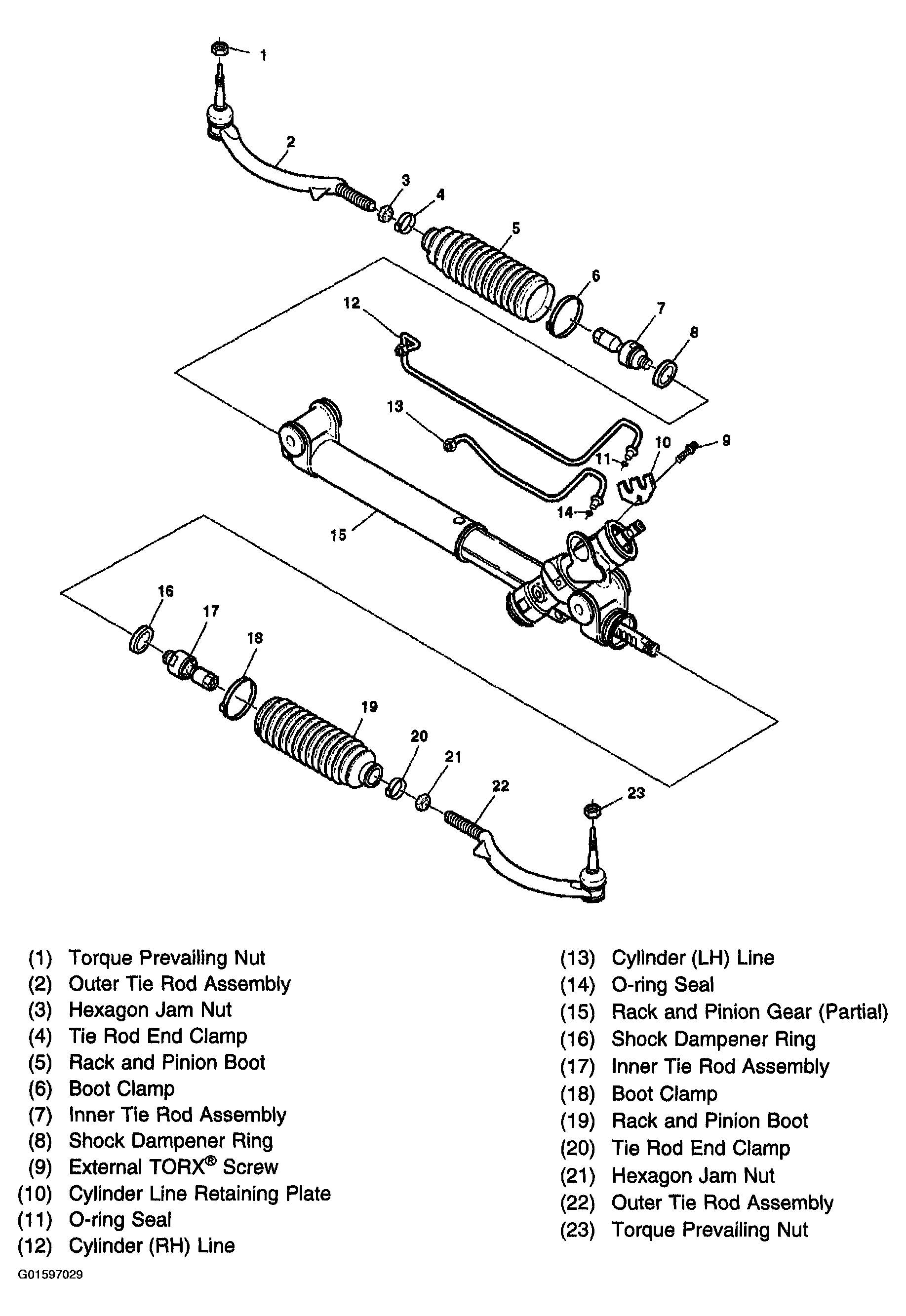

Fig 1: Disassembled View Of Power Steering Gear

G01597029

Courtesy of GENERAL MOTORS CORP.
