Transmission Range Switch Connector End View, Wiring Harness Side

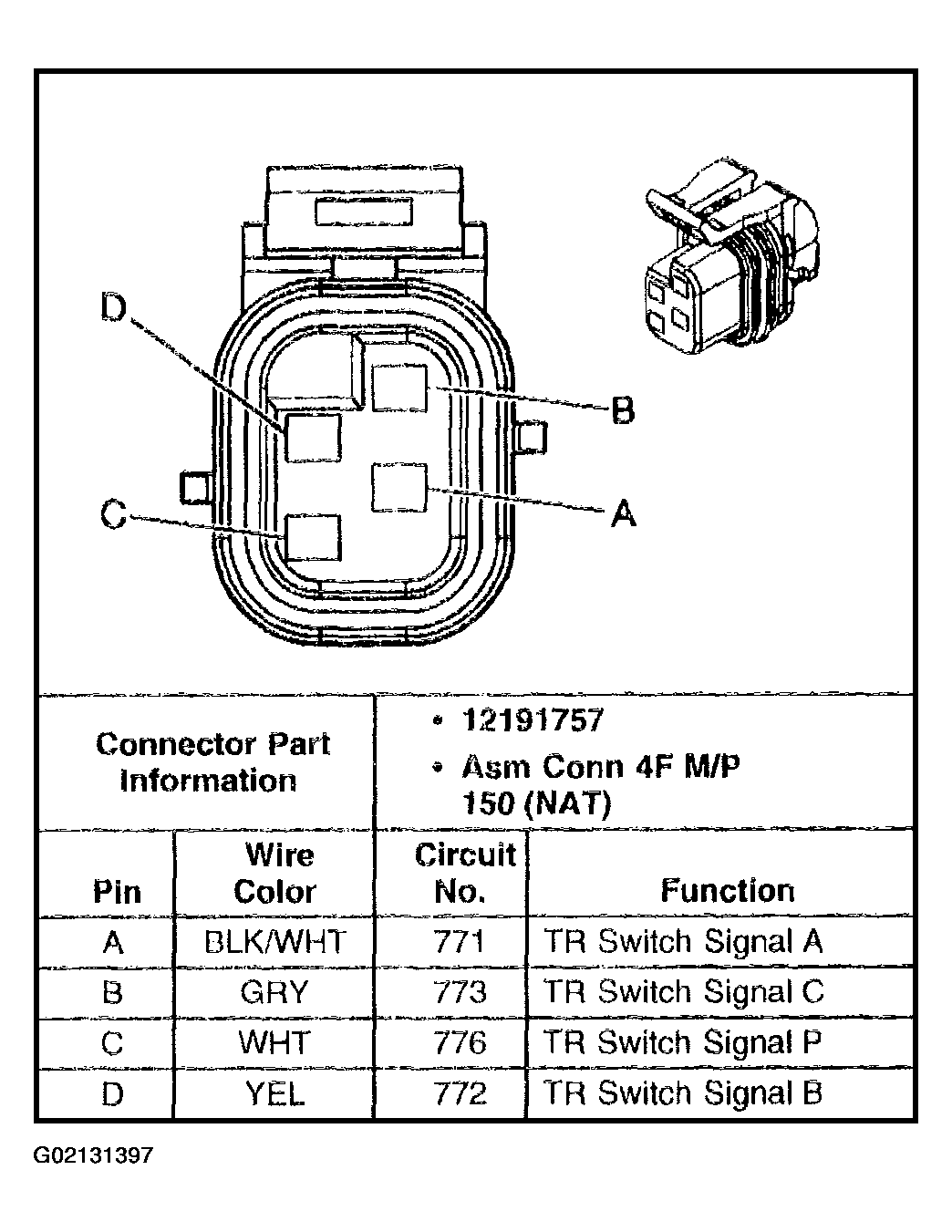

Fig 1: Transmission Range Switch Connector End View, Wiring Harness Side

G02131397

Courtesy of GENERAL MOTORS CORP.
