Connector End View
>>
Sunroof Switch Connector End View
Sunroof Switch Connector End View

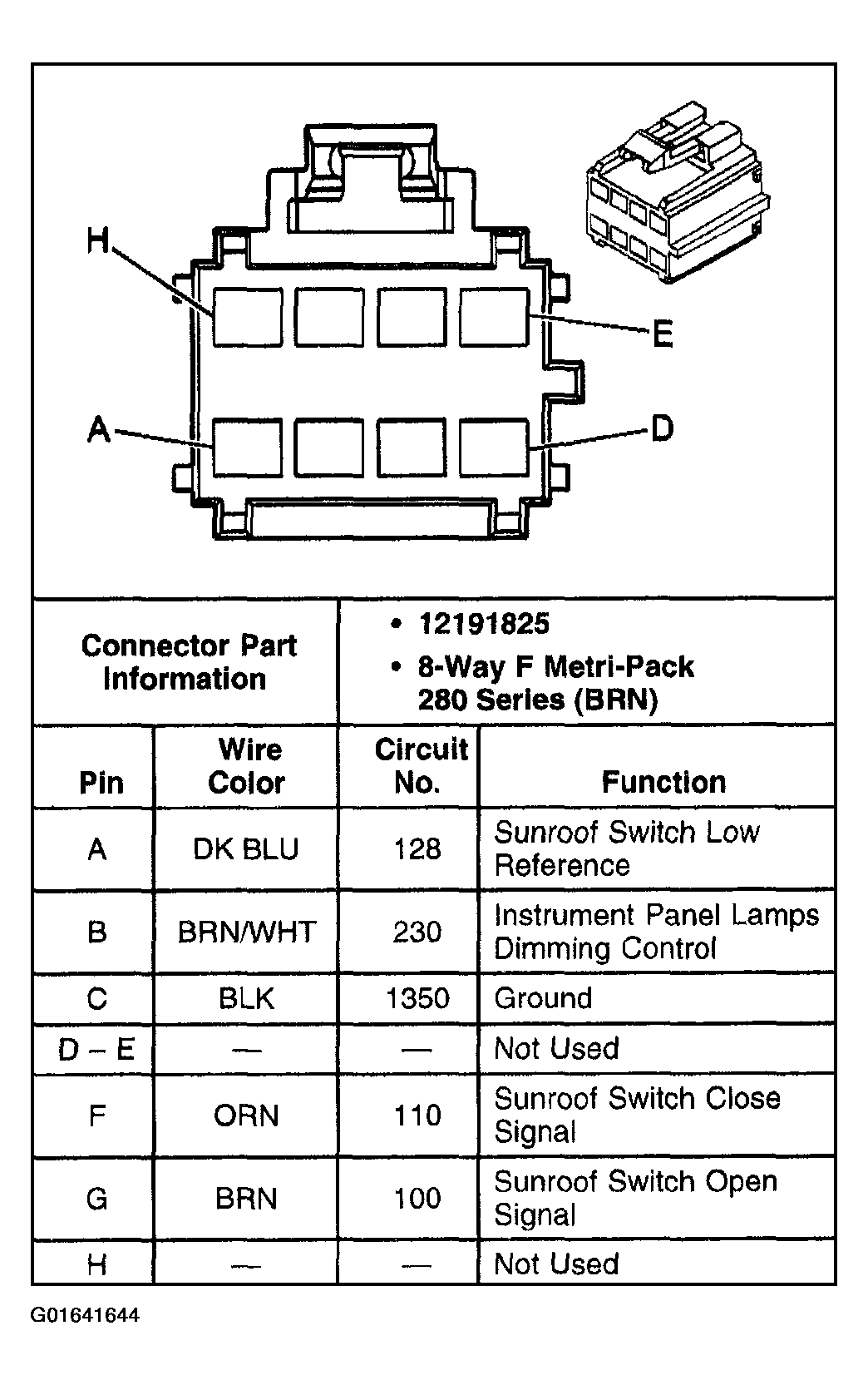

Fig 1: Sunroof Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
