Speaker Connector End View - RF Door

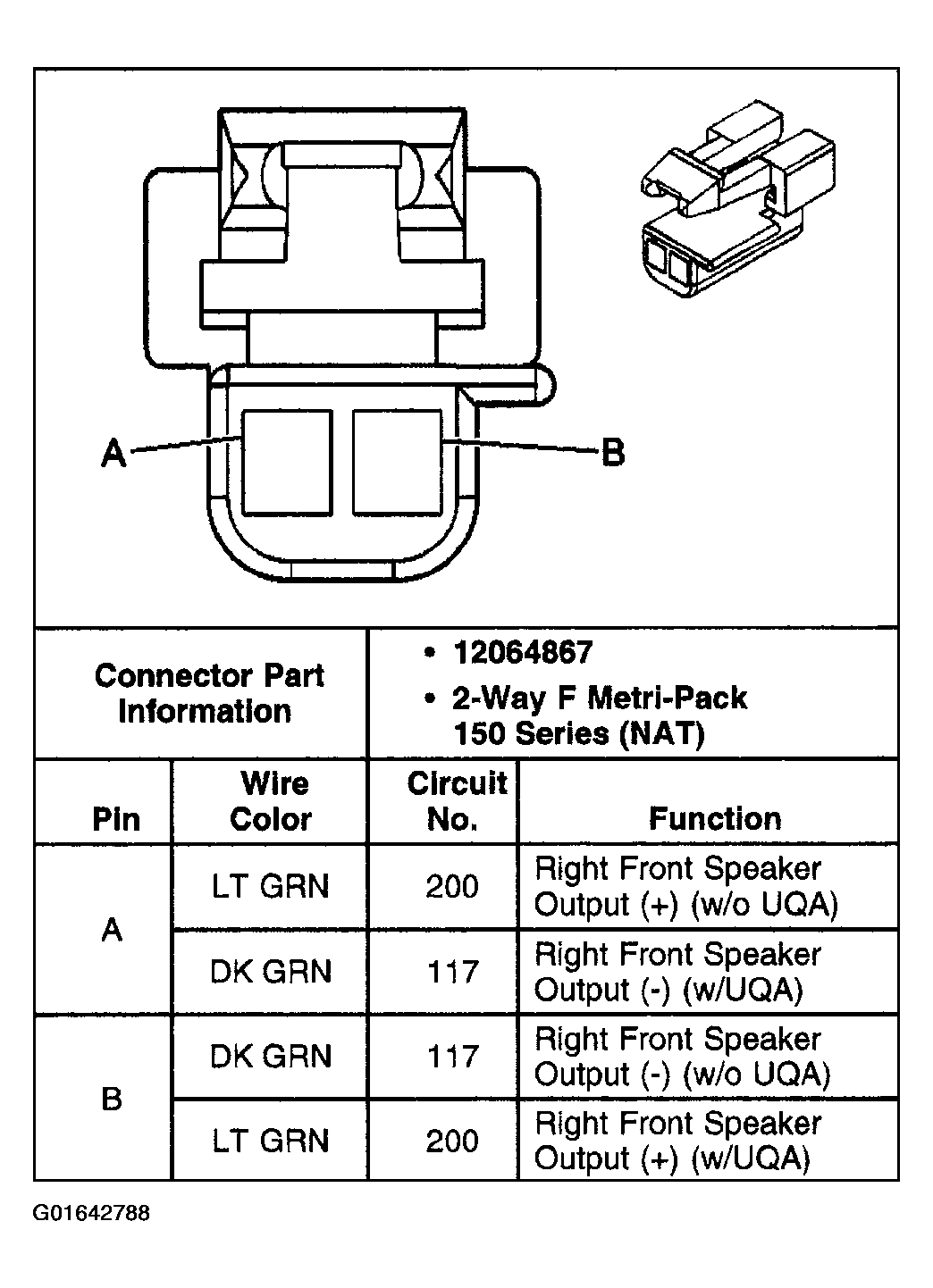

Fig 1: Speaker Connector End View - RF Door

G01642788

Courtesy of GENERAL MOTORS CORP.
