Seat Adjuster Switch Connector End View - Driver (W/Memory Seat)

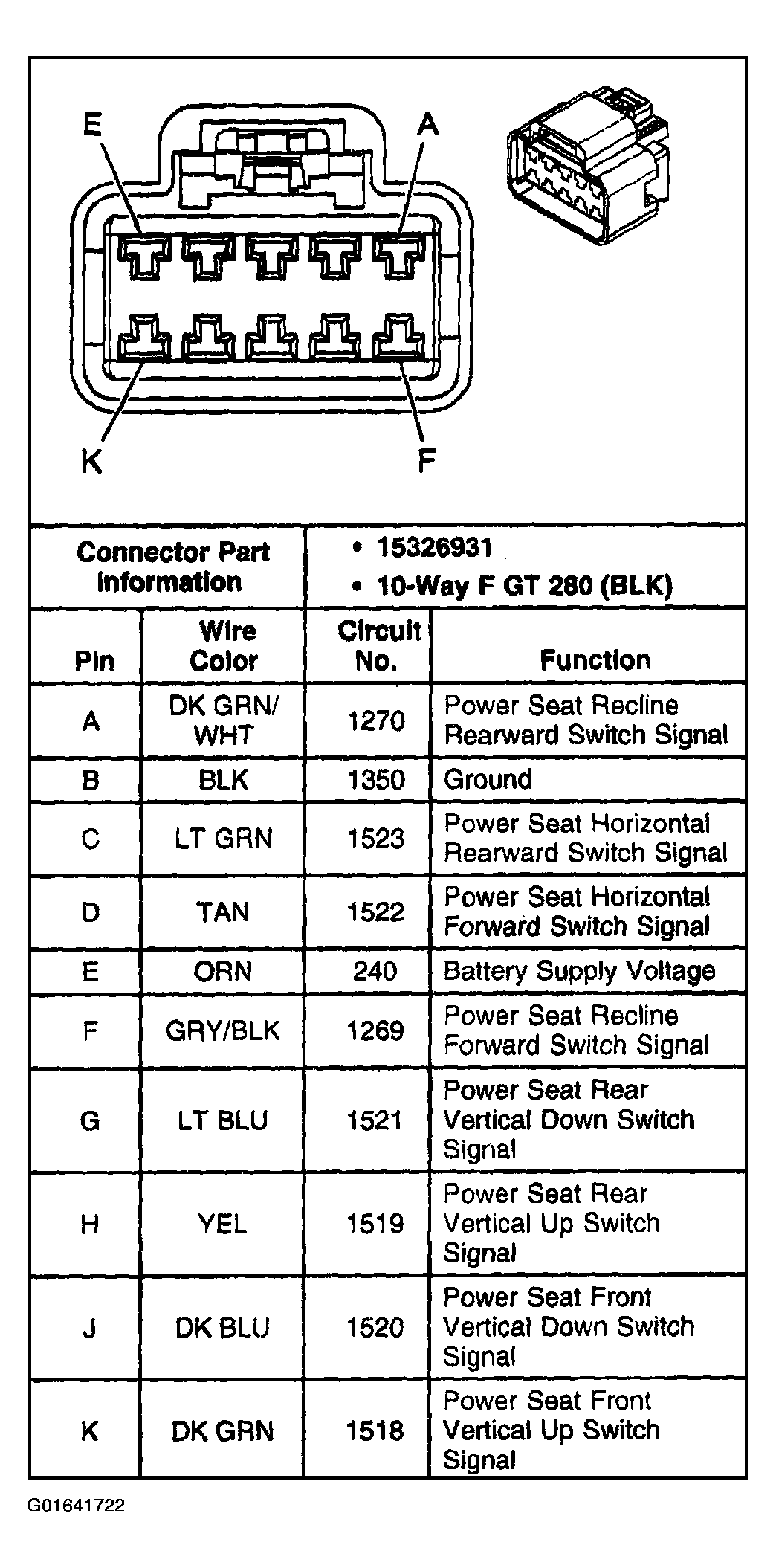

Fig 1: Seat Adjuster Switch Connector End View - Driver (W/Memory Seat)

G01641722

Courtesy of GENERAL MOTORS CORP.
