Recirculation Actuator Connector End View

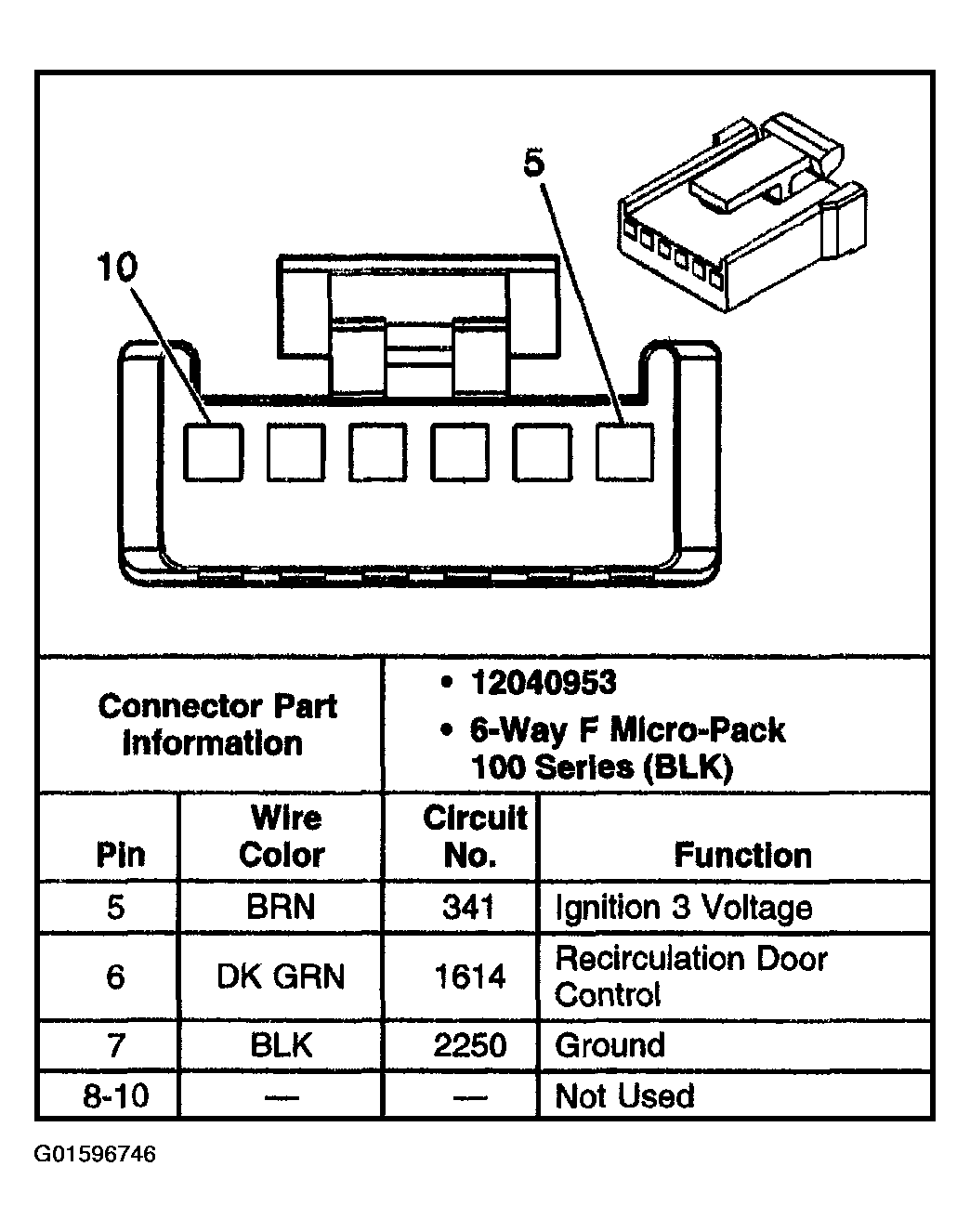

Fig 1: Recirculation Actuator Connector End View

G01596746

Courtesy of GENERAL MOTORS CORP.
