Radio Connector End View C2 (w/UE1)
Radio Connector End View C2 (w/UE1)

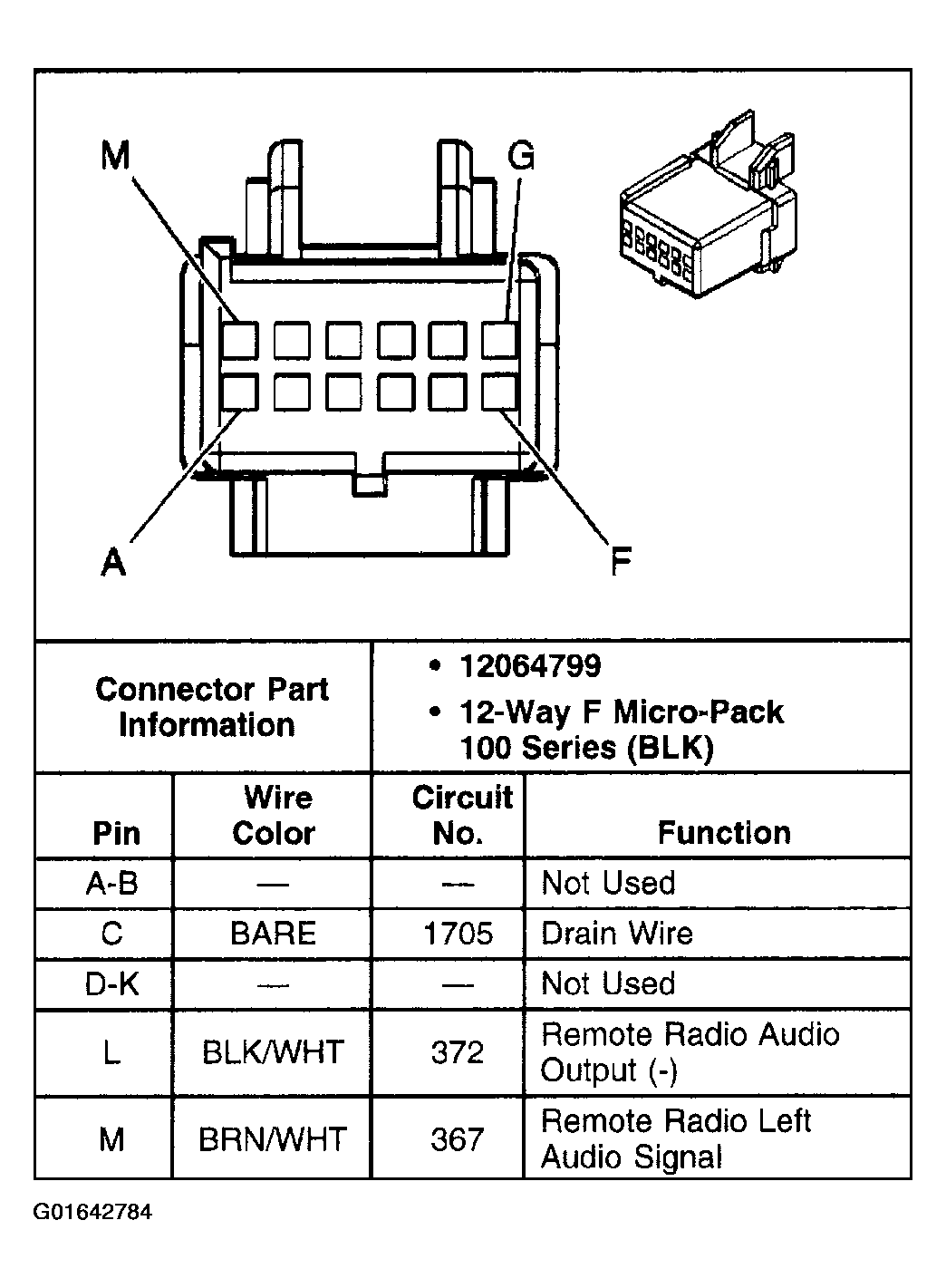

Fig 1: Radio Connector End View C2 (w/UE1)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
