RF Miniwedge (Door Jamb Switch) Connector End View

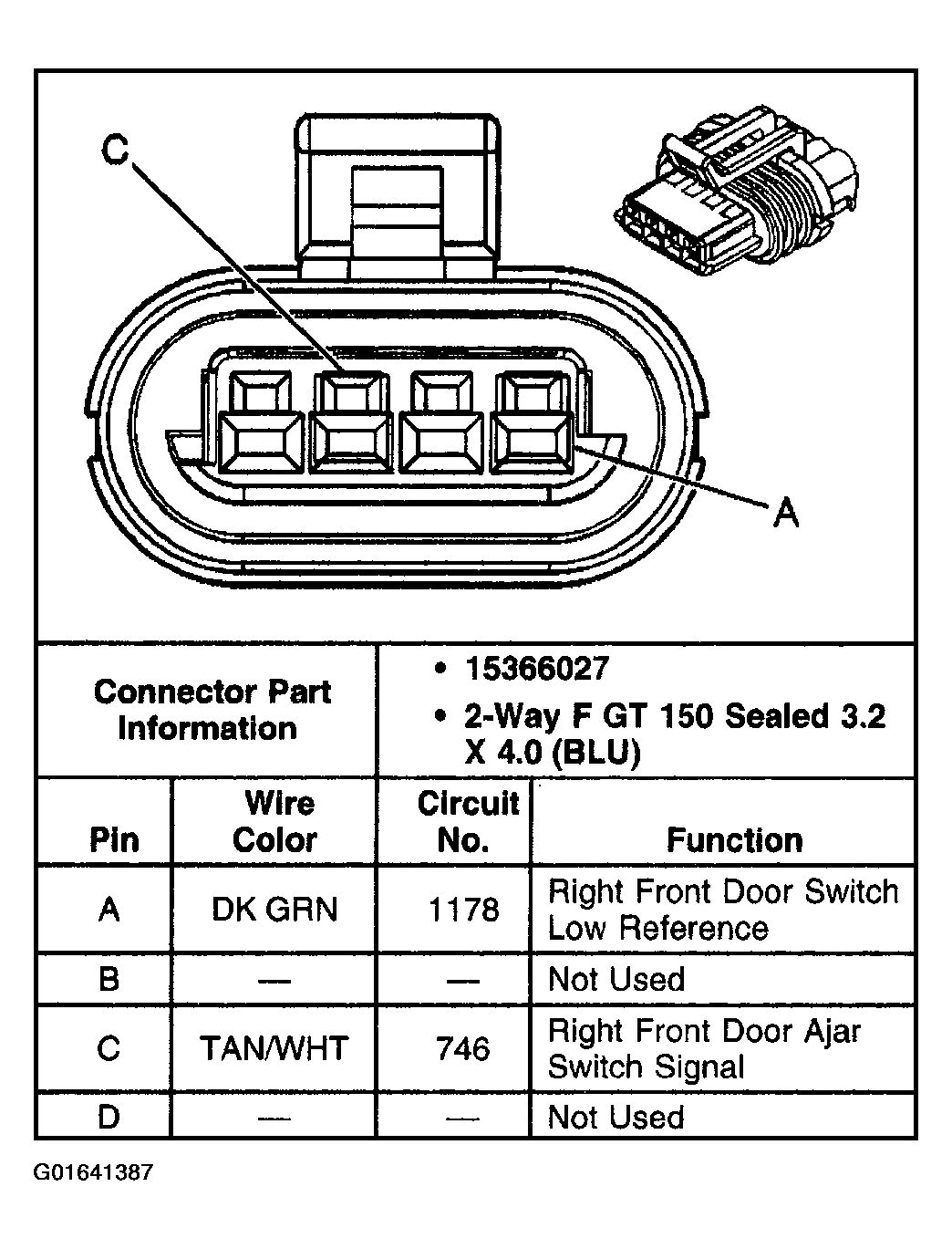

Fig 1: RF Miniwedge (Door Jamb Switch) Connector End View
G01641387Courtesy of GENERAL MOTORS CORP.
