Passlock Sensor Connector End View

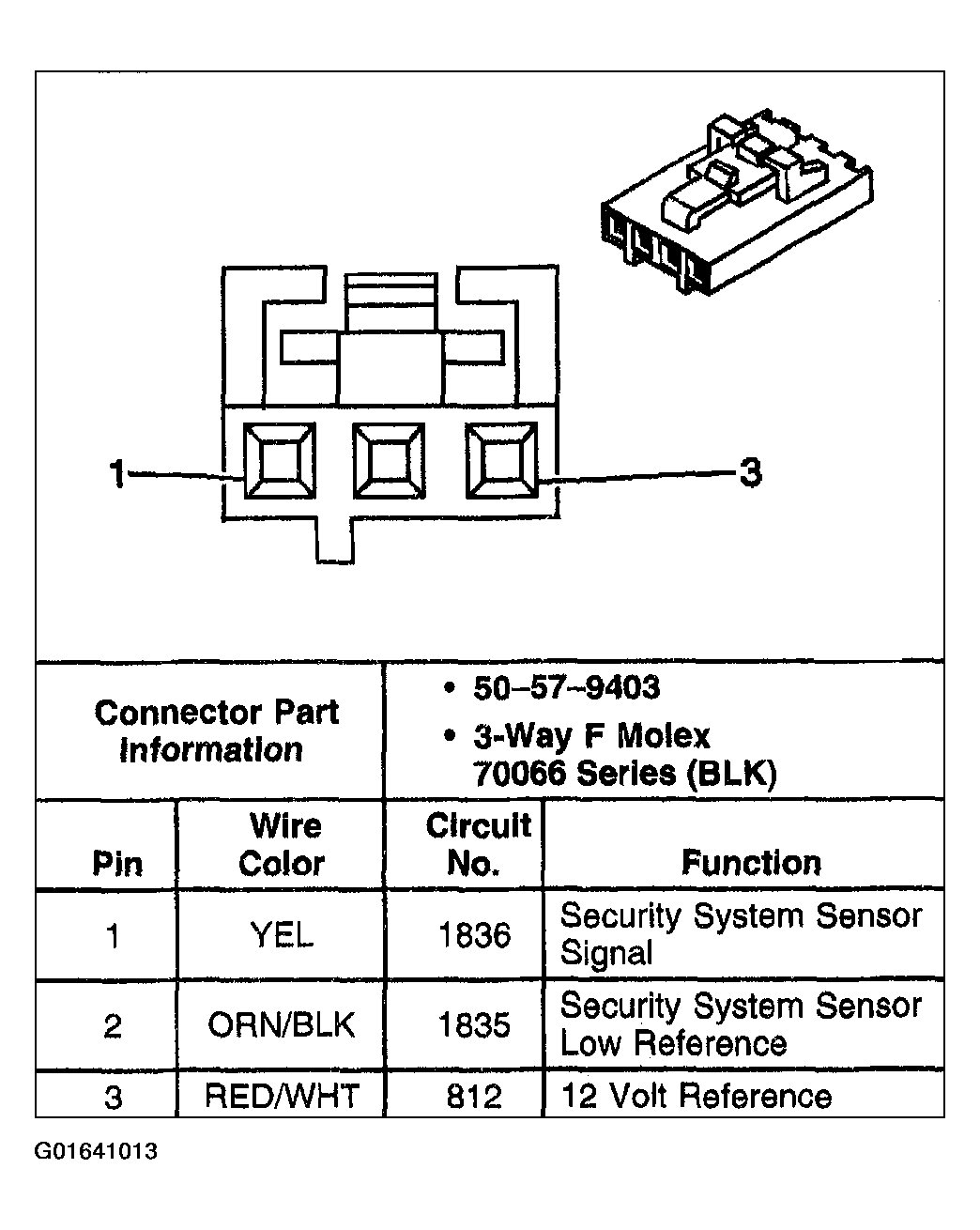

Fig 1: Passlock Sensor Connector End View

G01641013

Courtesy of GENERAL MOTORS CORP.
