Lumbar Adjuster Switch Connector End View - Driver (W/Memory Seat)

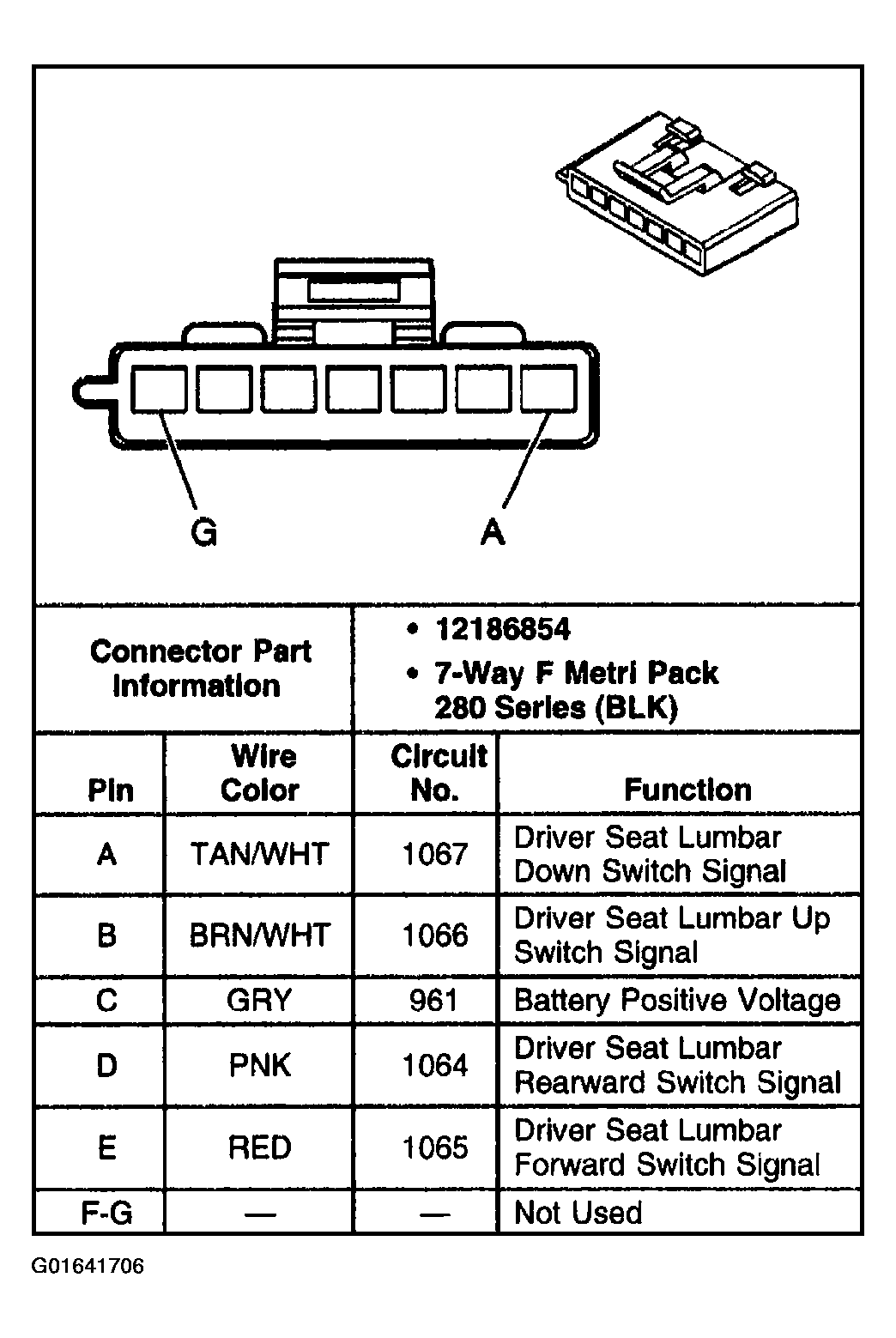

Fig 1: Lumbar Adjuster Switch Connector End View - Driver (W/Memory Seat)

G01641706

Courtesy of GENERAL MOTORS CORP.
