Liftgate Ajar Switch Connector End View

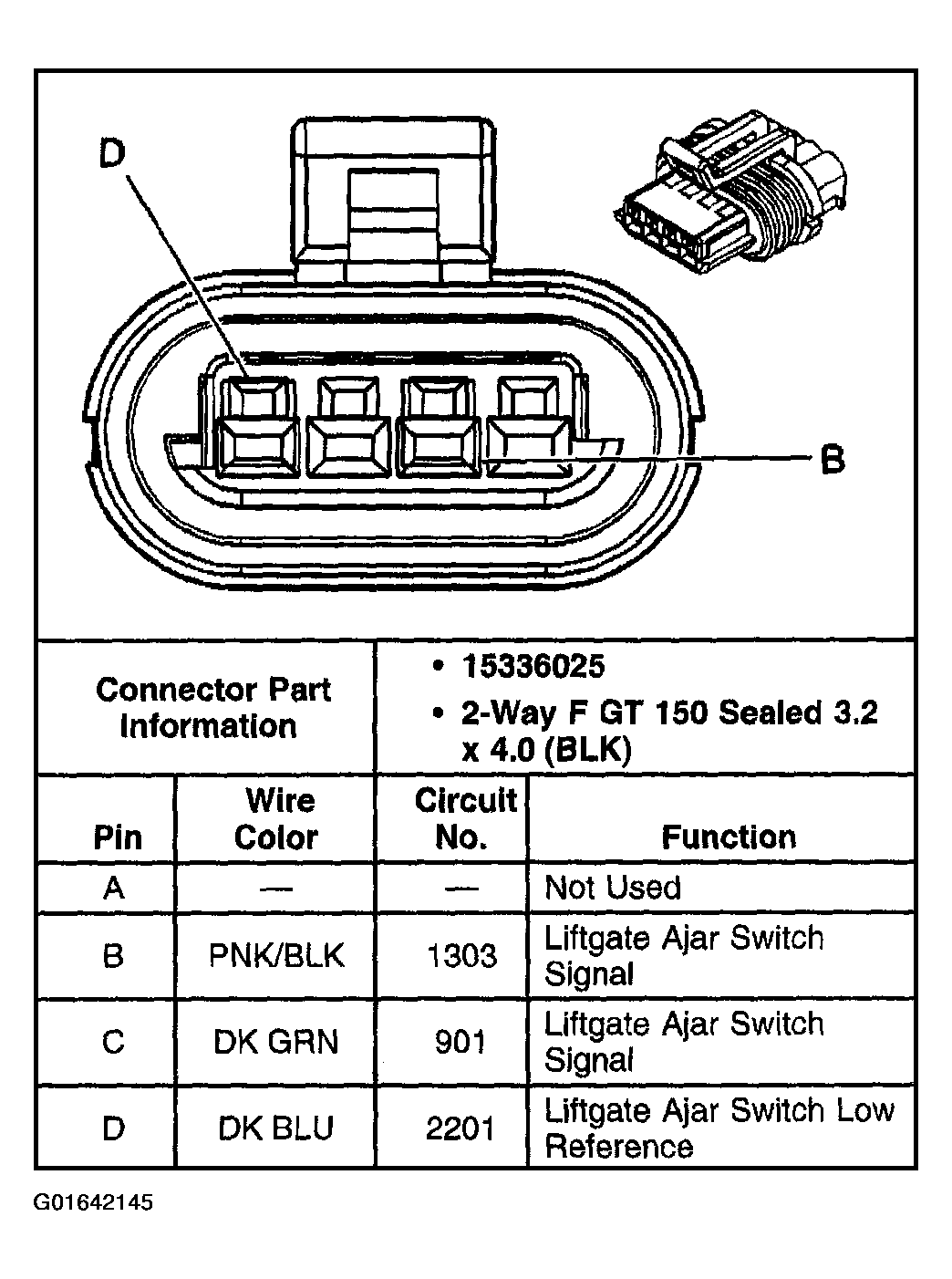

Fig 1: Liftgate Ajar Switch Connector End View

G01642145

Courtesy of GENERAL MOTORS CORP.
