LR Window Switch Connector End View

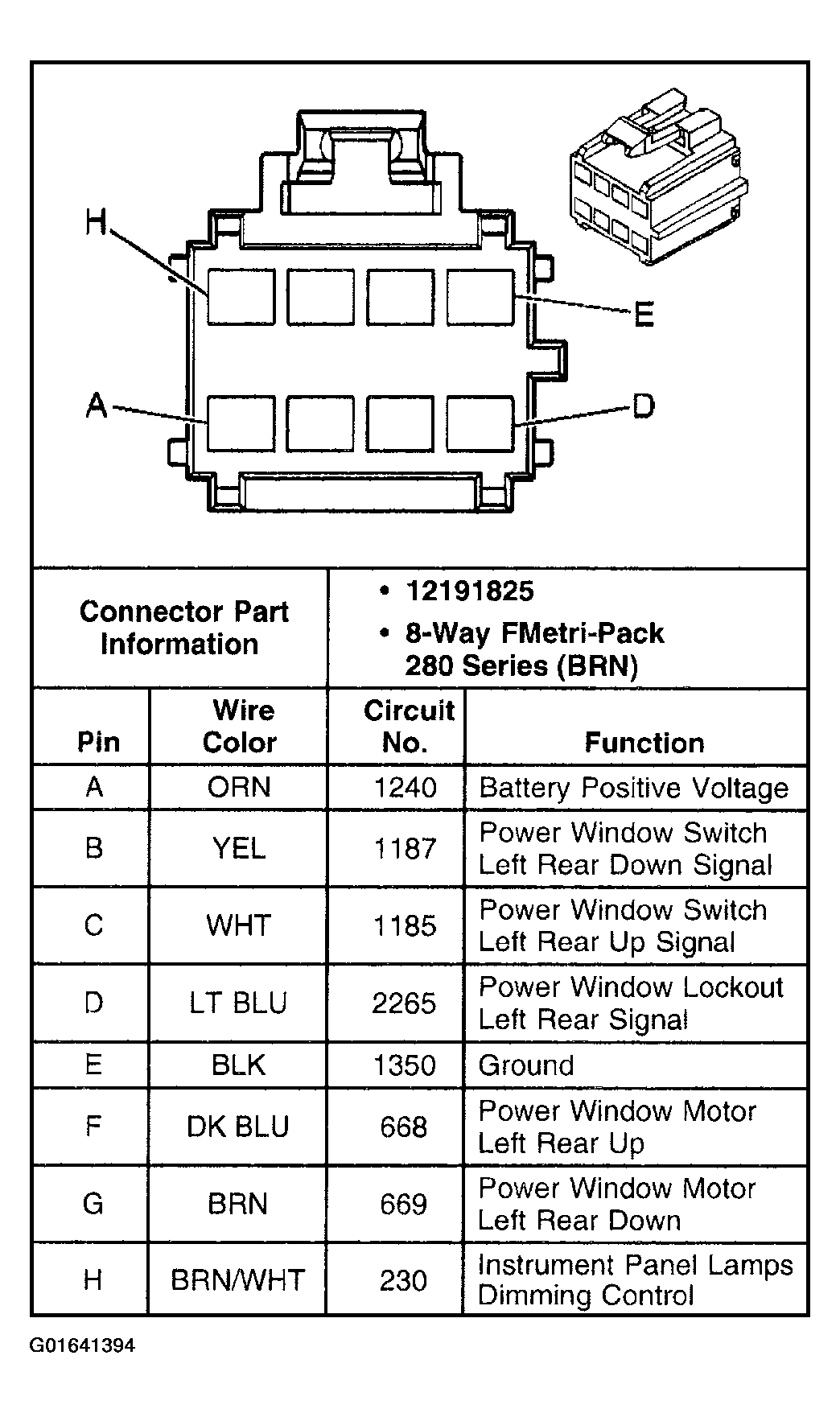

Fig 1: LR Window Switch Connector End View
G01641394Courtesy of GENERAL MOTORS CORP.
