Heated Seat Element Connector End View - Driver Cushion

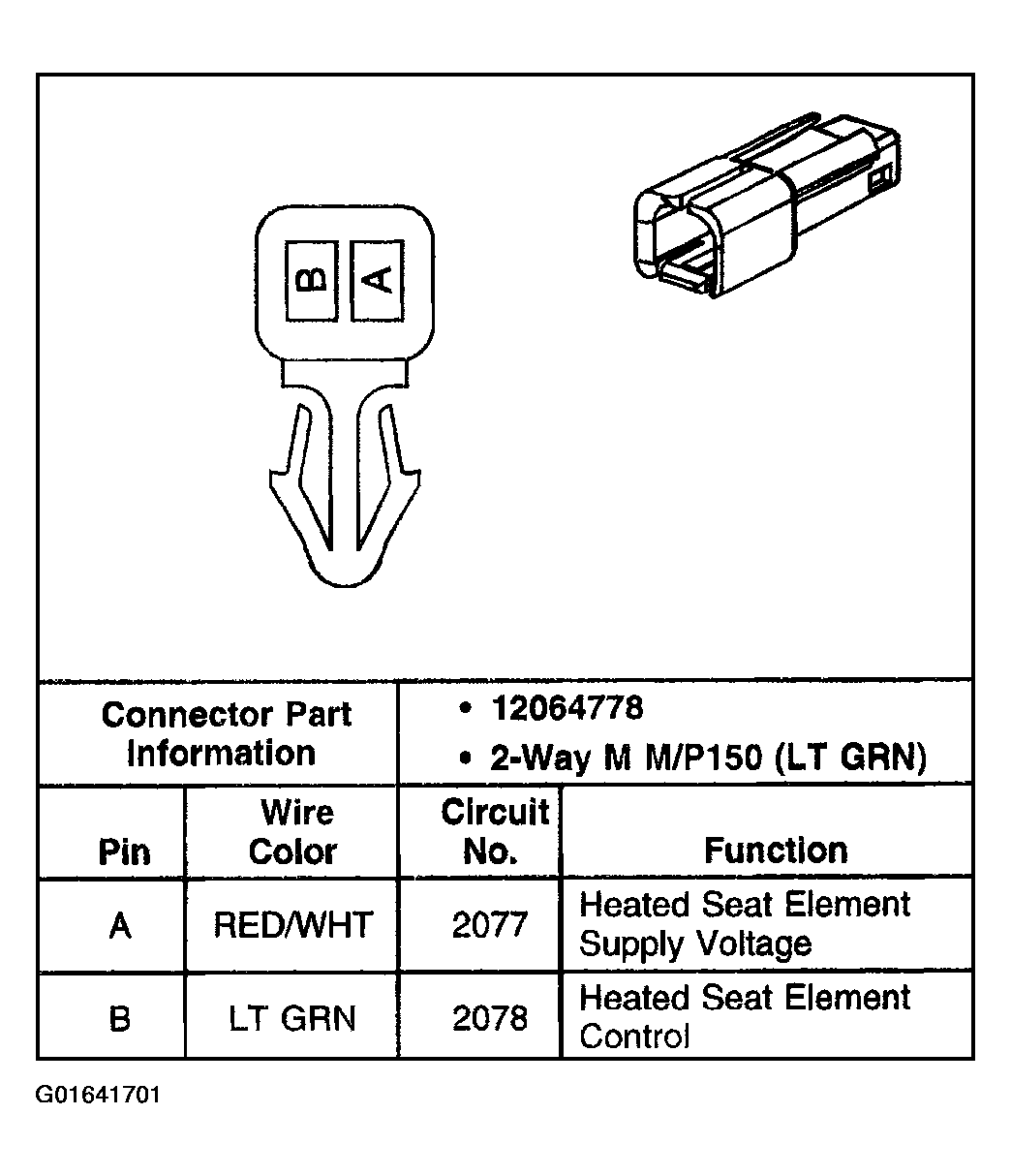

Fig 1: Heated Seat Element Connector End View - Driver Cushion

G01641701

Courtesy of GENERAL MOTORS CORP.
