Heated Seat Element And Thermistor Assembly Connector End View - Front Passenger Back

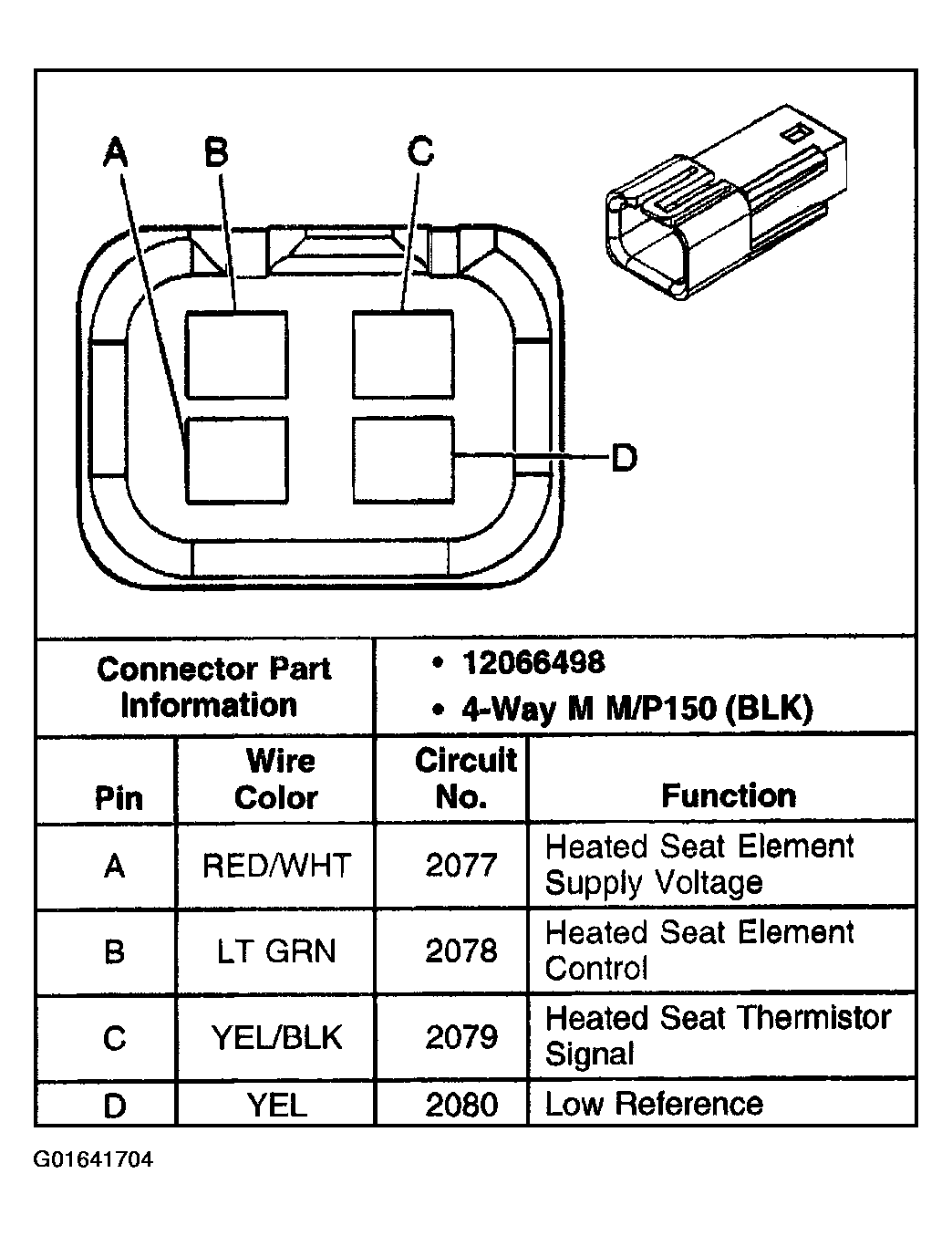

Fig 1: Heated Seat Element And Thermistor Assembly Connector End View - Front Passenger Back
G01641704Courtesy of GENERAL MOTORS CORP.
