Headlamp Washer Fluid Pump Connector End View

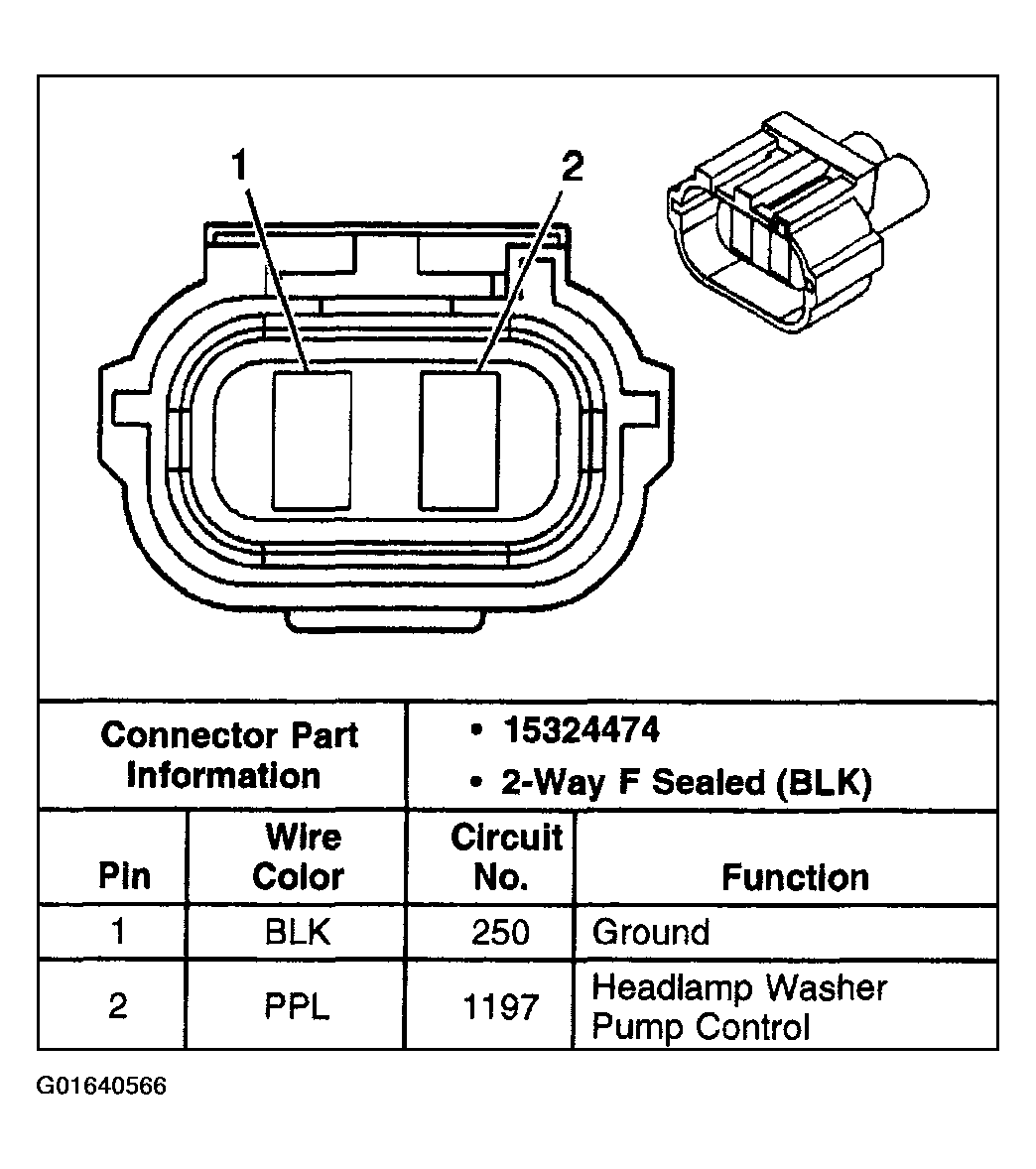

Fig 1: Headlamp Washer Fluid Pump Connector End View

G01640566

Courtesy of GENERAL MOTORS CORP.
