Connector End View
>>
Fuel/Trip Switch Connector End View
Fuel/Trip Switch Connector End View

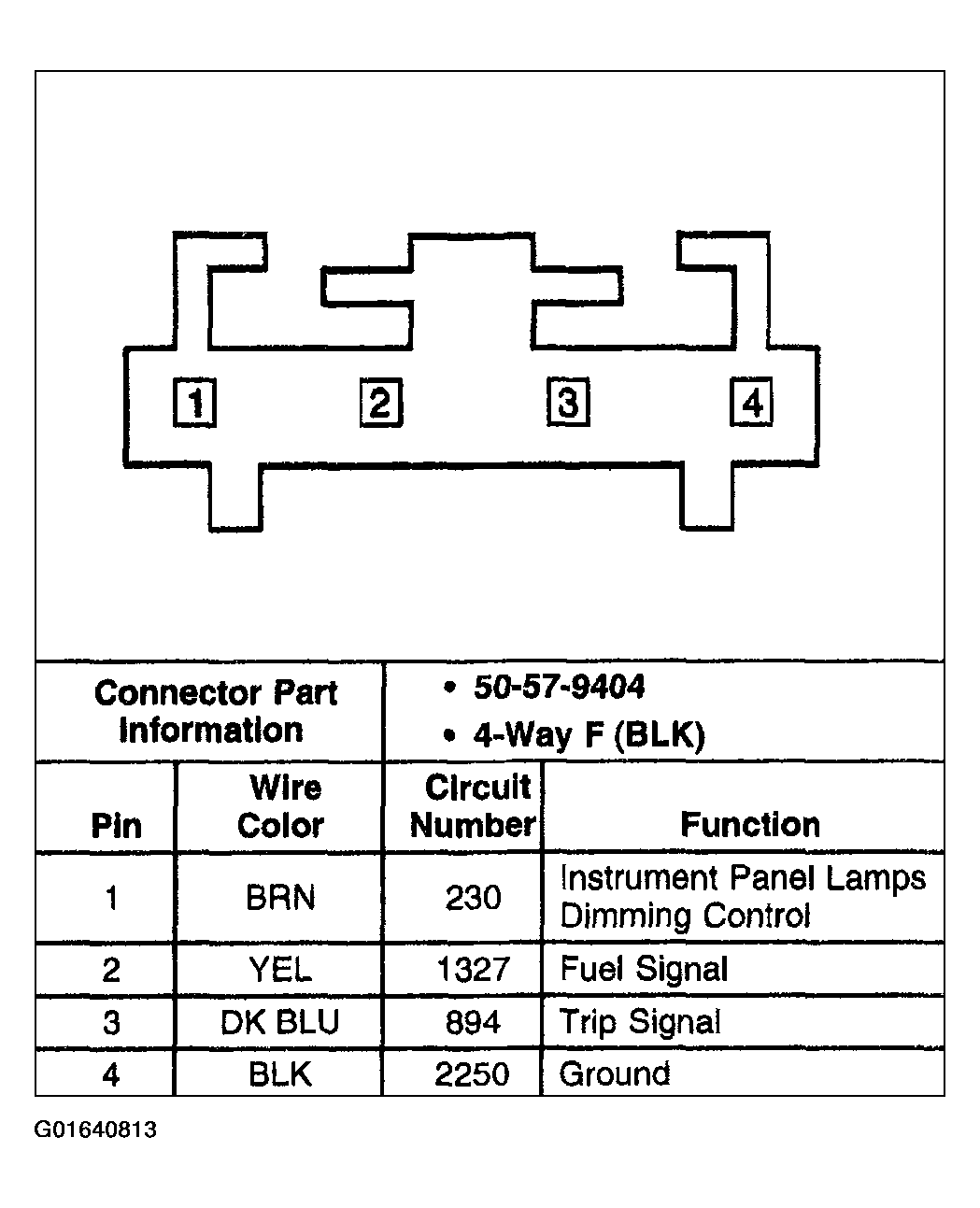

Fig 1: Fuel/Trip Switch Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
