Front Passenger Door Lock Actuator Connector End View

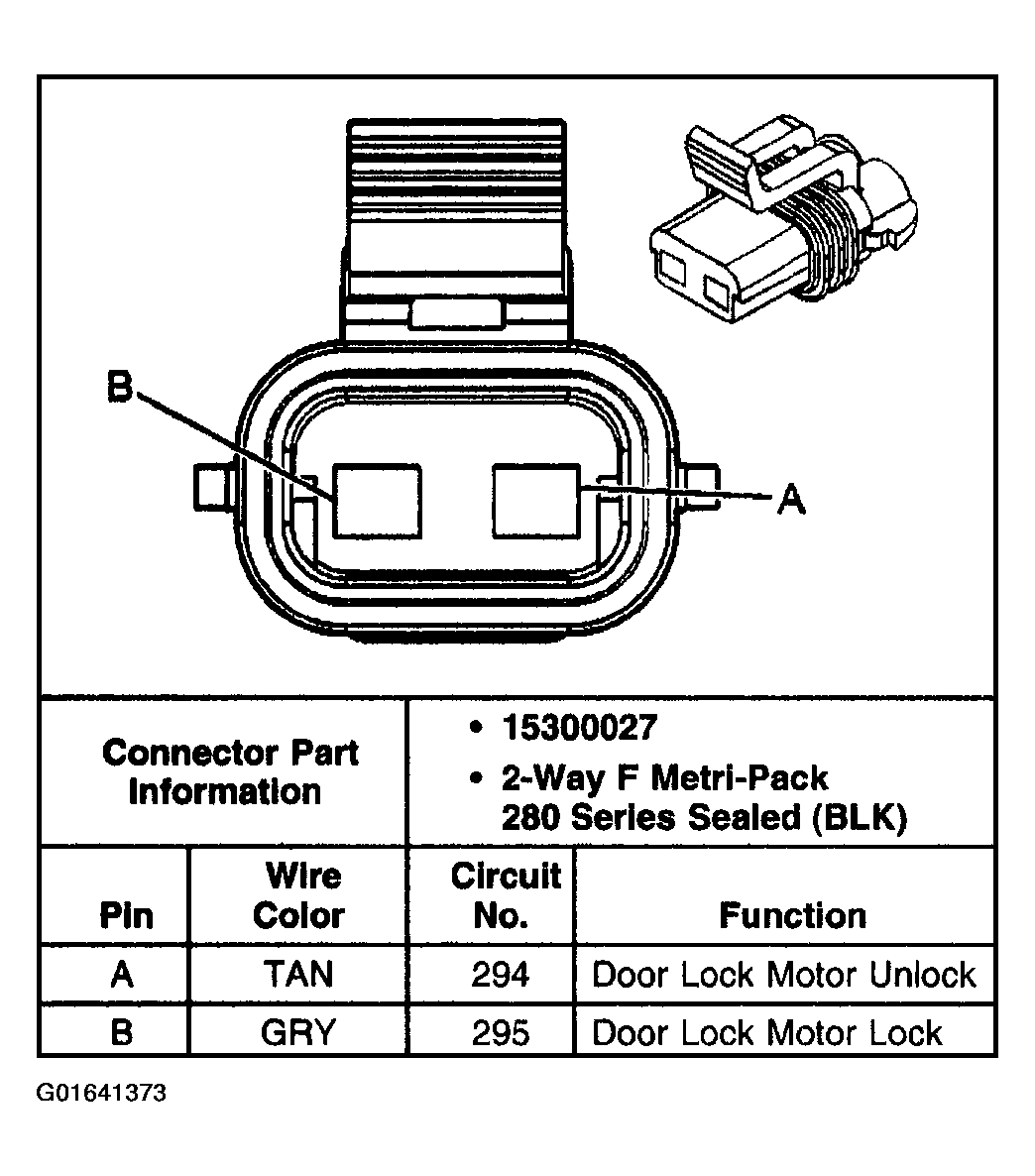

Fig 1: Front Passenger Door Lock Actuator Connector End View

G01641373

Courtesy of GENERAL MOTORS CORP.
