Driver Window Motor Connector End View

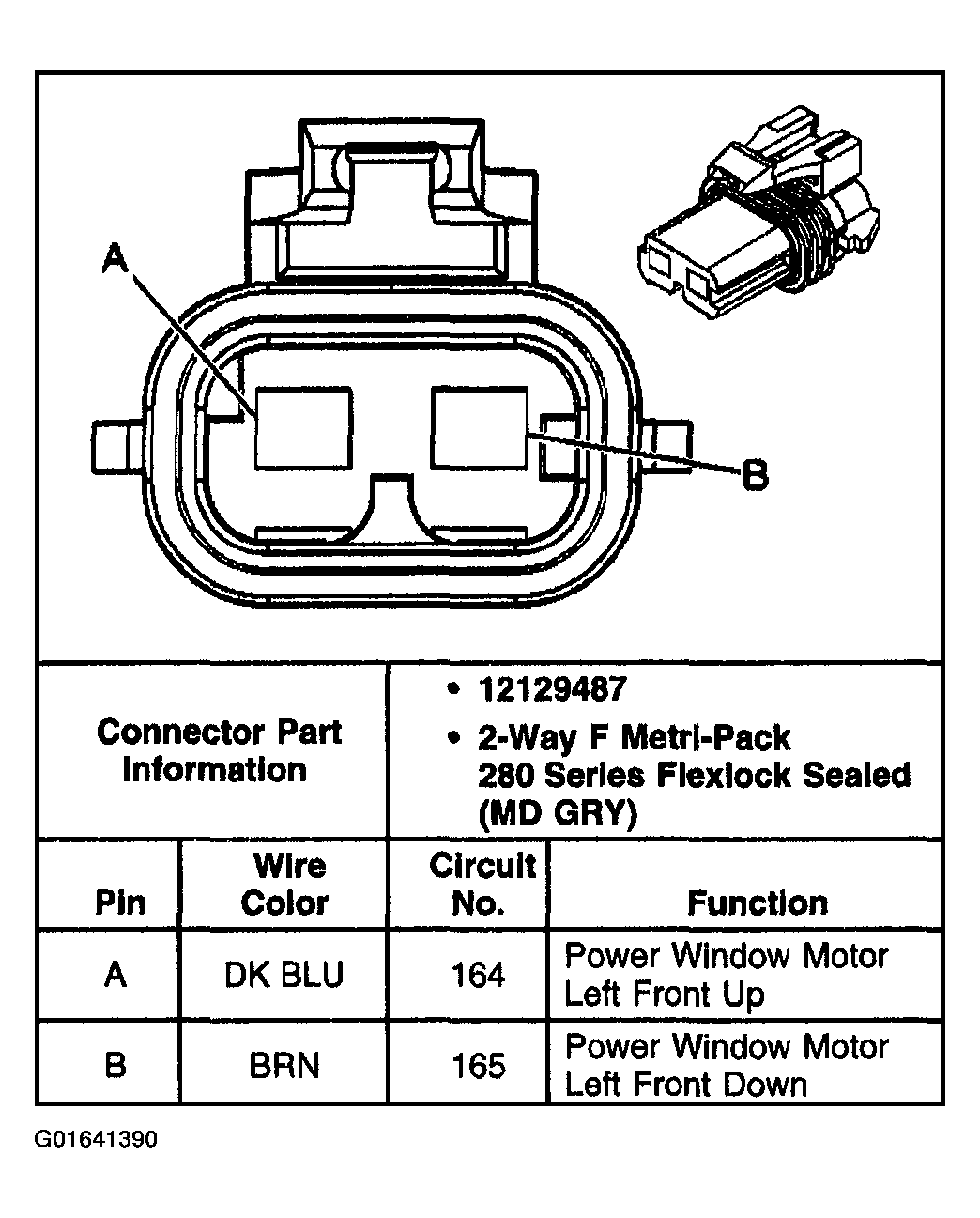

Fig 1: Driver Window Motor Connector End View

G01641390

Courtesy of GENERAL MOTORS CORP.
