Ambient Air Temperature Sensor Connector End View

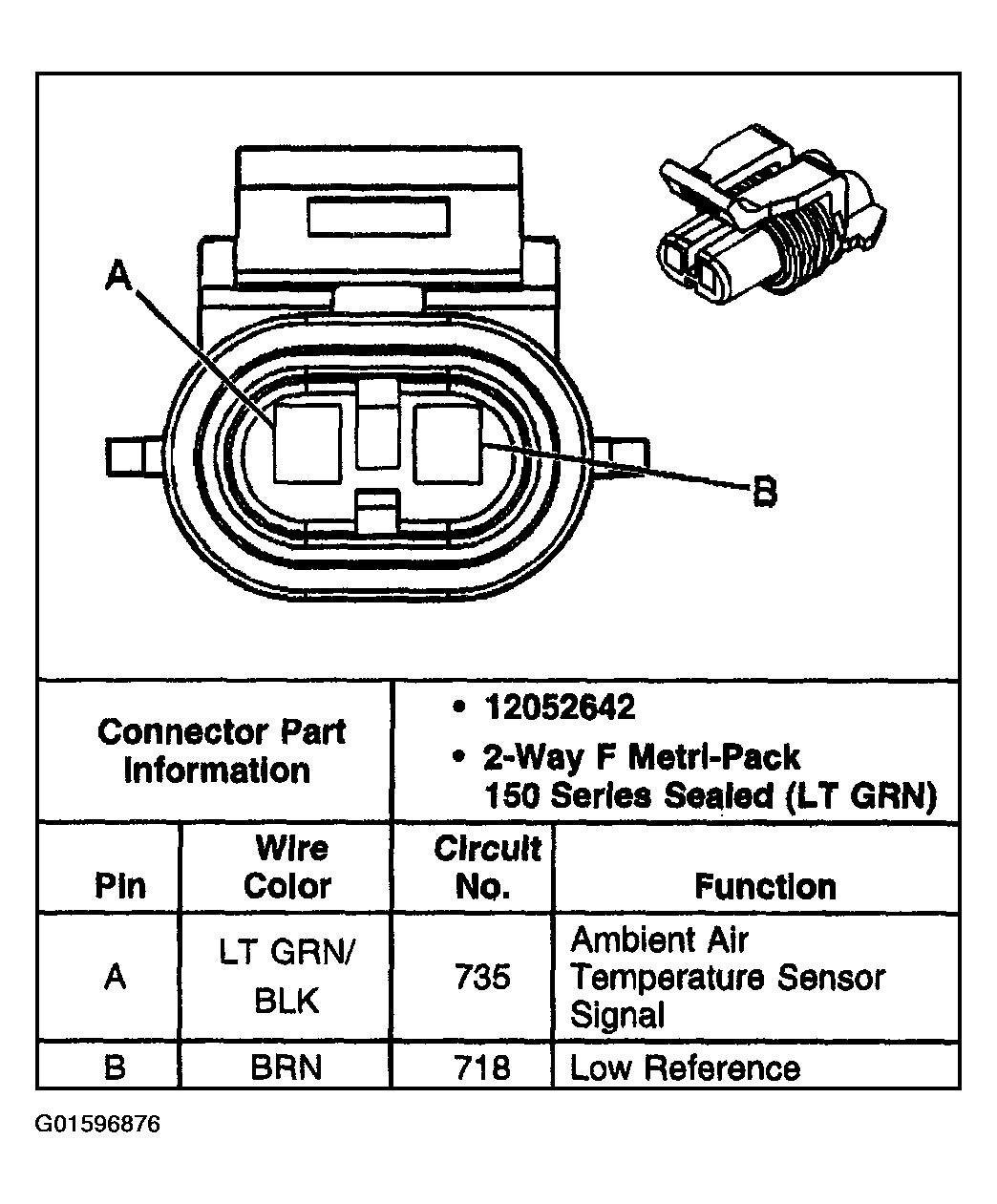

Fig 1: Ambient Air Temperature Sensor Connector End View
G01596876Courtesy of GENERAL MOTORS CORP.


Fig 1: Ambient Air Temperature Sensor Connector End View
G01641169Courtesy of GENERAL MOTORS CORP.
