Air Temperature Actuator Connector End View - Left

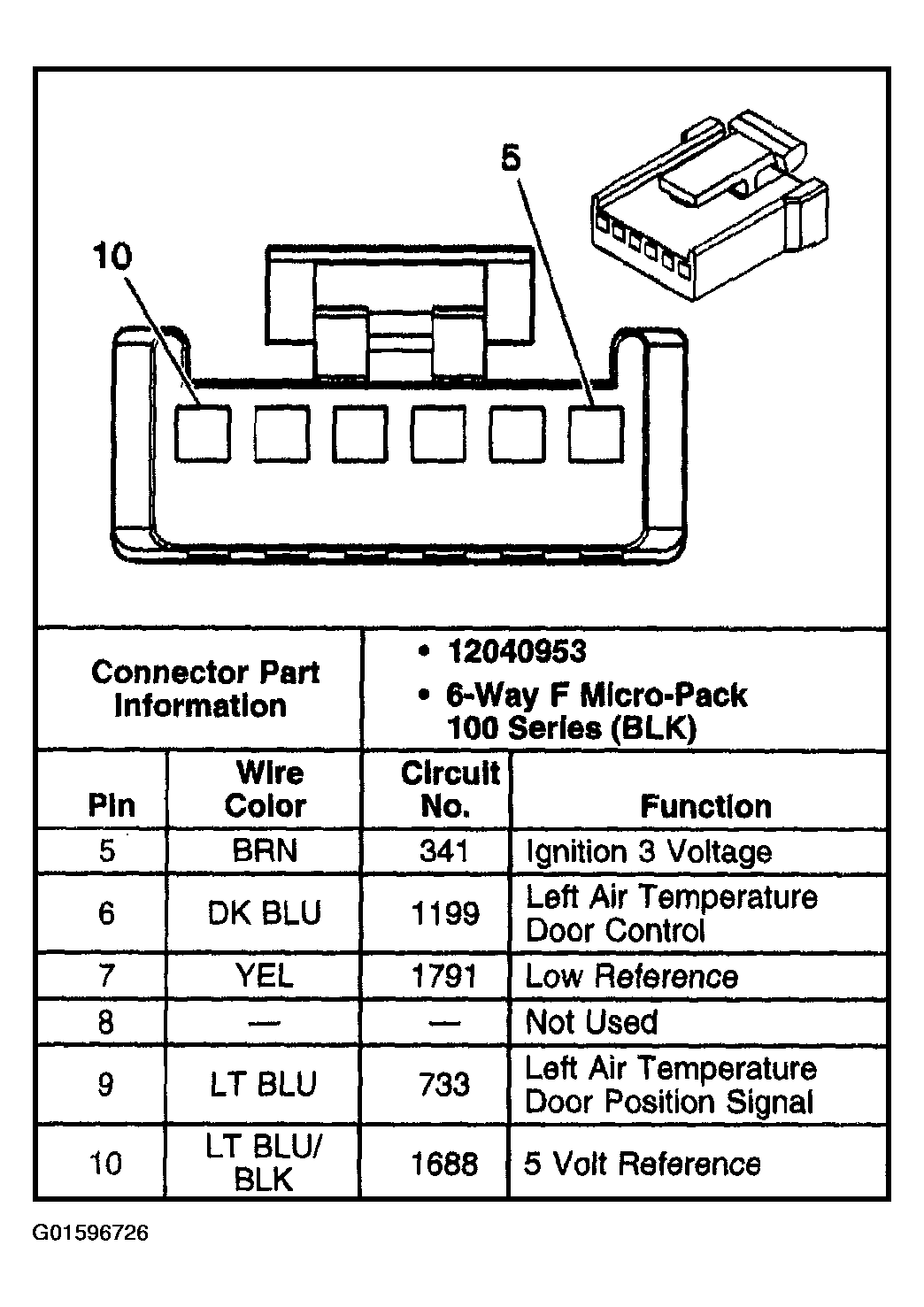

Fig 1: Air Temperature Actuator Connector End View - Left
G01596726Courtesy of GENERAL MOTORS CORP.

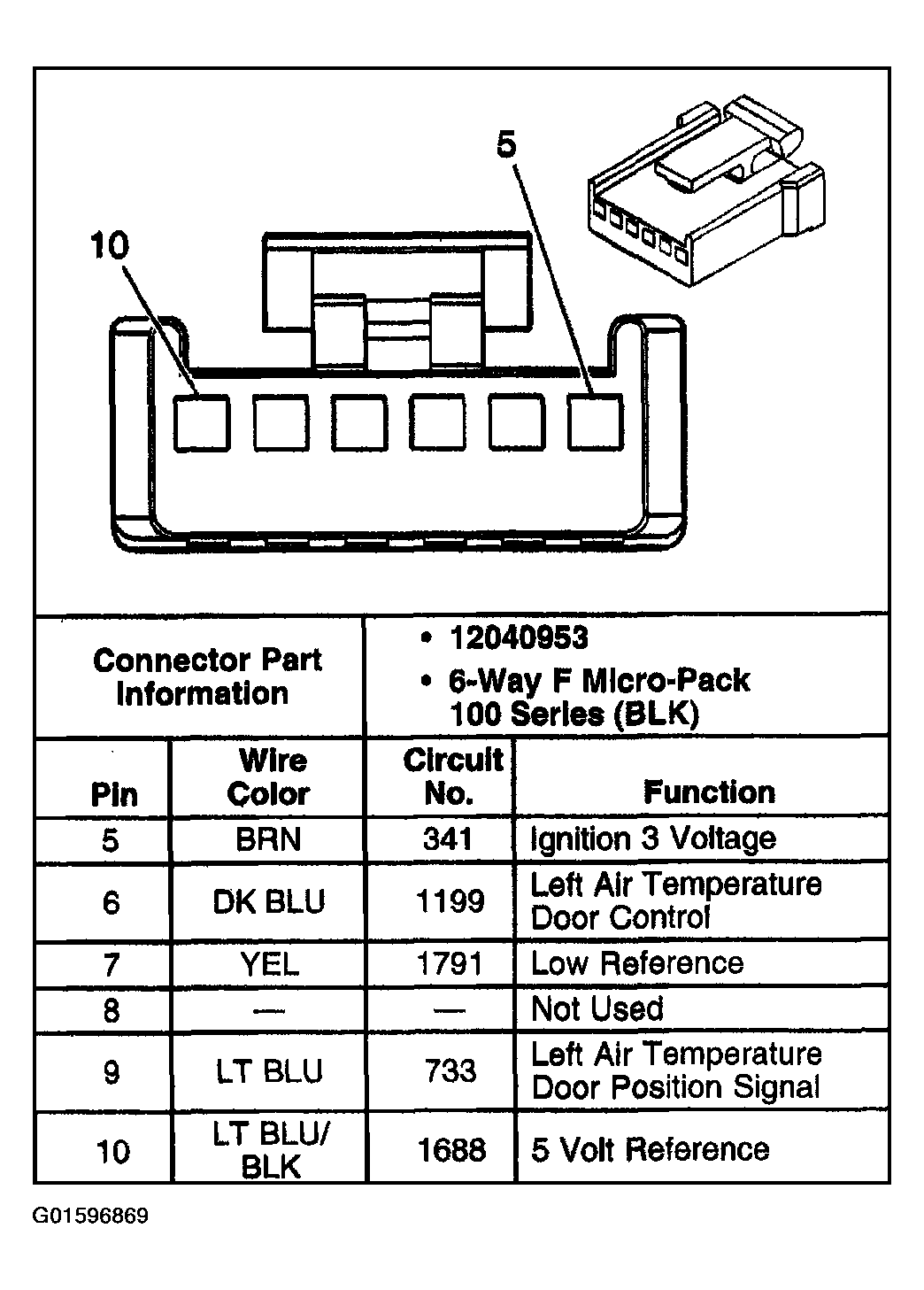

Fig 1: Air Temperature Actuator Connector End View - Left
G01596869Courtesy of GENERAL MOTORS CORP.
