Air Suspension Sensor Connector End View - RR

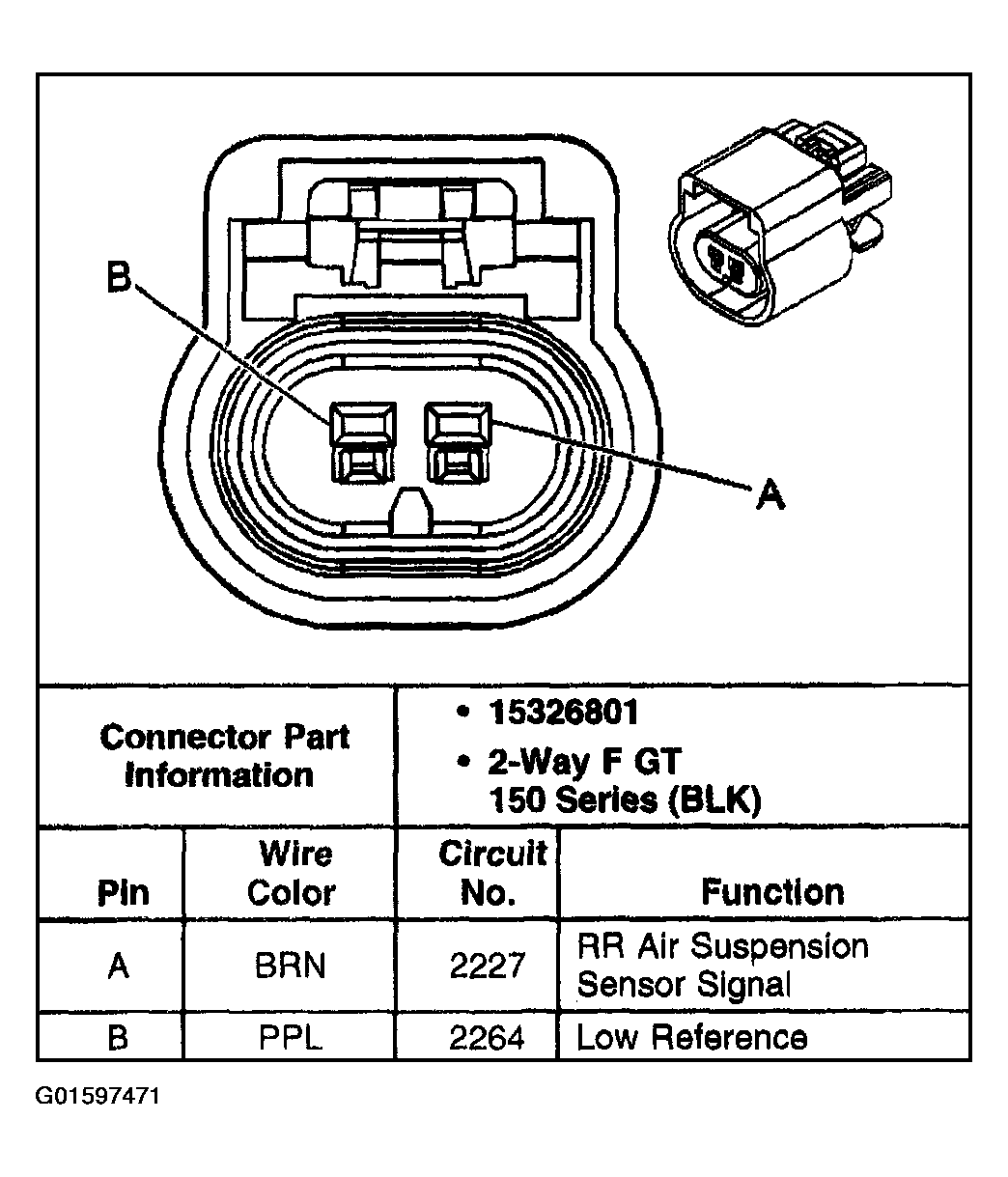

Fig 1: Air Suspension Sensor Connector End View - RR

G01597471

Courtesy of GENERAL MOTORS CORP.
