A/C Compressor Clutch Assembly Connector End View

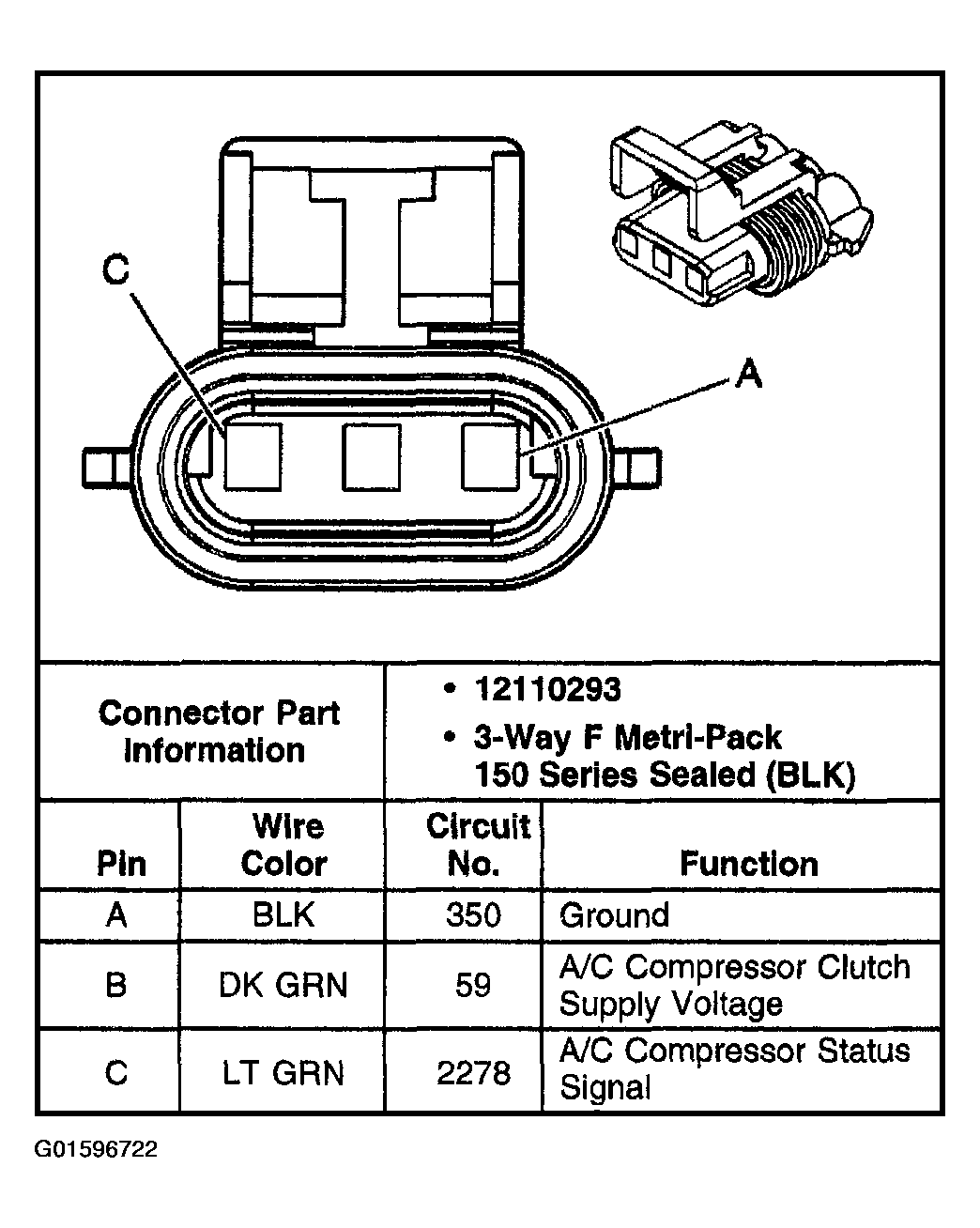

Fig 1: A/C Compressor Clutch Assembly Connector End View
G01596722Courtesy of GENERAL MOTORS CORP.

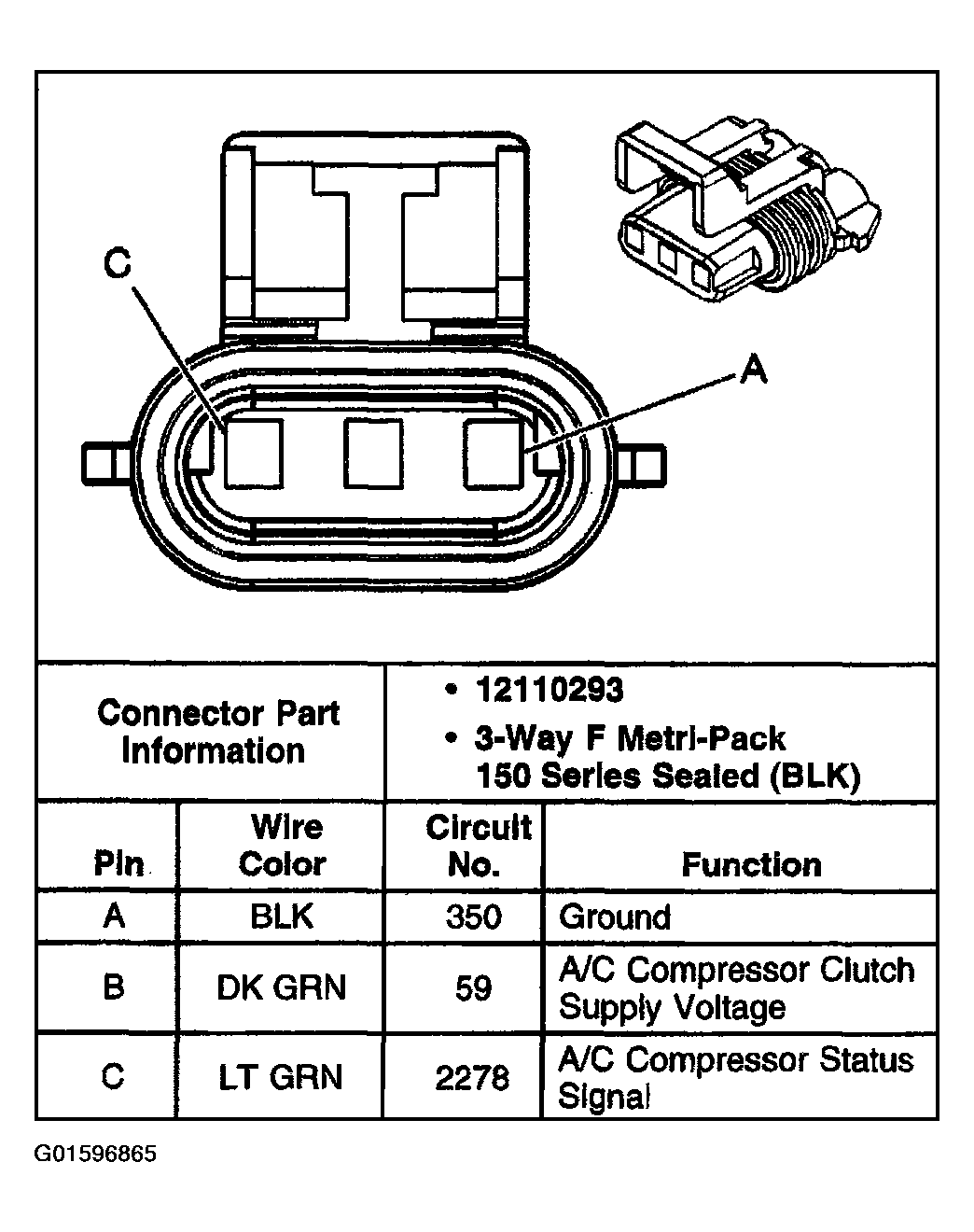

Fig 1: A/C Compressor Clutch Assembly Connector End View
G01596865Courtesy of GENERAL MOTORS CORP.
