Connector Identification

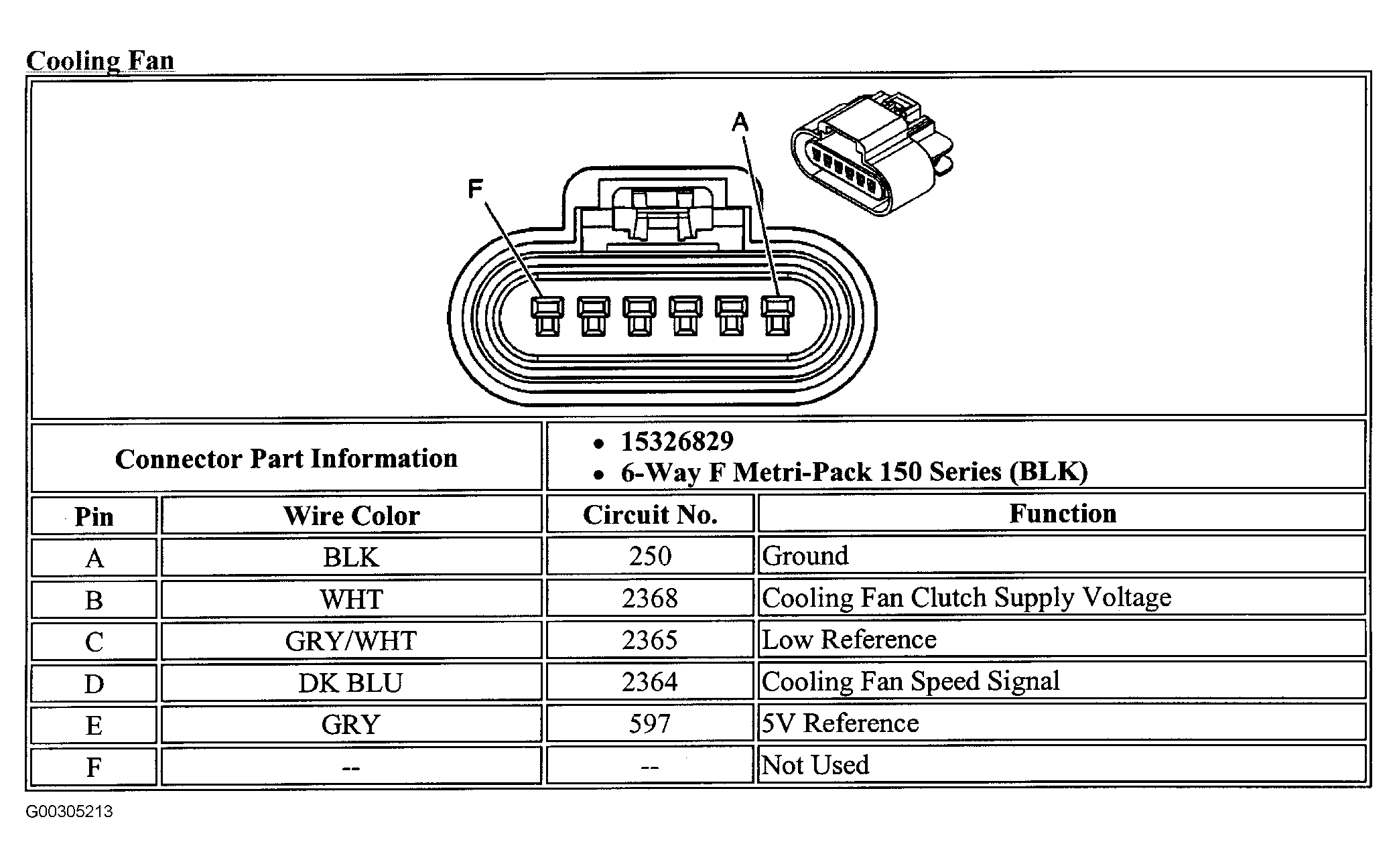

Fig 1: Identifying Cooling Fan Clutch Connector

G00305213

Courtesy of GENERAL MOTORS CORP.
