Removal Procedure

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Suspension.
Remove the brake rotor. Refer to BRAKE ROTORS in Disc & Drum.

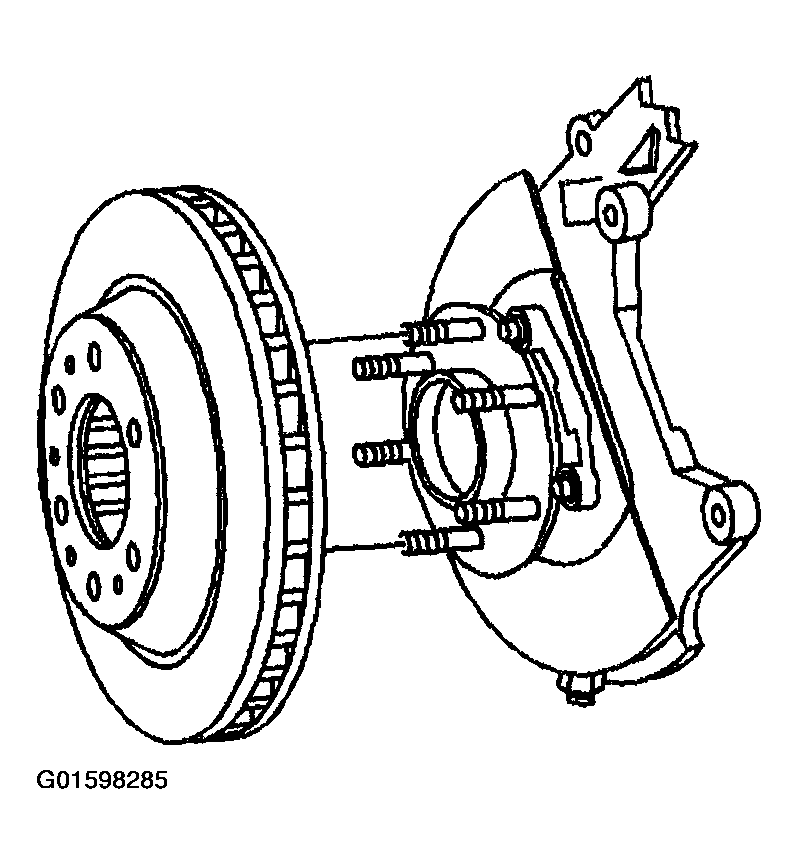

Fig 1: Removing Brake Rotor
Courtesy of GENERAL MOTORS CORP.
Remove wheel speed sensor wiring harness the retainers.

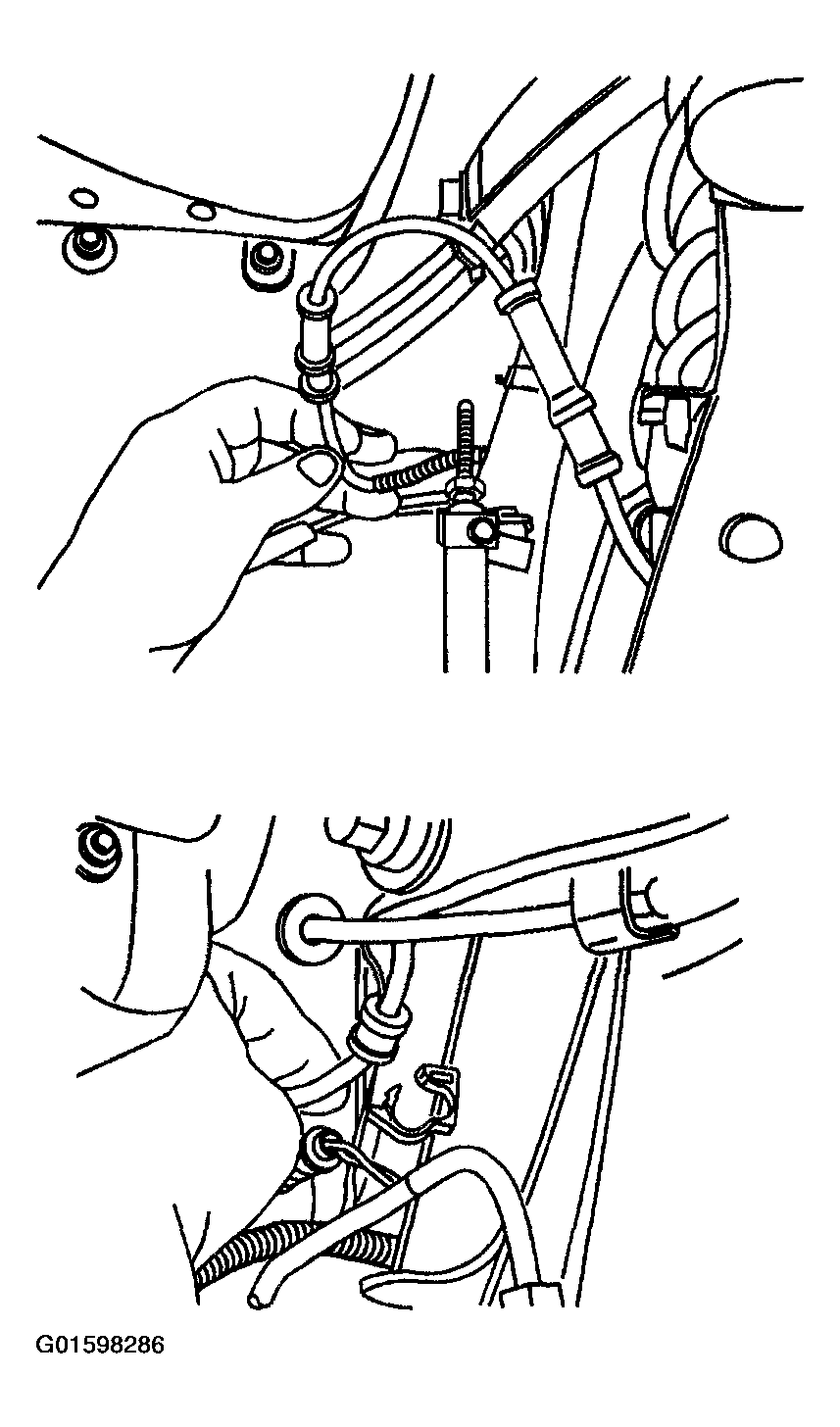

Fig 2: Removing Wheel Speed Sensor Wiring Harness
Courtesy of GENERAL MOTORS CORP.
Disconnect the wheel speed sensor electrical connector.

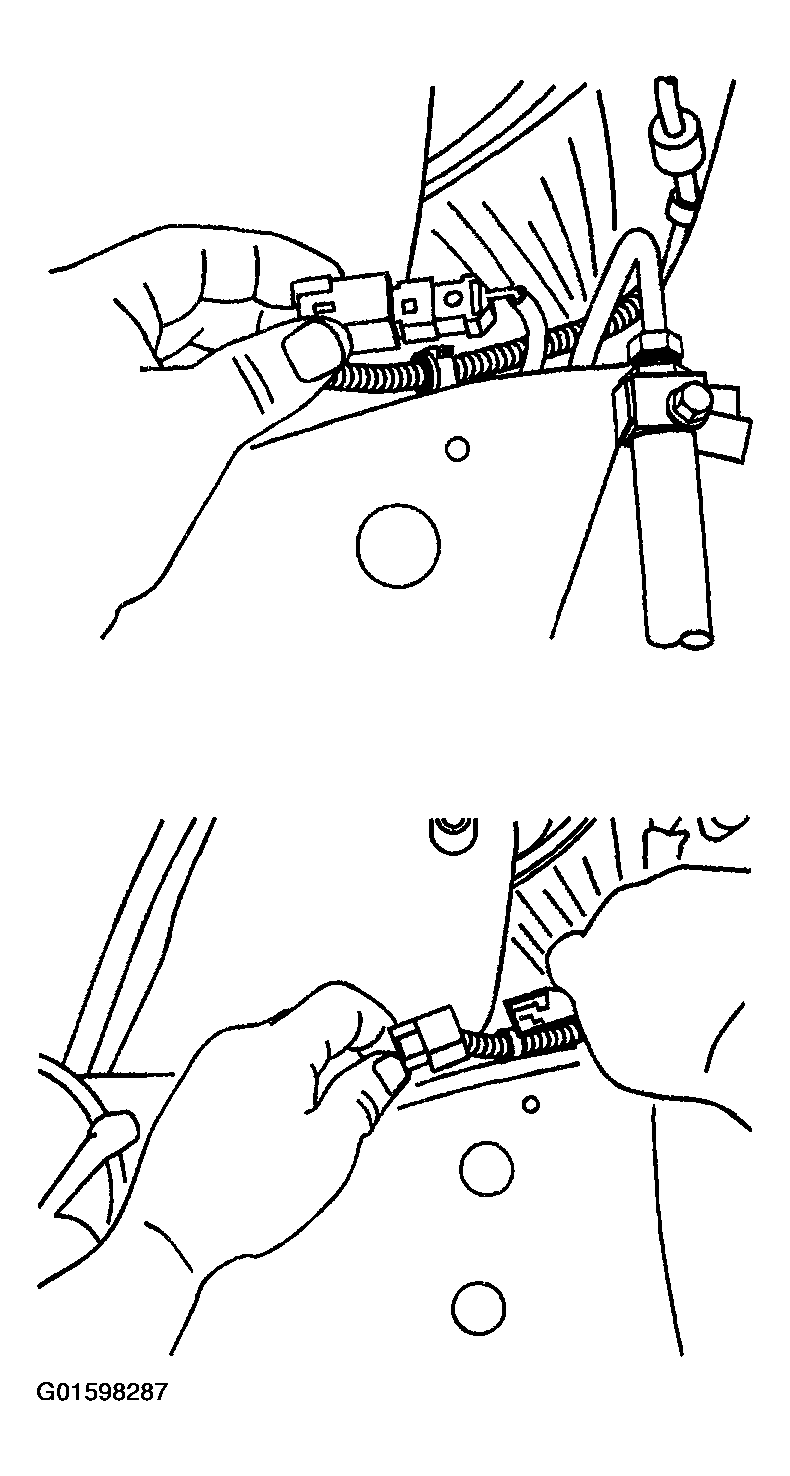

Fig 3: Disconnecting Wheel Speed Sensor Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Remove the sensor mounting screw.

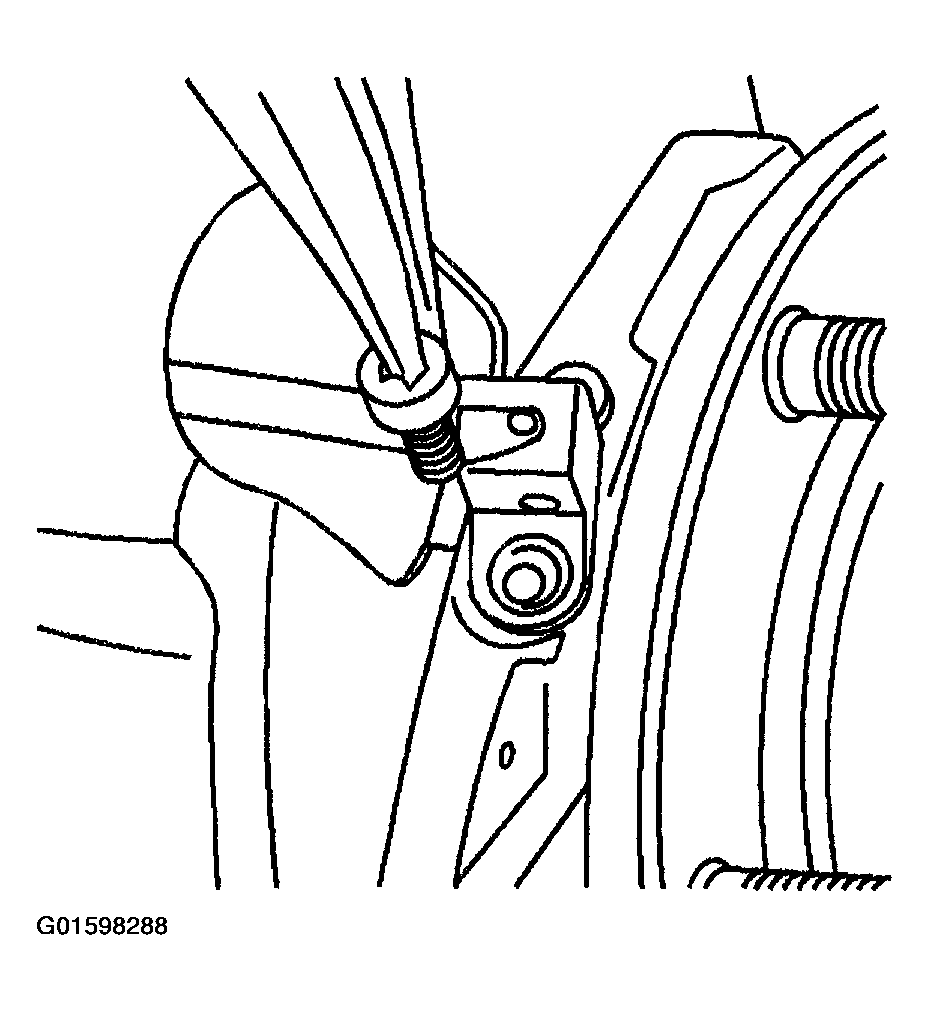

Fig 4: Removing Sensor Mounting Screw
Courtesy of GENERAL MOTORS CORP.

NOTE: Carefully remove the sensor by pulling it straight out of the bore. DO NOT use a screwdriver, or other device. Prying will cause the sensor body to break off in the bore.

NOTE: Do not attempt to remove the stainless steel shim from the bearing assembly. The shim is permanently attached. If the shim is damaged or bent, replace the bearing assembly. Failure to comply will result in diminished sensor and ABS performance.

IMPORTANT: The wheel speed sensor mounts into a bore that leads to the center of the sealed bearing. Use caution when cleaning or working around the bore. Do not contaminate the lubricant inside the sealed bearing. Failure to do so can lead to premature bearing failure.
Remove wheel speed sensor from hub and bearing assembly.

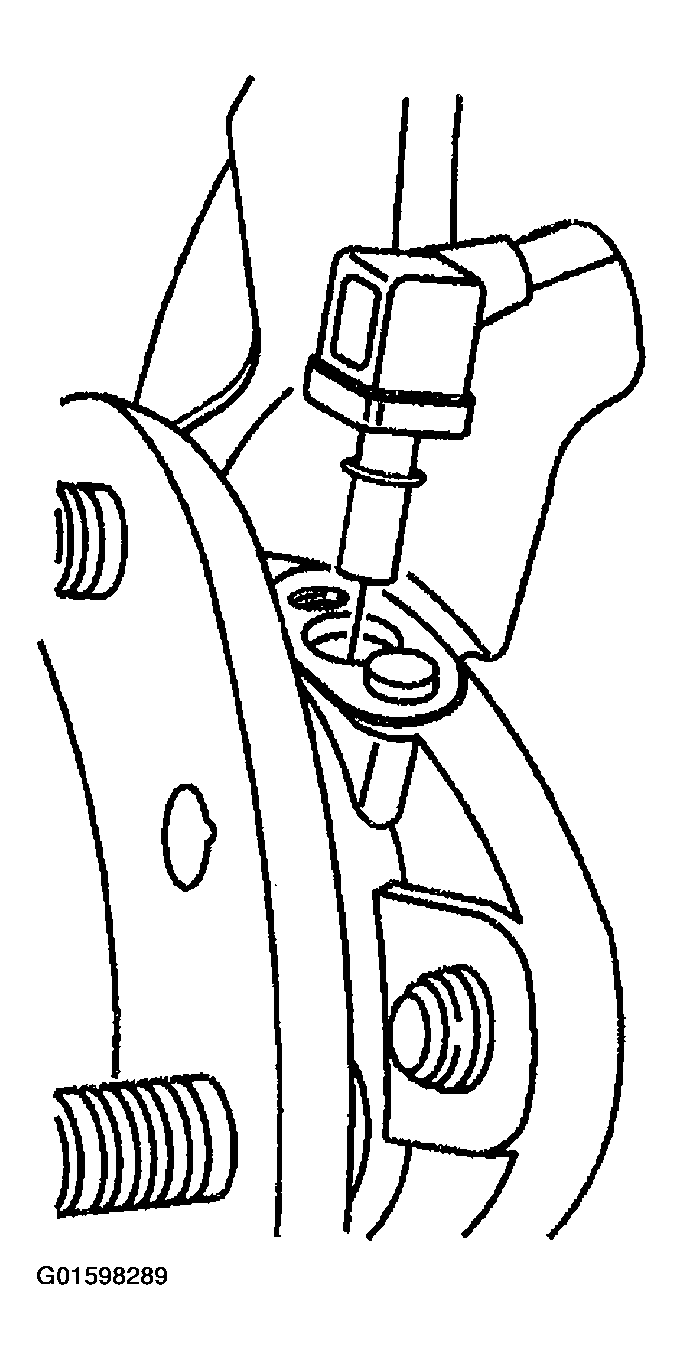

Fig 5: Removing Wheel Speed Sensor
Courtesy of GENERAL MOTORS CORP.
