ABS Connector End Views

Fig 1: Electronic Brake Control Module Connector (EBCM) C1 Connector End View
G01598227Courtesy of GENERAL MOTORS CORP.
Fig 2: Electronic Brake Control Module Connector (EBCM) C2 Connector End View (1 Of 2)
G01598228Courtesy of GENERAL MOTORS CORP.
Fig 3: Electronic Brake Control Module Connector (EBCM) C2 Connector End View (2 Of 2)
G01598229Courtesy of GENERAL MOTORS CORP.
Fig 4: Inverting Driver Module Connector End View (Olds)
G01598230Courtesy of GENERAL MOTORS CORP.

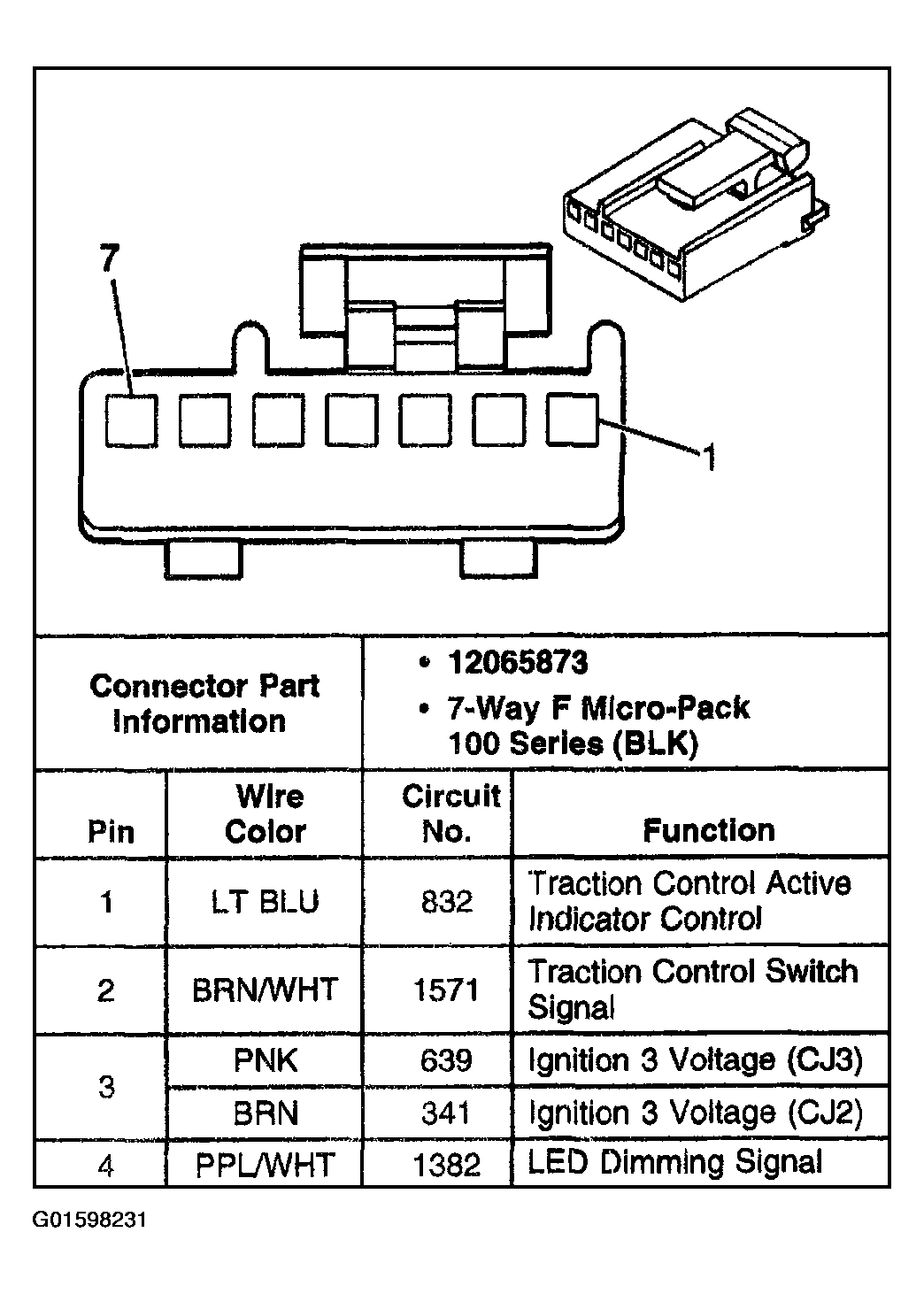

Fig 5: Traction Control Switch Connector End View (Chevy/GMC) (1 Of 2)
G01598231Courtesy of GENERAL MOTORS CORP.
Fig 6: Traction Control Switch Connector End View (Chevy/GMC) (2 Of 2)
G01598232Courtesy of GENERAL MOTORS CORP.

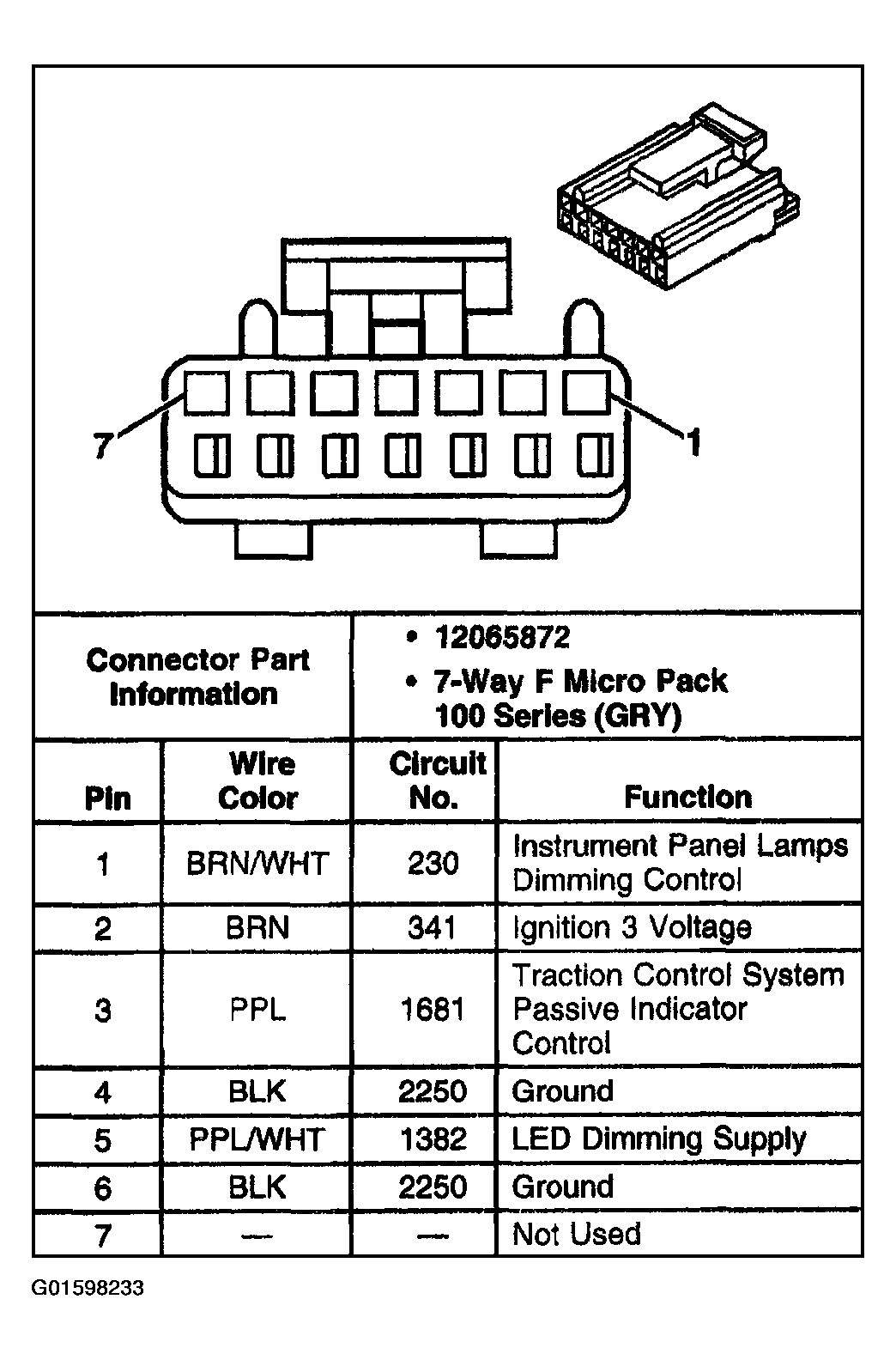

Fig 7: Traction Control Switch Connector End View (Olds)
G01598233Courtesy of GENERAL MOTORS CORP.

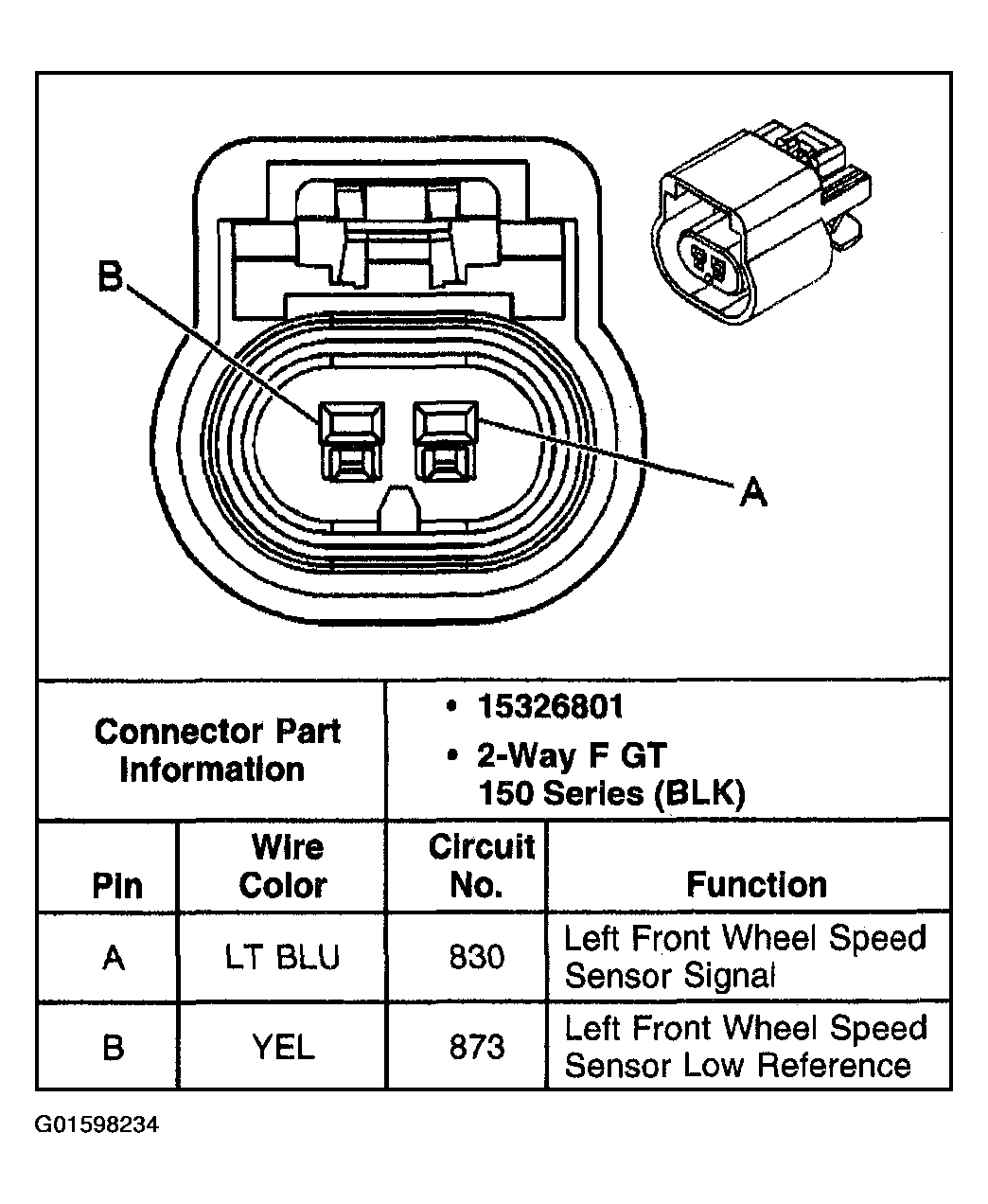

Fig 8: Wheel Speed Sensor - LF Connector End View
G01598234Courtesy of GENERAL MOTORS CORP.

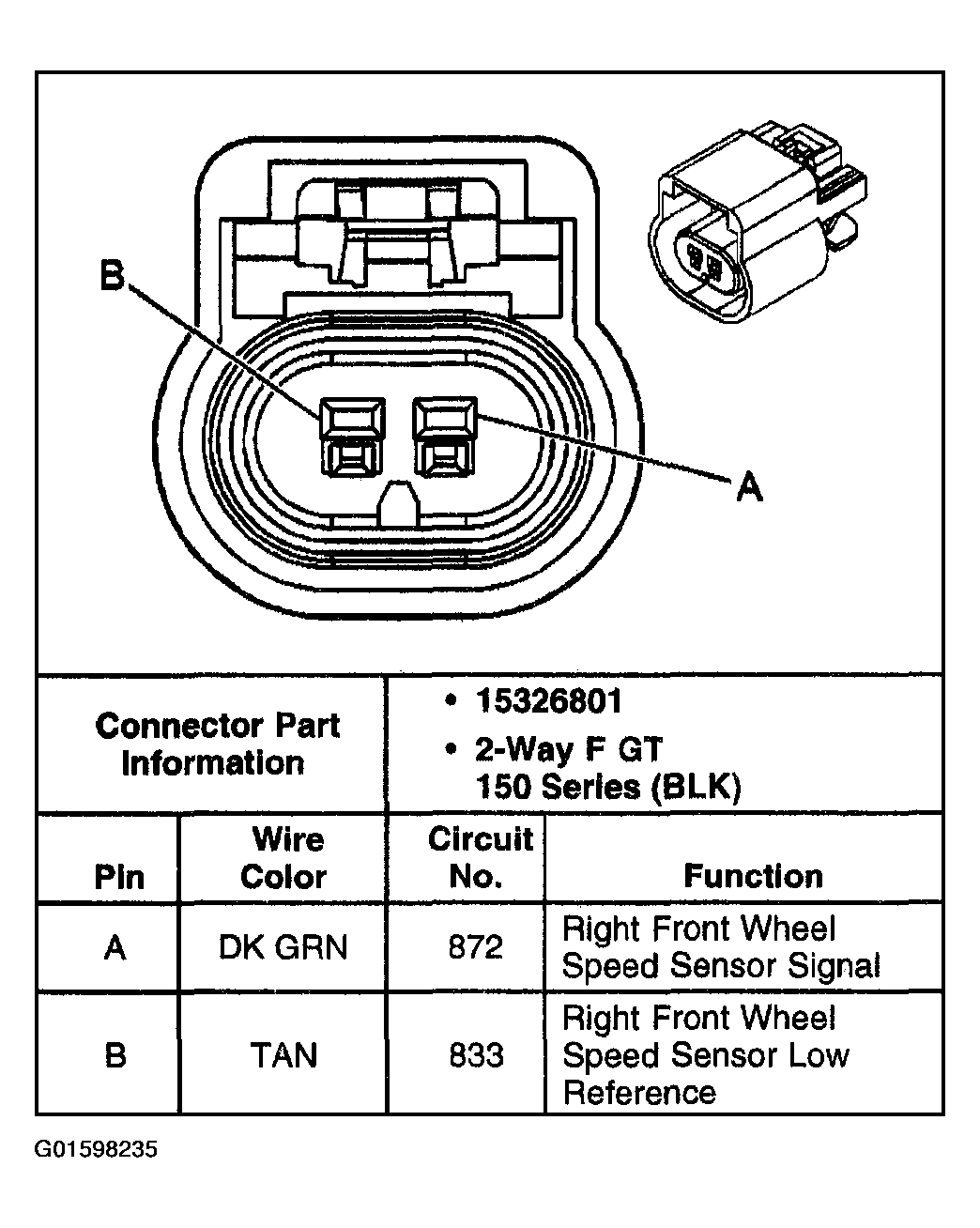

Fig 9: Wheel Speed Sensor - RF Connector End View
G01598235Courtesy of GENERAL MOTORS CORP.
