Oldsmobile
>>
2003
>>
Bravada AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Stationary Window System
>>
Component Locator
>>
Stationary Windows Connector End Views
>>
Rear Window Defogger C1
Rear Window Defogger C1

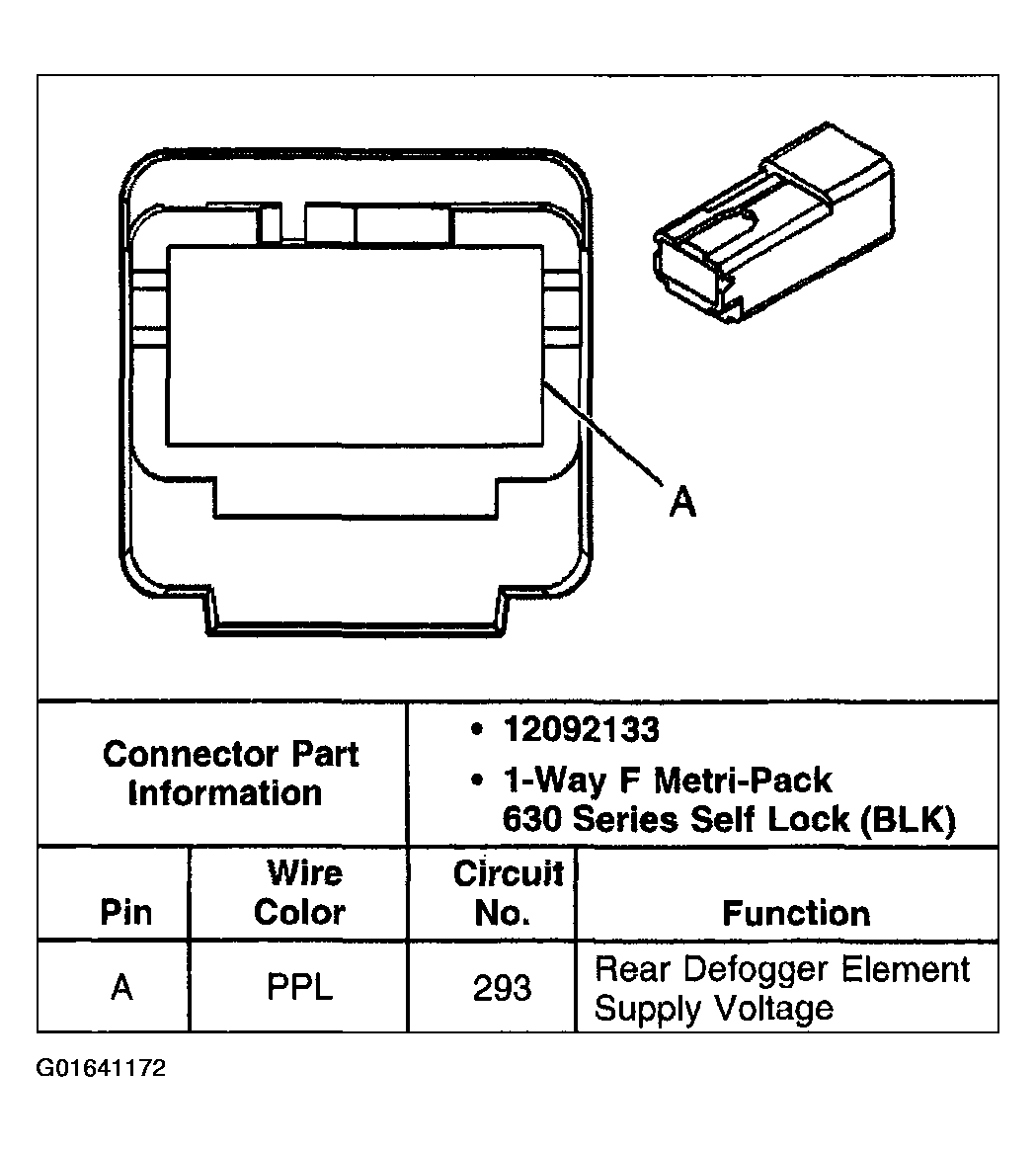

Fig 1: Identifying Rear Window Defogger C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
