Installation Procedure

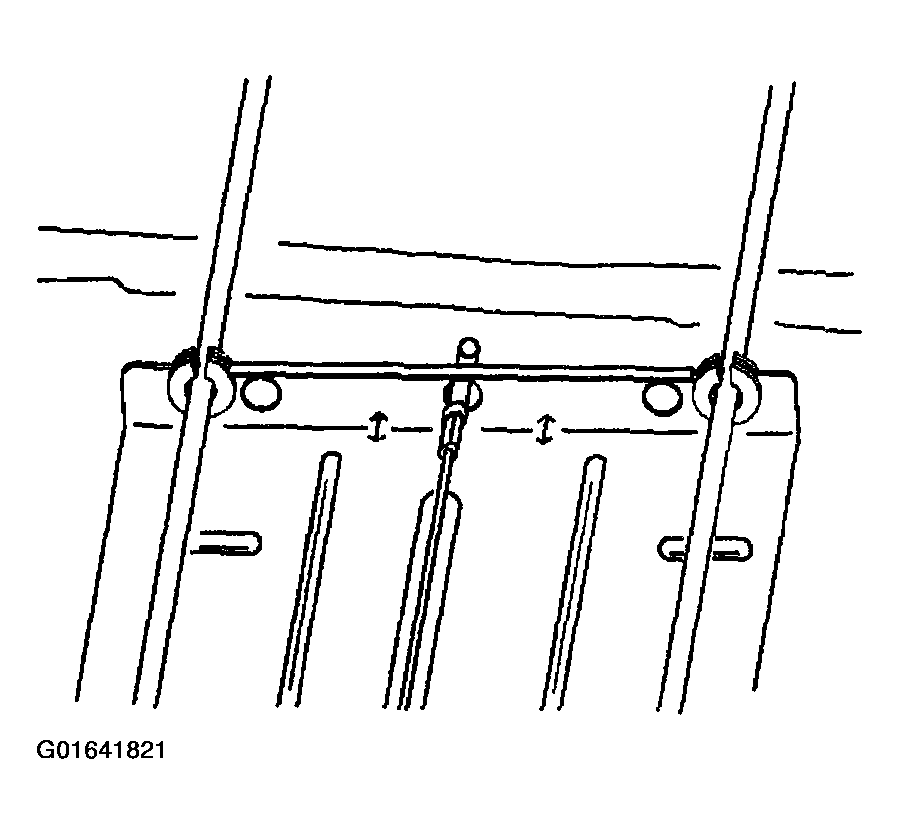

Hook the cable end into the lumbar mechanism.

Fig 1: Cable End Of Lumbar Mechanism
Courtesy of GENERAL MOTORS CORP.

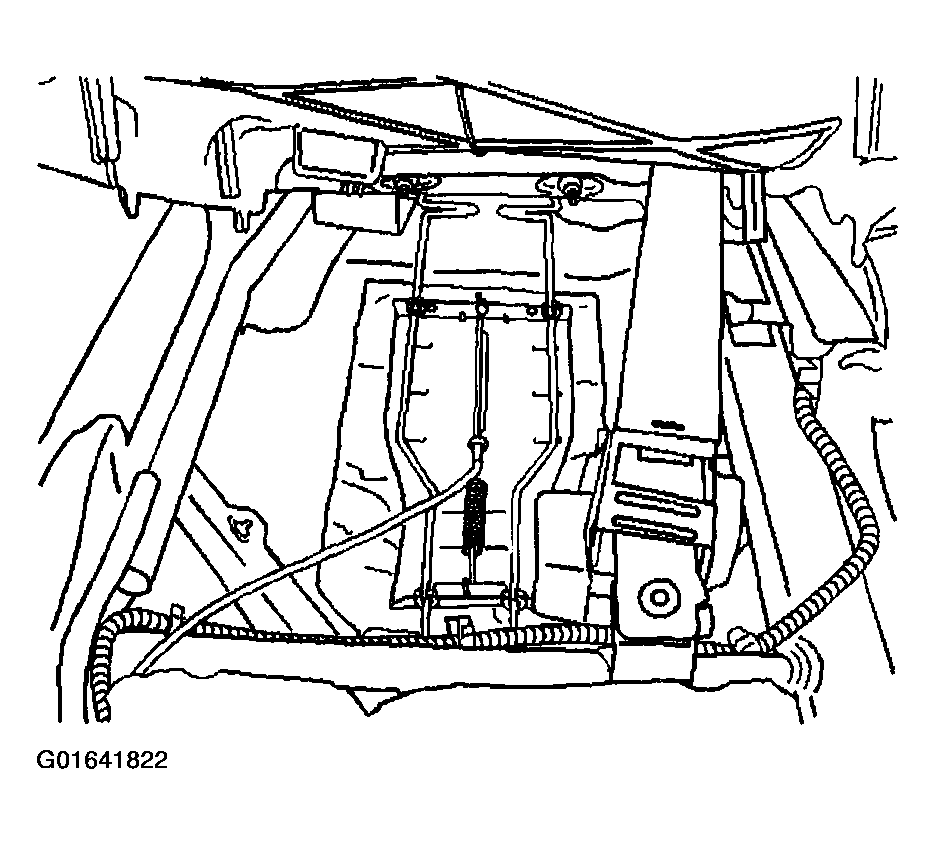

Install the cable to the lumbar spring.

Fig 2: Cable To Lumbar Spring
Courtesy of GENERAL MOTORS CORP.

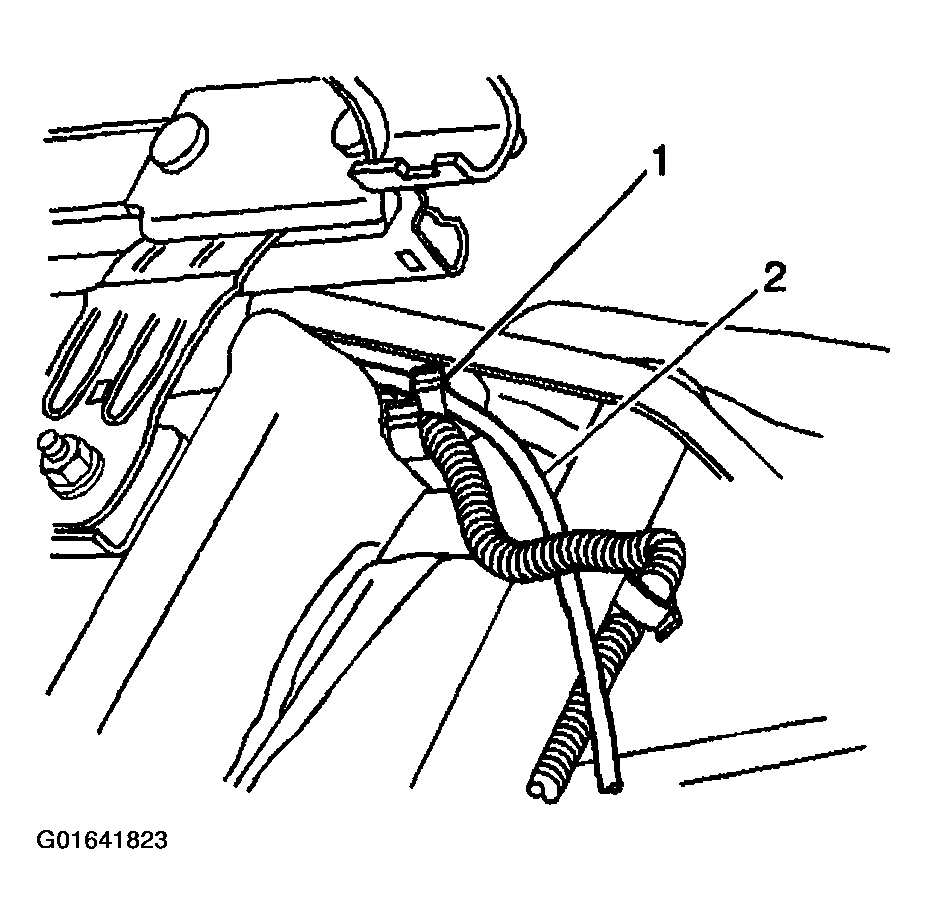

Install the lumbar cable (2) in the cable clip (1) located on the lower seat back.

Fig 3: Lumbar Cable In Cable Clip
Courtesy of GENERAL MOTORS CORP.

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

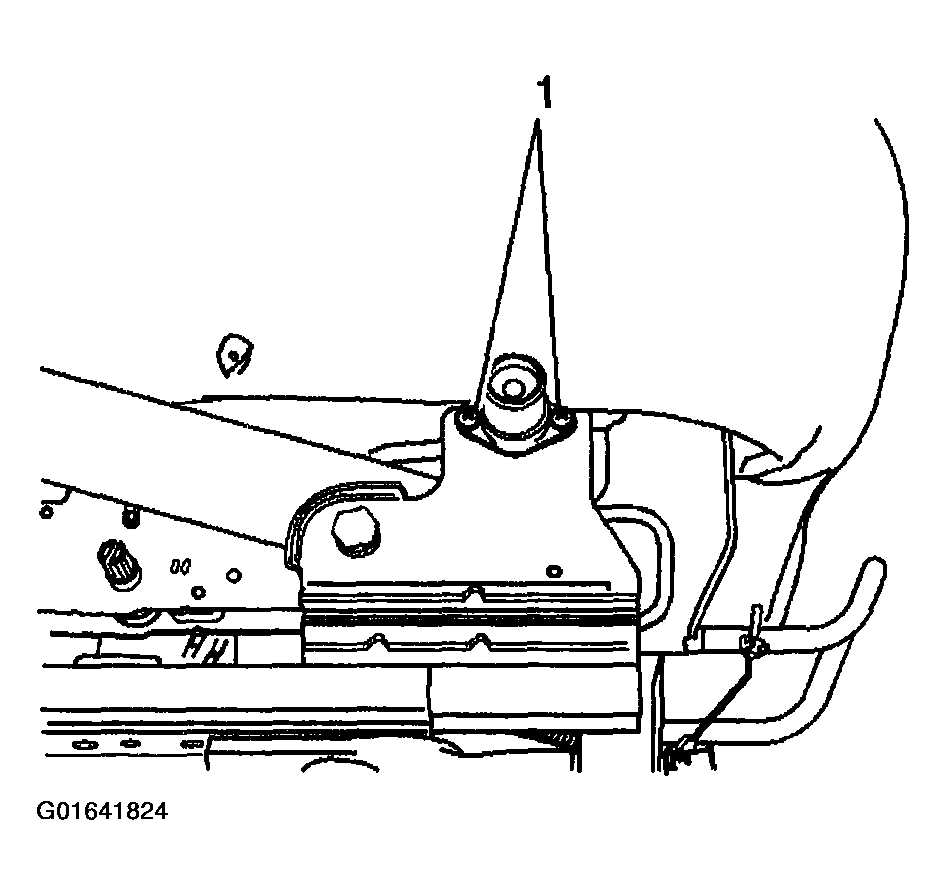

Install 2 screws (1) securing the cable to the seat adjuster.
Tighten

Tighten the lumbar cable screws to 6 N.m (53 lb in).

Fig 4: 2 Screws

Courtesy of GENERAL MOTORS CORP.

Install the seat back cover and pad. Refer to SEAT BACK COVER AND PAD REPLACEMENT - FRONT .
Install the seat trim panel. Refer to SEAT CUSHION OUTER TRIM PANEL REPLACEMENT .
Install the seat assembly to the vehicle. Refer to SEAT REPLACEMENT - FRONT BUCKET .
