Transfer Case Encoder Motor

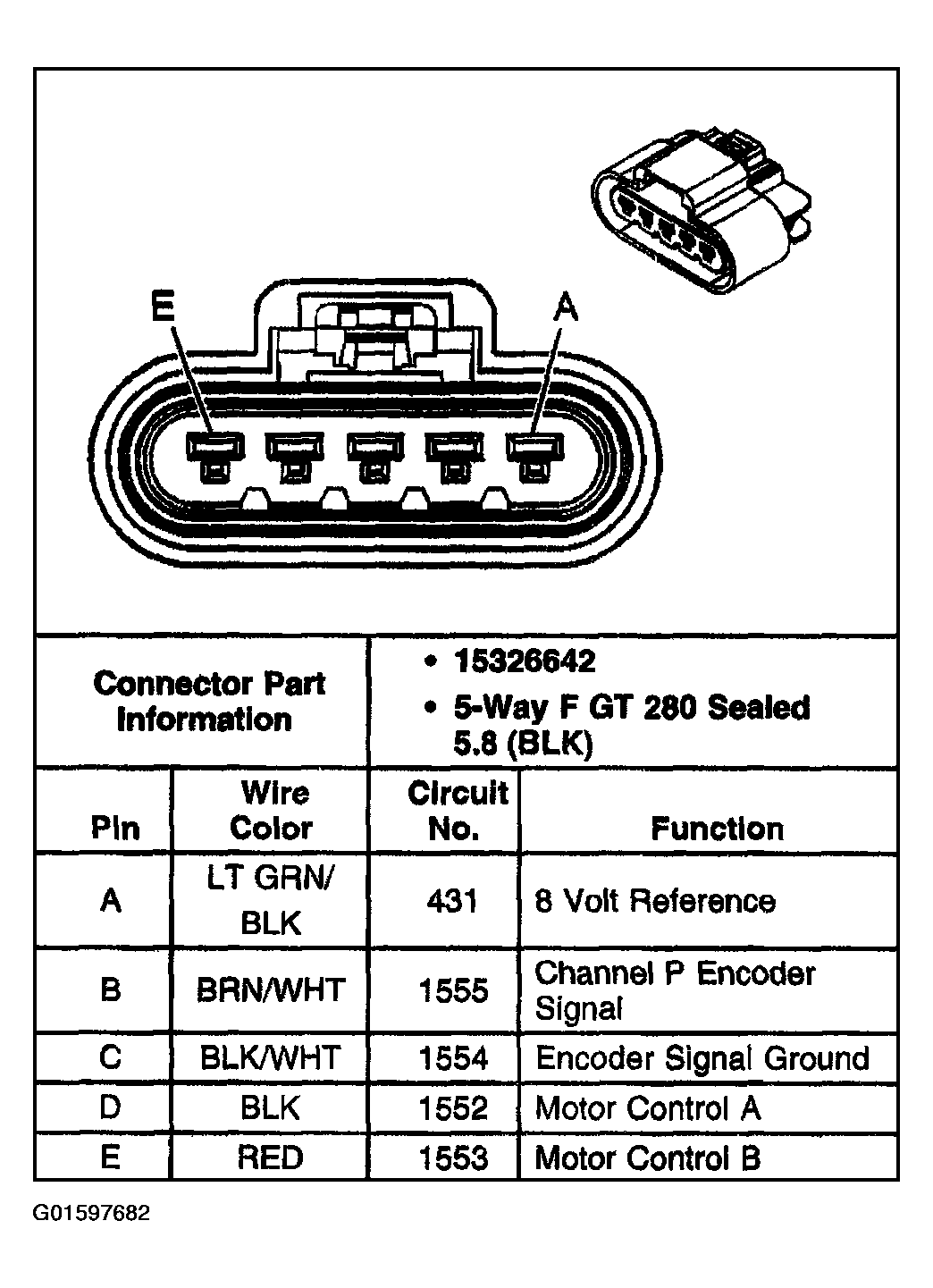

Fig 1: Identifying Transfer Case Encoder Motor Connector

G01597682

Courtesy of GENERAL MOTORS CORP.
