Turn Signal/Multifunction Switch Connector End View C3

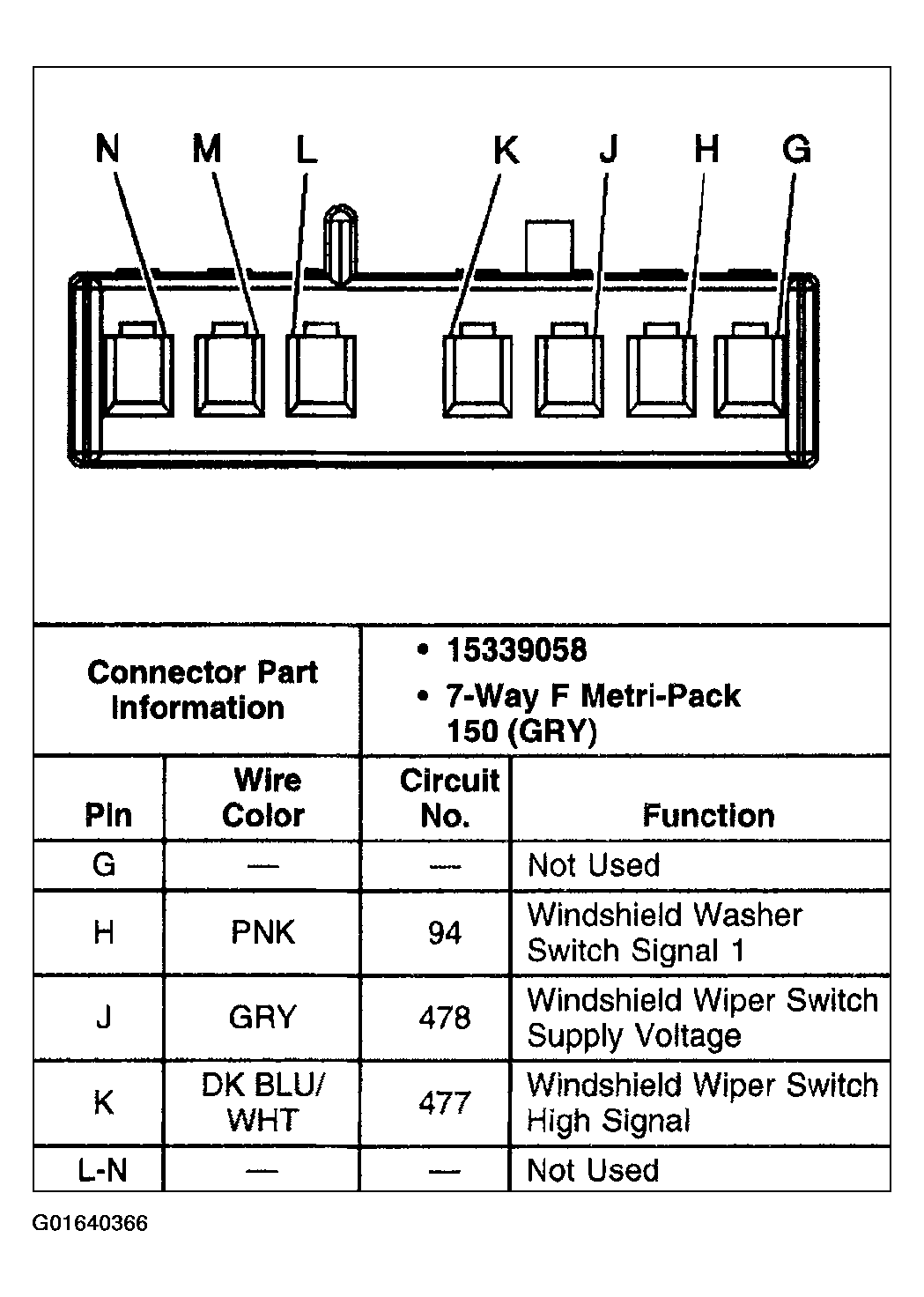

Fig 1: Turn Signal/Multifunction Switch Connector End View C3

G01640366

Courtesy of GENERAL MOTORS CORP.
