Turn Signal/Multifunction Switch Connector End View C1 (2 Of 2)

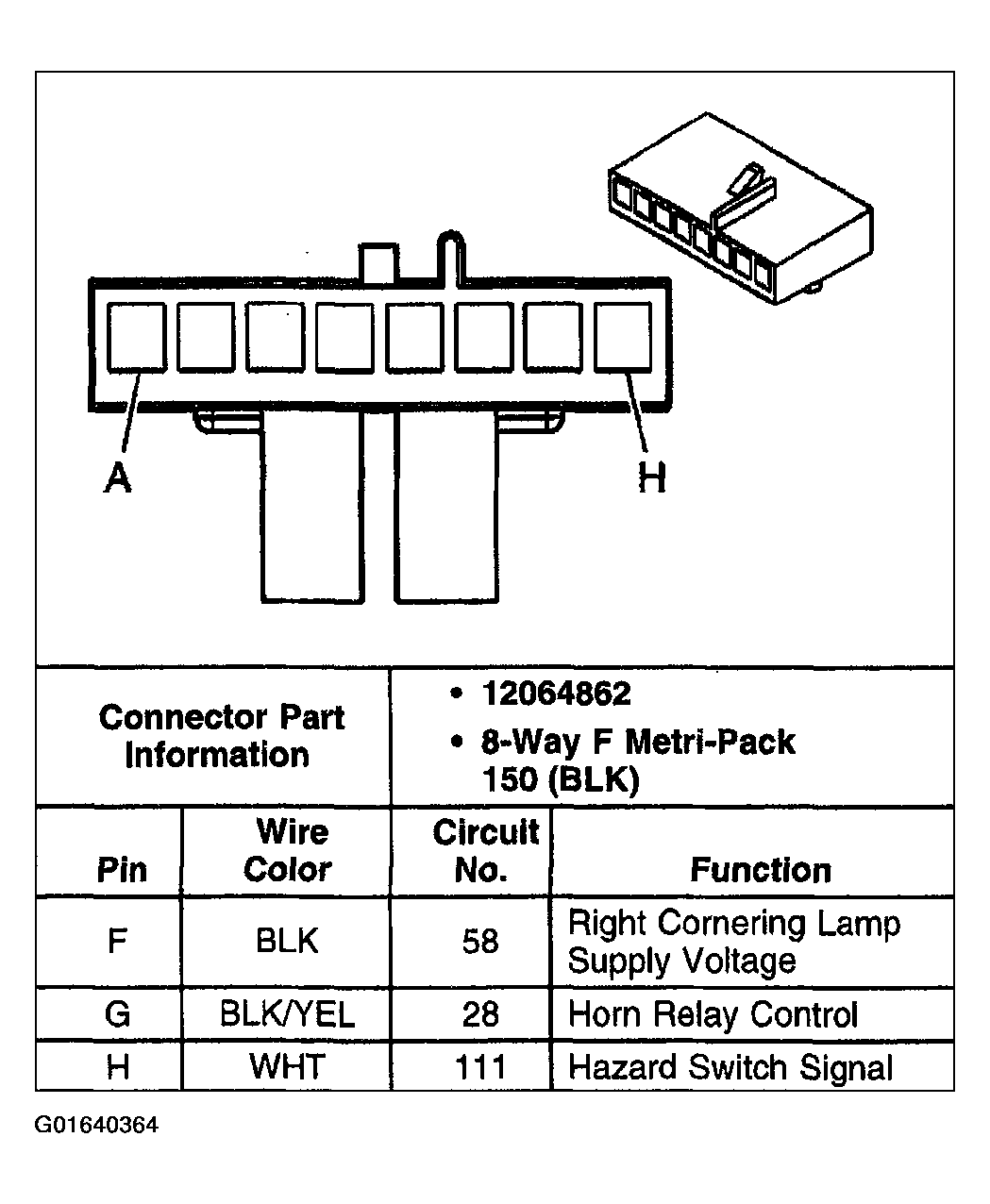

Fig 1: Turn Signal/Multifunction Switch Connector End View C1 (2 Of 2)

G01640364

Courtesy of GENERAL MOTORS CORP.
